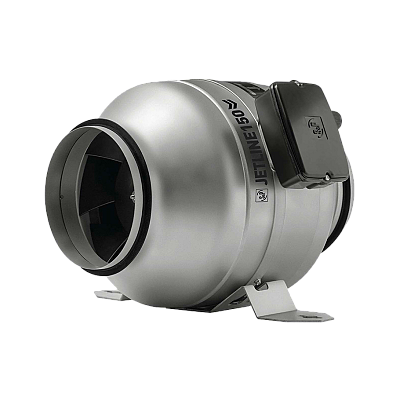

The Jetline is a high-performance, compact in-line fan that features silent-block motor mounting to minimize vibrations and reduce operational noise. It utilizes a quick-fit mounting bracket for easy installation and is versatile enough for any mounting position. The range includes six models that accommodate standard duct sizes from 100 to 315mm in diameter.
Features:
High-performance, patented centrifugal impeller.
Optimized impeller, guide vane, and outlet diffuser for quiet operation.
Designed for direct connection to standard diameter circular ducting.
Low-profile, durable outer casing made from galvanized sheet steel.
Sturdy galvanized steel quick-fit mounting bracket for fast installation.
Can be installed in any position.
Comes with a plug and lead for straightforward installation.
Construction:
Outer housing and foot mount are constructed from pressed galvanized steel for robust durability.
Internal components, including the centrifugal impeller, are made from injection-molded plastic.
Motor:
Type: Single-speed, squirrel cage induction motor.
Power supply: 220-240V, single-phase, 50/60Hz for models 100-250; 220-240V, single-phase, 50Hz for model 315.
Bearings: Sealed-for-life ball bearings.
Speed control: Compatible with VA type speed controllers.
Insulation: Class F, IP44 rated.
Internal Protection:
Models 100-125 have fuse protection.
Models 150-315 include manual-reset thermal overload protection, in compliance with AS/NZS60335-2-80:2016 standards for in-duct fans.
