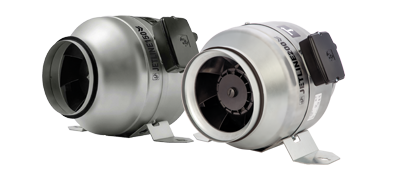

The Jetline is a high-efficiency, slim in-line fan designed to minimize noise and vibrations with its silent-block motor mounting. It features a quick-fit mounting bracket for easy and speedy installation and can be mounted in any orientation. The series includes six models that accommodate standard duct sizes ranging from 100 to 315mm in diameter.
Features:
High-performance patented centrifugal impeller.
Engineered impeller, guide vane, and outlet diffuser for quiet operation.
Designed for direct connection to standard circular ducting.
Compact, durable outer casing made from galvanized sheet steel.
Sturdy galvanized steel quick-fit bracket for rapid installation.
Mountable in any position.
Comes with plug and lead for straightforward installation.
Construction:
The outer housing and foot mount are crafted from pressed galvanized steel for robust durability.
Internal housing and patented centrifugal impeller are made from injection-molded plastic.
Motor:
Type: Single-speed squirrel cage induction motor.
Power supply: 220-240V, single-phase, 50/60Hz for models 100-250; 220-240V, single-phase 50Hz for model 315.
Bearings: Sealed-for-life ball bearings.
Speed control: Compatible with VA type speed controllers.
Insulation: Class F, IP44 rating.
Internal Protection:
Features a fuse for models 100-125, and a manual-reset thermal overload protection device for models 150-315, complying with AS/NZS60335-2-80:2016 standards for in-duct fans.
Additional information
| For Bulk Orders Please Call: | |
|---|---|
| Type | |
| Brand | |
| Supplier | Fantech |
