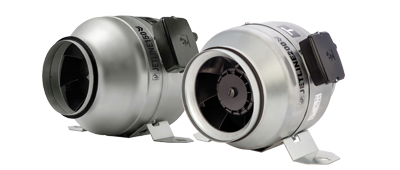

The Jetline is a high-efficiency, slim in-line fan designed with silent-block motor mounting to minimize vibrations and reduce noise levels. It features a quick-fit mounting bracket for easy installation and is versatile enough for any mounting orientation. The range includes six models compatible with standard duct sizes from 100 to 315mm.
Features:
High-performance patented centrifugal impeller.
Optimized impeller, guide vane, and outlet diffuser for quieter operation.
Designed for direct attachment to standard diameter circular ducting.
Slim, durable outer casing made from galvanized sheet steel.

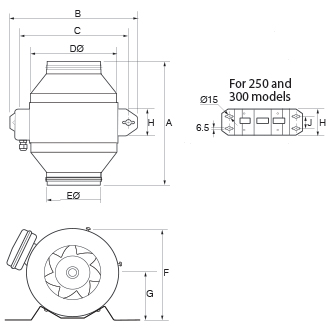

Sturdy galvanized steel quick-fit bracket for rapid installation.
Can be mounted in any orientation.
Comes with a plug and lead for straightforward setup.
Construction:
Outer housing and foot mount are constructed from pressed galvanized steel, ensuring durability.
Internal components, including the patented centrifugal impeller, are made from injection-molded plastic.
Motor:
Type: Single-speed squirrel cage induction motor.
Power supply: 220-240V, single-phase, 50/60Hz for models 100-250; 220-240V, single-phase, 50Hz for model 315.
Bearings: Sealed-for-life ball bearings.
Speed control: Compatible with VA type speed controllers.
Insulation: Class F, IP44 rating.
Internal Protection:
Models 100-125 have fuse protection.
Models 150-315 feature a manual-reset thermal overload protection device, meeting the mandatory standards for in-duct fans AS/NZS60335-2-80:2016.
