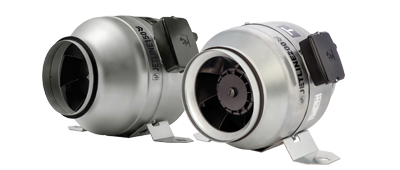

The Jetline EcoWatt is a high-efficiency, slim in-line fan featuring advanced EC motor technology. It utilizes silent-block motor mounting to minimize vibrations and reduce operating noise. The fan is equipped with a quick-fit mounting bracket for easy installation and can be positioned in any orientation. The range includes six models compatible with standard duct sizes from 100 to 315mm.
Features:
Energy-efficient design with cutting-edge EC motor technology.
Speed adjustable from 10% to 100% via a 0-10V analogue input.
High-performance patented centrifugal impeller.
Optimized impeller, guide vane, and outlet diffuser for quiet operation.
Designed for direct connection to standard diameter circular ducting.
Compact, durable outer casing made from galvanized sheet steel.
Sturdy galvanized steel quick-fit bracket for easy installation.
Suitable for any mounting position.
Construction:
Outer housing and foot mount are constructed from pressed galvanized steel for exceptional durability.
Internal housing and patented centrifugal impeller are made from injection-molded plastic.
Motor:
Type: Electronically commutated (EC) motor.
Power supply: 230V ±10%, single-phase, 50/60Hz.
Bearings: Sealed-for-life ball bearings.
Speed control: Adjustable via an internal potentiometer in the terminal box or using an EC type speed controller with a 0-10V external signal.
Insulation: Class B, IP44 rating.
Internal Protection:
Equipped with a manual-reset thermal overload protection device, complying with the mandatory standards for in-duct fans AS/NZS60335-2-80:2016.
