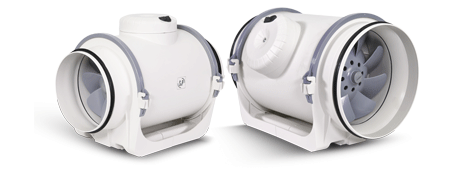

The TD EVO VAR in-line fan is designed to provide outstanding performance while consuming minimal energy, making it suitable for both residential and commercial use. It offers speed control via an on-board potentiometer or remotely through a 0-10V or 4-20mA analogue input signal.
The fan also features an adjustable built-in run-on timer, allowing for continued extraction of steam and odors after you leave the room, with settings ranging from 1 to 30 minutes.
This fan is perfect for installation in toilets, bathrooms, ensuites, laundries, and kitchens in homes, hotels, apartments, and commercial buildings. The series includes 6 models that accommodate standard duct sizes from 100 to 315mm in diameter.
Features:
High-performance mixed-flow impeller
Optimized impeller, guide vanes, and outlet diffuser for reduced noise
Main fan body can be detached without affecting ductwork
Efficient single-phase AC motor
Flexible mounting options
Rotatable junction box
Built-in run-on timer with options for 0, 1, 5, 15, and 30 minutes
