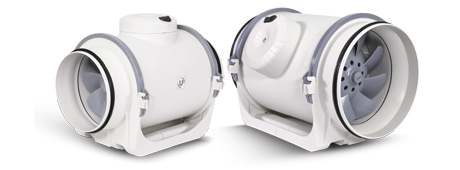

The TD EVO VAR in-line fan is designed to provide outstanding performance with low energy consumption, suitable for both residential and commercial use. It offers adjustable speed control via an on-board potentiometer or remotely with a 0-10V or 4-20mA analogue input signal.
The fan also features an integrated, adjustable run-on timer (1 to 30 minutes), which allows continued extraction of steam and odors after the room is vacated.
Ideal for use in toilets, bathrooms, ensuites, laundries, and kitchens, this fan is suitable for homes, hotels, apartments, and commercial establishments. The range includes six models to accommodate standard duct sizes from 100 to 315mm in diameter.
Features:
High-performance mixed-flow impeller
Noise reduction through optimized impeller, guide vanes, and outlet diffuser
Main fan body can be easily removed without disturbing the ductwork
Efficient single-phase AC motor
Flexible mounting options
Rotatable junction box
Integrated run-on timer with options for 0, 1, 5, 15, and 30 minutes
Additional information
| For Bulk Orders Please Call: | |
|---|---|
| Type | |
| Brand | |
| Supplier | Fantech |
