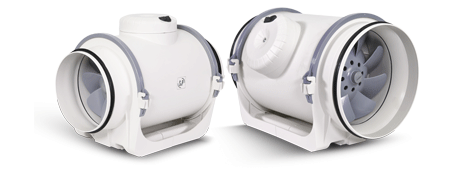

The TD EVO VAR in-line fan is designed to provide outstanding performance while minimizing energy consumption for both residential and commercial applications. It offers adjustable speed control via an on-board potentiometer or remote adjustment through a 0-10V or 4-20mA analogue input signal.
The fan also features an integrated, adjustable run-on timer (1 to 30 minutes) that continues to remove steam and odors even after you've left the room.
Suitable for use in toilets, bathrooms, ensuites, laundries, and kitchens across homes, hotels, apartments, and commercial spaces, the TD EVO VAR comes in 6 models that fit standard duct sizes ranging from 100 to 315mm in diameter.
Features:
High-performance mixed-flow impeller
Enhanced impeller, guide vanes, and outlet diffuser for quieter operation
Main fan body can be removed without affecting ductwork
Efficient single-phase AC motor
Flexible mounting options
Rotatable junction box
Built-in run-on timer with settings for 0, 1, 5, 15, and 30 minutes
Additional information
| For Bulk Orders Please Call: | |
|---|---|
| Type | |
| Brand | |
| Supplier | Fantech |
