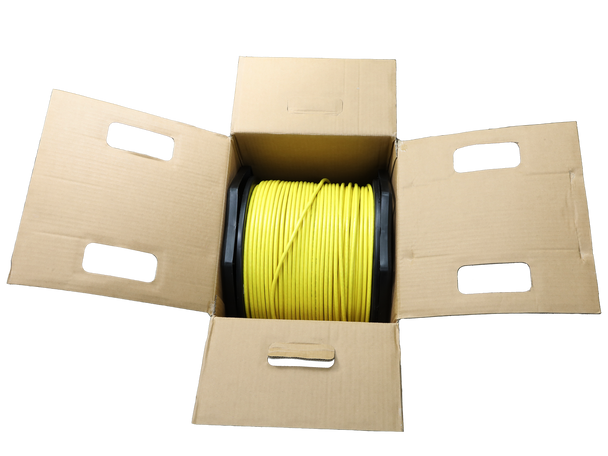

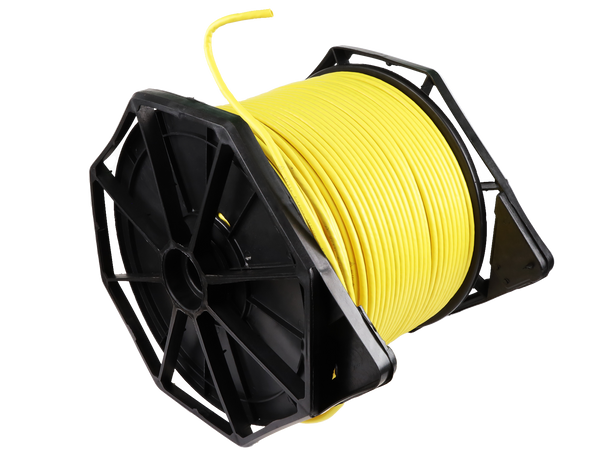

Hills Antenna has 5 different colours in their CAT6 cable range. The Hills Antenna cable features a unique reel & frame system within the box that enables the easiest cable pull in the market. No more kinks, no more jams, just a light tug on the cable gets the reel spinning.
What makes the Hills Antenna CAT6 cable different from some others on the market? Well, other than the easy pull box described above, this CAT6 cable features a centre crosshair spline seperating the 4 pairs. This helps with crosstalk issues and helps achieve maximum transfer speeds (10Gbps). This cable also has a thicker outer insulator than some of the other (cheaper) cables on the market. This is particularly important when pulling cables through the wall. It allows for better protection for those precious copper conductors when pulling past nails, insulation and hard edges, etc. And of course, these CAT 6 cables feature full copper conductors.
Specifications:
- Conductor Type: Solid Bare Copper
- Conductor Size: 23AWG
- Conductor Diameter: 0.56 ± 0.005mm
- Insulation Material: High Density Polyethylene
- Insulation Diameter:1.0 ± 0.03mm
- Filler Material: PE Cross Inner Spline
- Outer Sheath Material: PVC
- Outer Sheath Thickness: Average 0.50mm
- Outer Sheath Diameter: 6.2 ± 0.4mm
- Outer Sheath Colours: Blue, Green, Purple, Red, Yellow
- Outer Sheath Marking: Approval, Brand, Model, Description, Batch Number & Reverse Meter Marking
Additional information
| For Bulk Orders Please Call: | |
|---|---|
| EAN | |
| Brand | |
| Type | |
| Supplier | Bitek |
