Product Description

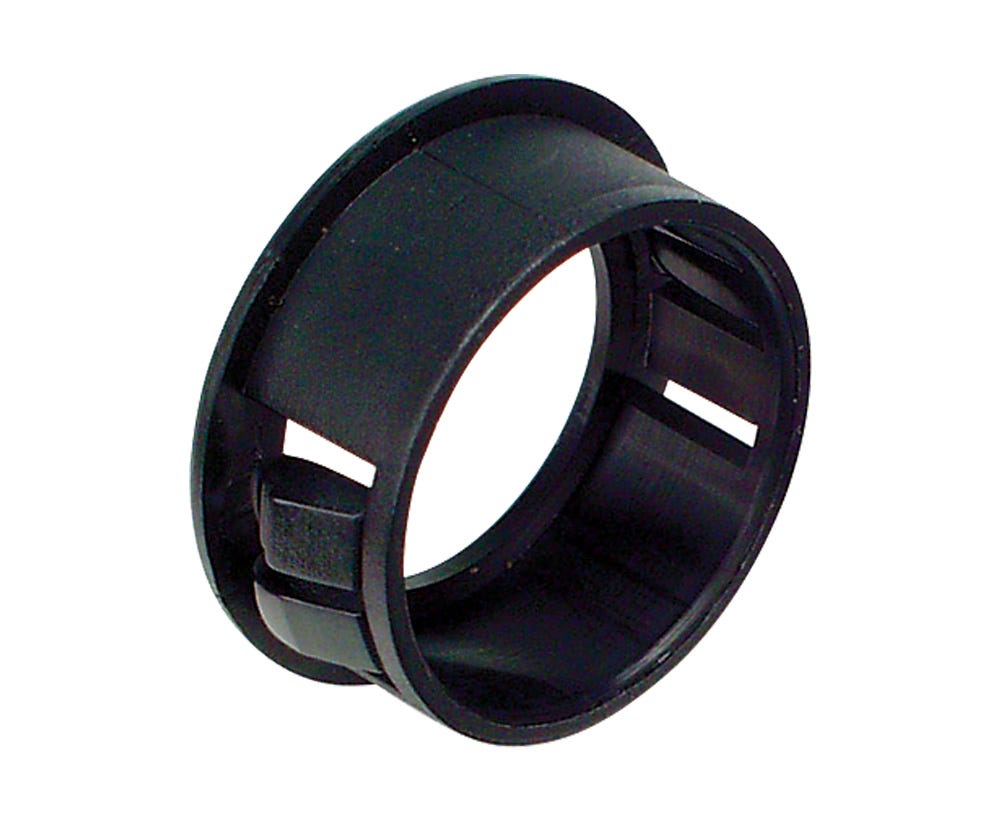

Sharp edges can easily damage cables passing through panel holes. Our nylon bushes (grommets) are a quick and easy solution to this common problem, creating a smooth surface that protects cables against cuts and abrasions sustained from sharp chassis.?
?Installation is straightforward - the nylon bush grommet snaps into place using self-contained locking teeth to secure it to the panel hole. With the raw edges covered, feeding cables through the panel hole is a smooth and simple process. Alternatively, split bushing is available for when you need to retrofit cable protection to existing installations.?
?Our nylon bushing is available in a range of sizes, and is also compatible with our range of nylon plugs.
Product Dimensions
Chassis Thickness: 0.8-3.2mm?
Hole Size (A): 38.1mm?
Inner Diameter (B): 29mm?
Outer Diameter (C): 41.2mm?
Height (L): 11.4mm?
?Line drawing available for reference, see Additional Information.
Technical Data
Material: Nylon 66 UL, 94 V-2?
Colour: Black
Additional information
| MPN | |
|---|---|
| EAN | |
| Brand | |
| Type | |
| Supplier | Cabac |
