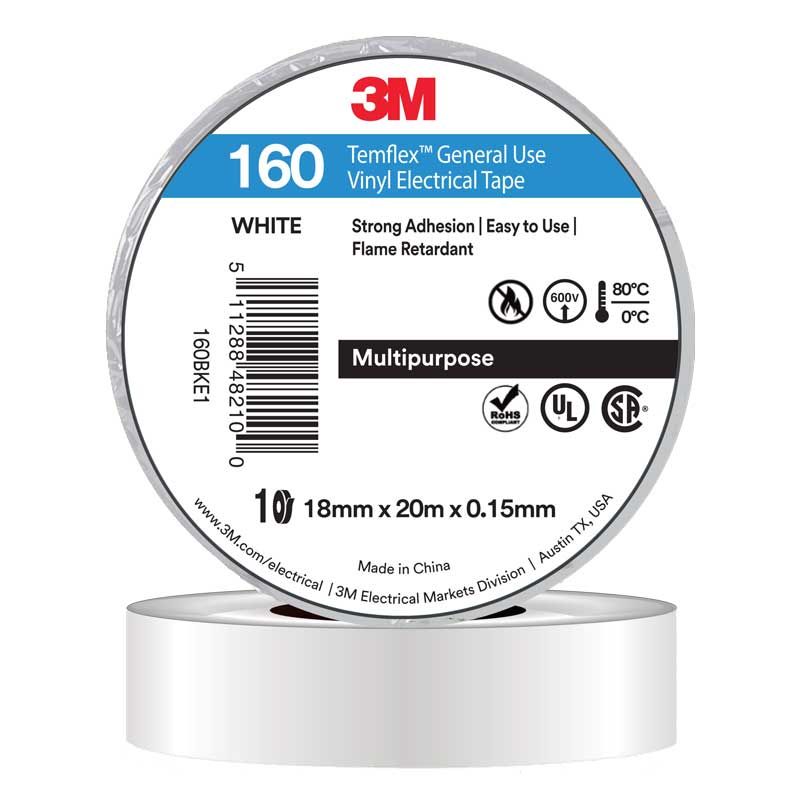

3M? Temflex? Vinyl Electrical Tape 160 is a multi-purpose, general use grade, nominal 0.15 mm thick electrical insulating tape composed of an elastic vinyl (PVC) film backing coated on one side with a non-corrosive, pressure-sensitive adhesive.
FEATURES & BENEFITS
General purpose vinyl tape
Great for less demanding indoor applications
Conformable
Suitable for ambient indoor uses
Basic electrical and hardware application: phase identification; colour coding; harnessing
SPECIFICATIONS
Temperature Resistance (UL510): 0?C - 80?C
Temperature Resistance (CSA C22.2 No.197): -10?C - 80?C
Thickness: 0.15mm
Flame retardant to UL510
CERTIFICATIONS
UL510: Suitable as primary insulation on applications up to 600V at max temperature of 80?C and min temperature of 0?C on joints and splices in wires and cables in accordance with NFPA 70, National Electrical Code
CSA C22.2 No.197: Suitable as primary insulation on applications up to 1000V at max temperature of 80?C and min temperature of -10?C on joints and splices in wires and cables in accordance with Canadian Electrical Code, Part 1
