Product Description

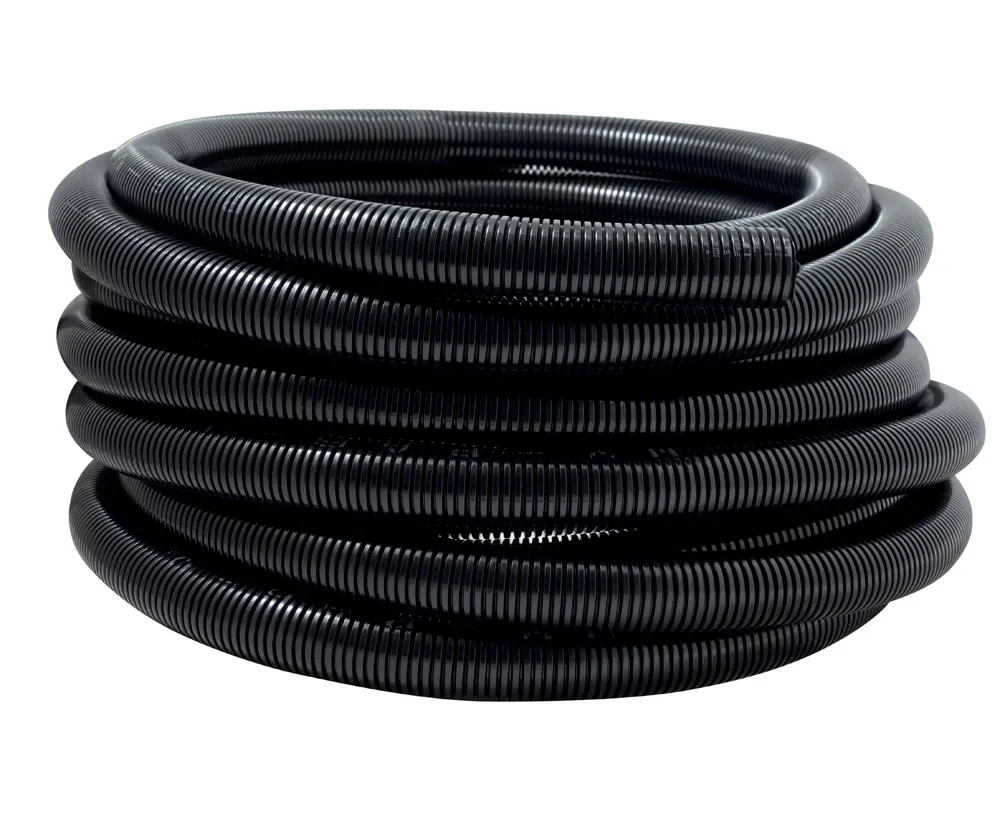

CABFLX Low Fire Hazard Nylon Conduit offers excellent flexibility and mechanical strength for the insulation and protection of electrical cables.
Made from UV resistant PA6 nylon, the CF range is free from halogen, phosphor and cadmium and resistant to chemicals such as oils, acid and solvents.
Our CF conduit is rated to the V2 flammability rating as defined in UL94, a standard that provides a method for rating the flammability of plastic materials.
To comply with the V2 rating, burning must stop within 30 seconds on a vertical specimen; drips of particles are allowed.
Our nylon conduit systems are suitable for a variety of industry applications, including machine tools, industrial equipment, automotive, air-conditioning equipment, railway rolling stock and other general wiring requirements.
Technical Data
Material: Polyamide 6 (PA6) Nylon
Temperature rating: -40 to 115 degrees Celsius (Intermittent to 150 deg C)
Nominal Size: 25mm
ID: 23mm
OD: 28.5mm
Minimum Bend Radius: 45mm
Length: 10m
Additional information
| For Bulk Orders Please Call: | |
|---|---|
| Brand | |
| MPN | |
| Type | |
| Supplier | Cabac |
