Bring internet to any area with a power outlet using your home or small businesses electrical wiring. The TL-PA9020PKIT uses 2X2 MIMO technology to establish fast and stable connections to wired devices. It is ideal for streaming CCTV surveillance systems.
Setting up powerline networks is easy, simply plug, pair and enjoy. There is no need to run new wires, you can use existing electrical wiring to expand your network.
- 2 Gigabit Ethernet Ports
- Ultra fast powerline speed with high speed data transfer up to 2000Mbps
- Up to 300m range over household power circuit
- Easy installation - plug, pair and play
- Features an embedded power socket to use with other devices
- Ideal for 4K/Ultra HD streaming and online gaming

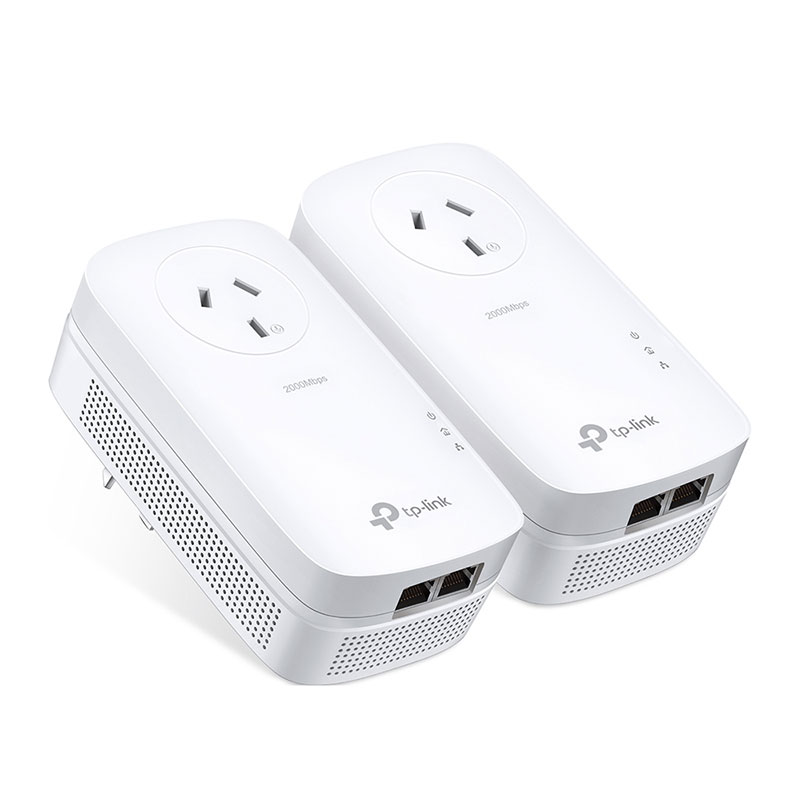

Kit includes 2 x TL-PA9020P powerline adapters and 2 x 2m RJ45 Ethernet cable
Specifications
General
Gigabit Ethernet Ports: 2
Transmission Speeds: Powerline: up to 2000Mbps, Ethernet: 10/100/1000Mbps
Range: Up to 300m over existing electrical wiring
Standards & Protocols: HomePlug AV2, HomePlug AV, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
LED Indicator: Power, Powerline, Ethernet
Button: Pair button with 128-bit AES encryption
Environment
Operating Environment: 0~40°C operating temperature, 10~90% humidity non condensing
Power Consumption: 5.8W (0.5W standby)
Dimensions: 131 x 72 x 42mm (TL-PA9020P powerline adapter)
Warranty (Years): 1
Shipping Weight and Dimensions Includes product packaging
Width: 190 mm
Height: 100 mm
Depth: 230 mm
Weight: 0.72 kg
Additional information
| Manufacturer | |
|---|---|
| Weight | 0.72 |
