Expand your WiFi network using your home or small businesses pre-existing electrical wiring. The TL-WPA8630PKIT uses 2X2 MIMO technology to establish fast and stable WiFi connections to both wired and wireless devices. It is ideal for establishing wireless surveillance connections, creating wireless CCTV systems and streaming CCTV surveillance displays.
Setting up powerline networks is easy, simply plug, pair and enjoy. There is no need to run new wires, you can use existing electrical wiring to expand your network.
- 3 Gigabit Ethernet Ports
- Ultra fast powerline speed with high speed data transfer up to 1300Mbps
- Dual band WiFi speeds up to 450Mbps (2.4GHz) & up to 867Mbps (5GHz)
- Up to 300m range over household power circuit
- Create unified WiFi networks with WiFi auto sync. Sync current WiFi settings to a new device
- Manage your network and when or how many devices can access the network using the tpPLC app
- Easy installation - plug, pair and play
- Features an embedded power socket to use with other devices

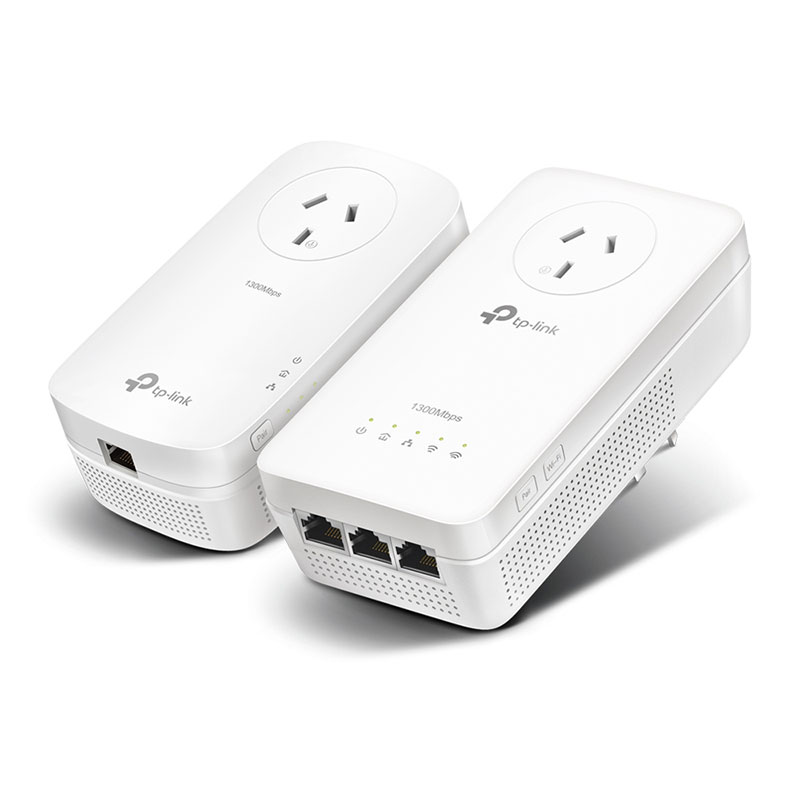

Kit includes 1 x TL-WPA8630P adapter, 1 x PA8010P adapter and 2 x RJ45 Ethernet cable
Specifications
General
Gigabit Ethernet Ports: 3
Transmission Speeds: Powerline: up to 1300Mbps, Ethernet: 10/100/1000Mbps
Range: Up to 300m over existing electrical wiring
Standards & Protocols: HomePlug AV2, IEEE 1901, IEEE 802.3, IEEE 802.3u, IEEE 802.1 b/g/n (2.4GHz), IEE 802.1 a/n/ac (5GHz)
LED Indicator: Power, Powerline, Ethernet, WiFi
Button: Pair, LED on/off, WiFi, WiFi CLone, Reset
Environment
Operating Environment: 0~40°C operating temperature, 10~90% humidity non condensing
Power Consumption: 11W (max. 13.7W) (7W standby)
Dimensions: 131 x 72 x 42mm (PA8010P adapter), 152 x 75 x 42mm (WPA8630P adapter)
Other
Security: Powerline: 128-bit AES encryption, Wireless: WPA_PSK/WPA2-PSK, WEP Encryptions
Warranty (Years): 1
Shipping Weight and Dimensions Includes product packaging
Width: 190 mm
Height: 100 mm
Depth: 230 mm
Weight: 1.01 kg
Additional information
| Manufacturer | |
|---|---|
| Weight | 1.01 |
