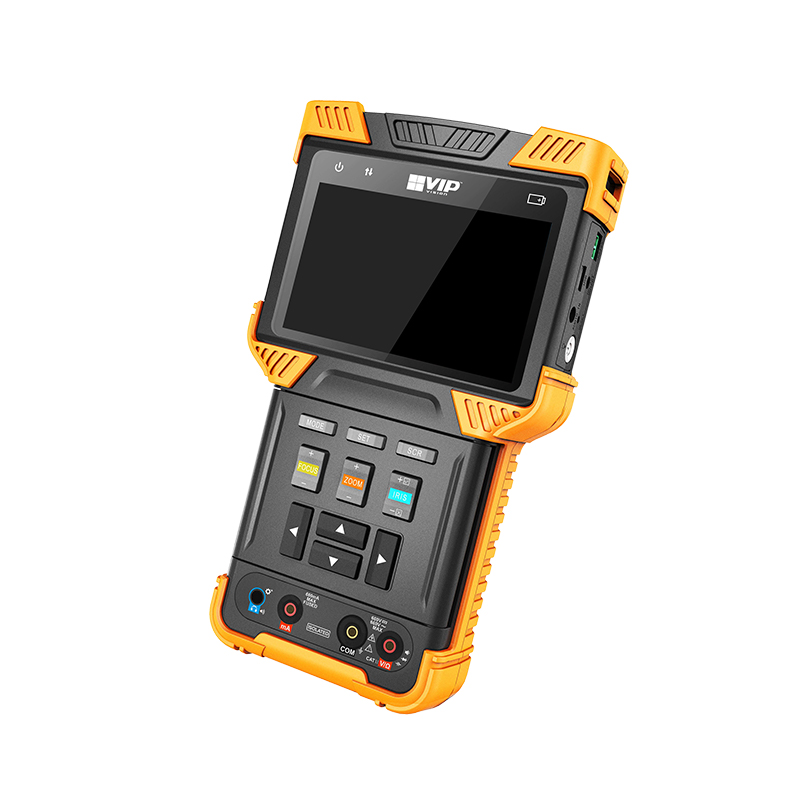

The VSTEST101 is an installation device which delivers the ability to test and configure IP, HDCVI and analogue surveillance cameras in real-time during surveillance installations.
Product features:
• 4.0" IPS display (800 x 480), 12 control keys & flip-out QWERTY keyboard
• 2 x RJ45 (1000M), 2 x BNC (video in/out), RS485, USB and Audio-in IP Surveillance (ONVIF 2.4.1, RTSP, RTP protocols)
• Configure: static IP, DHCP client, DHCP server, camera configuration
• Test: camera discovery, realtime video PTZ control, audio, view and record HDCVI & Analogue Surveillance (PAL/NTSC, D1/720p/1080p/2.0MP/4.0MP)
• Digital multi-meter, testing current, voltage and more
• H.265 decoding for cameras up to 8.0MP
• Test: real time video, PTZ control, audio test, view and record
• Over 30 protocols for PTZ control with up to 19200bps baud rate
• Generate PAL/NTSC video signals; support for local footage playback
• Power by PoE midspan; PoE (802.3af/at) and 12VDC/2A power outputs
• Up to 10 hours operation time with 3~4 hours recharge time
• Dual LED flashlight with support for online firmware upgrades
SPECIFICATIONS
Network Port: 2 x 10/100/1000M RJ45 port, support switch mode
BNC Port: 1 x Video In (HDCVI/TVI/AHD/Composite), 1 x Video Out
Function Port: 1 x RS485, 1 x Audio In, 1 x Mini USB, 1 x Reset
Screen: 4.0 inch TFT RGB screen (WVGA), 16.7M colour, 223 PPI, 800 x 480 resolution (5:3 aspect ratio)
Operation Method: 45 key QWERTY flip keyboard , Power key, 12 control keys
Auto Power Off: Disable / 5~60 minutes
Tools: Data Monitor (from RS485 device) / Audio Recorder / Flashlight (Toggle with LED On/Off Button)
Updates: Support online updates
PD Test: Tester as a powered device (using 802.3at) / Detects power supply voltage
PSE Test: Tester as a power source, up to 25.5w (802.3at) / Detects powered device actual power
IP Camera Protocol: ONVIF, RTSP, RTP
Ethernet Test: 10/100/1000M Ethernet link test, loop detect, Ethernet traffic flow monitor, IP adress scan, ping test, DCHP server
IP Camera Resolution: Up to 4.0MP
IP Configuration: Static IP/ DHCP client/ DHCP server
IP Camera Test: Discover camera, real time video, camera configuration, PTZ control, audio test, full screen preview and digital zoom, snapshot, record video (recording original data stream)
IP Camera Digital Zoom: 8 x Digital zoom
Video Formats: HDCVI / AHD / TVI / Composite
Video Encoding: PAL, NTSC (auto-detect) / H.265, H.264
Resolution: HDCVI (up to 4.0MP) / AHD (up to 4.0MP) TVI (up to 5.0MP)
Camera Test: Real time video / PTZ control / RS485 control / Audio test/ Full screen preview with digital zoom / Snapshot / Record video / Video play back
Coaxial Camera Digital Zoom: 8 x digital zoom
Coaxial OSD: Camera configuration
WiFi Test: N/A
Signal Monitoring: N/A
Antenna Type: N/A
Calibration Wavelength: N/A
Signal Strength: N/A
Connector: N/A
HDMI In: N/A
HDMI Out: N/A
PTZ Protocol: More than 30 controls
Baud Rate: 150 ~ 19200bps
Network Cable Testing: TDR method
Coaxial Cable Testing: TDR, Analog video generator
Optical Cable Testing: N/A
Metering Function: AC/DC voltage / AC/DC current / resistance / capacitance / diode forward voltage / open and short testing
Battery: 7.4V li-ion polymer battery, 3000mAh, 22.2Wh
Power Output: 12VDC 2A / PoE: 25.5W (802.3at)
Charging Time: 3~4 hours
Time: 8 ~ 10 hours
On-Board Storage: Built-in 8GB flash
Working Temperature: -10°C ~ +55°C
Working Humidity: 30% ~ 90%
Dimensions: 190 x 113 x 37mm
Weight: 1.6kg
Warranty (Years): 1
