Product Description

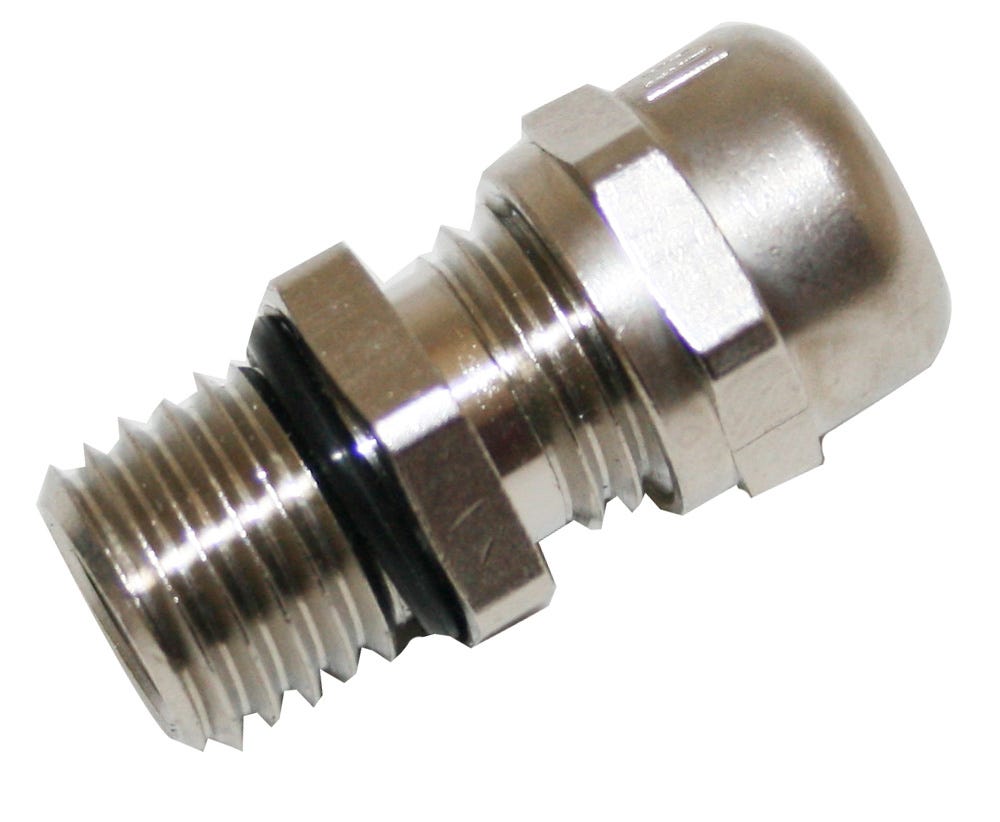

The GU range of unarmoured metric cable glands are perfect for use with PVC, XLPE and other synthetic cables.?
?These glands are rated IP68, with a nickel plated brass body to guard against the effects of corrosion and a fully insulated seal to ensure fluid tightness.?
?Unlike many traditional glands, the GU range has a camera shutter style sealing mechanism which allows each gland to fit a wide cable diameter range without sacrificing ingress protection.?
?How to Install:?Installation is extremely simple, just pass the cable through the assembled gland and tighten gland nut until the cable is secured. The gland has strain relief and twisting protection rated to DIN VDE 0619, so you can be sure that you are working with a quality product.?
?Lock nut sold separately.
Dimensions
Mounting Dia. (A): 32mm?
Thread Length (B): 13mm?
Min. Cable Range: 14mm?
Max. Cable Range: 21mm?
Width (A/F): 34mm?
Recommended Torque: 10Nm?
Locknut: LNM32?
?To browse other sizes of unarmoured metal cable glands, view the product range or refer to the product data sheet for a size selection guide.
Technical Data
Conformant Standard: DIN 46 319 (brass glands metric)?
IP Rating: IP68?
Threading: According to IEC 423, IEC 423A and EN 60423?
Chemical Resistance: Resistant to normal organic solvents, mineral, animal and vegetable oils, fat and petrol?
Continuous Operating Temperature: -20 to +100 degrees Celsius?
Strain Relief and Twisting Protection: To DIN VDE 0619?
?Nickel plated brass body?
Polyamide 6 insert (self-extinguishing)?
Neoprene seal (self-extinguishing)?
Neoprene O-ring (self-extinguishing)
Additional information
| MPN | |
|---|---|
| EAN | |
| Brand | |
| Type | |
| Supplier | Cabac |
