Product Description

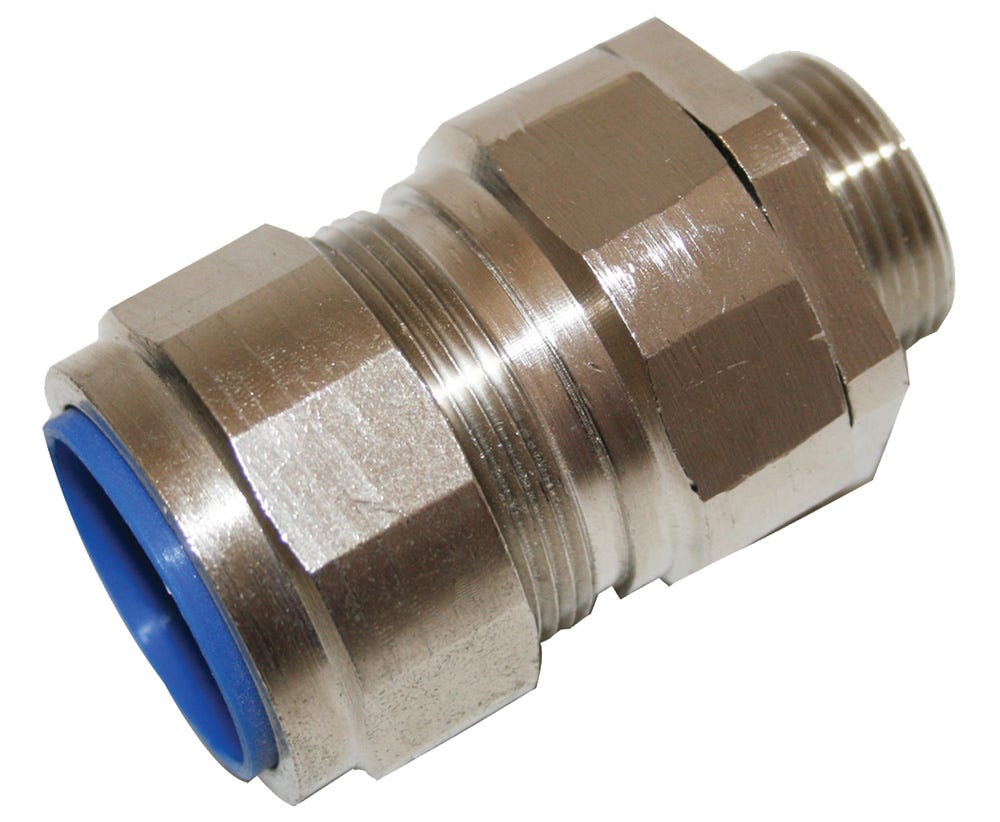

The CABAC range of armoured metal glands are a weatherproof solution when working with steel wire armoured cable.?
?The brass body is protected by anti-corrosive nickel plating that prevents deterioration. A neoprene rubber seal to the cable outer jacket excludes dust and water with a protection rating of IP66.?
?Each gland can accommodate a generous cable range to simplify product selection. Suitable for PVC and XLPE insulated armoured cables?
?To install, simply follow normal gland installation practices. Our SWA glands feature a wedge seal which deflects inwards. This unique feature makes our product easier to work with than conventional glands and saves the installer valuable time.?
?Lock nut sold separately.
Dimensions
Mounting Thread Dia. (C): 50mm?
Thread Length (D): 15mm?
Max. Under Armour Cable Range (A): 38.1mm?
Min. Cable Range (B): 36.5mm?
Max. Cable Range (B): 46.7mm?
Armour Wire Dia.: 2.0-2.5mm?
Across Corners: 61.3mm?
?Shroud: SH6?
?Tip: to ensure you choose the correct gland, it is essential to make sure you have determined the over and under armour dimensions of your cable- this data can be found in cable manufacturers technical books or by measuring the cable.?
?Available in a range of sizes, refer to the product data sheet for a handy SWA gland selection chart.
Technical Data
Body: Brass?
Finish: Nickel plated?
Seal: Neoprene rubber?
Conformant Standard: BS6121: Part 1:1989?
IP Rating: IP66
Additional information
| MPN | |
|---|---|
| EAN | |
| Brand | |
| Type | |
| Supplier | Cabac |
