Quick and simple installation of waterproof termination - sealing the conductor insulation to the cable jacket
High tearing resistance and tensile strength
Resistant to decay, chemicals and corrosion
Product Description
KEV Heatshrink Boot/Glove 4 Way 69-29MM/25-8.5MM
KEV Heatshrink Gloves (boots) are used to seal and waterproof cable terminations, by sealing the insulated conductors to the cable jacket. They have a hot melt glue liner which melts while the glove is shrinking and creates a strong bond between the glove and the cable.
KEV Heatshrink Boot/Glove Features
? Quick and simple installation of waterproof termination
? High resistance to tearing and high tensile strength
? Resistant to decay, chemicals and corrosion
Instructions

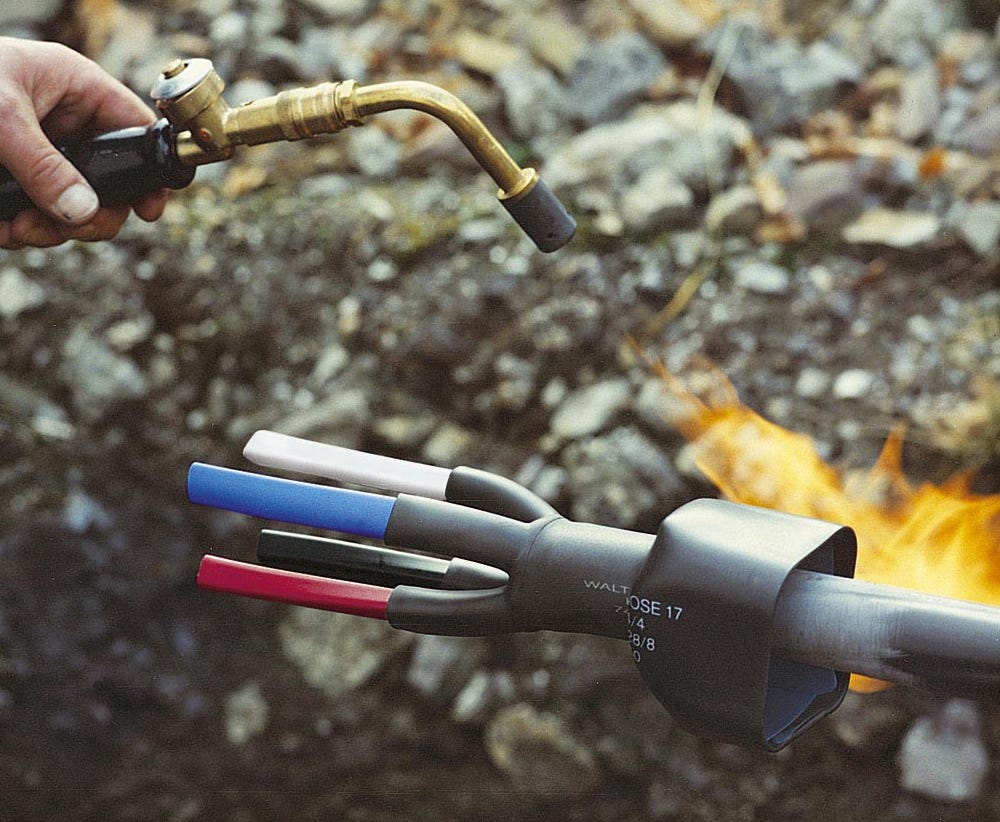

To install the glove, ensure that the insulation of the cable and conductor are clean and grease free, and roughen with emery paper for a good glue bond. Shrink the glove from the middle out with a heatgun or soft yellow gas flame until adhesive extrudes. Avoid local overheating during shrinkage process.
Technical Data
Conformant StandardsDIN: VDE: IEC
Material Modified cross-linked polyolefin
Continuous Operating Temp-40°C to +110°C
Shrinkage TempStarts 105°C, completed 125°C
Tensile Strength18 MPa
Elongation at Break Point450%
Longitudinal Shrinkage10%
Breakdown Voltage16 kV/mm wall thickness
Volume Resistivity1.0 x 1014 ohm cm
Water Absorption0.15%
FlammabilityDo not use KEV in flame prone areas
UV ResistancePassed ISO 1408
