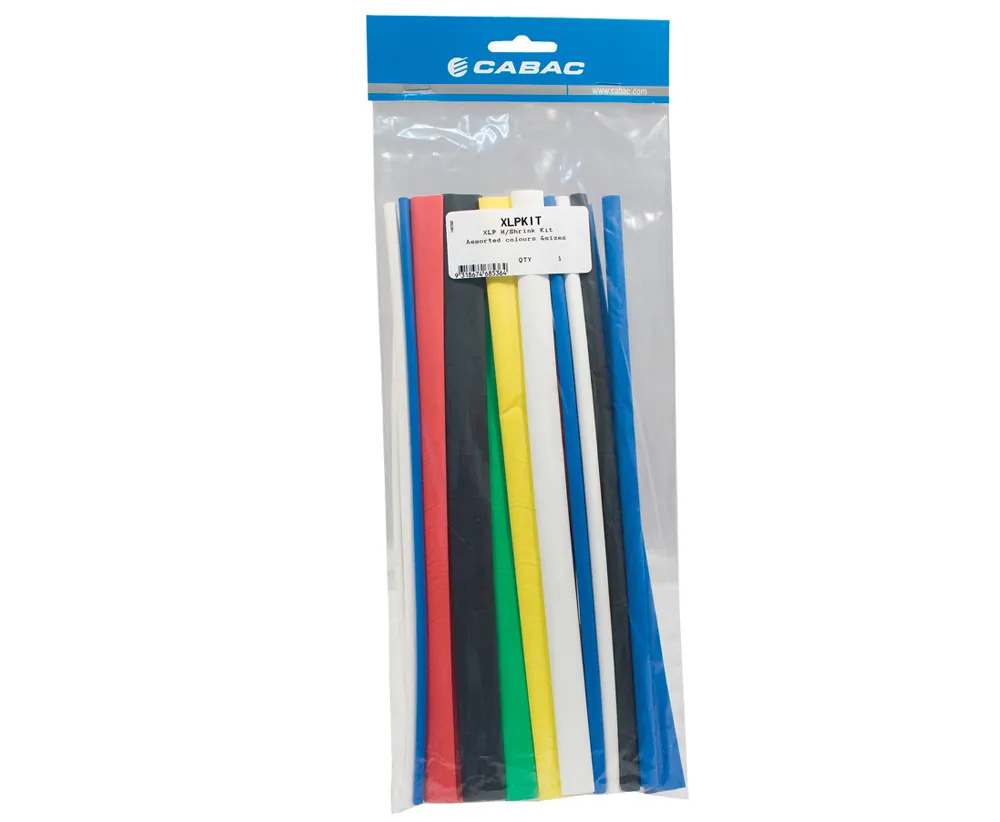

XLP Heatshrink Kit Assorted Colour & Sizes
The XLP Heatshrink Kit contains various colours and sizes of XLP Thin Wall Heatshrink.
XLP tubing is a chemically cross-linked tubing that conforms to MIL-1-23053/5 class 3. It will withstand -75?C to 135?C for normal operating conditions and 200?C for short intervals. Black tubing withstands ultraviolet radiation. Tubing can easily be shrunk with a heat gun or a heat tunnel (Part No. HG2000 or HG2000C).
NOTE: All tubing in this range are flame retardant except clear, which is flammable and conforms to MIL-1-23053/5 Class 2.
XLP Heatshrink Thin Wall Features
? Highly flexible
? Flame retardant
? Abrasion and impact resistant
? For use in all electrical and electronic applications
? In-house cutting facility available for cut sleeves
? Full range 1.5mm to 125mm diameter with 2:1 shrink
? Available in most colours on reels or 4ft (1.2m) lengths
? Full range is UV stabilised
XLP tubing has numerous uses in the electrical and associated industries, including insulation, colour coding and mechanical protection.
Technical Data
Compliant Standards: UL224 VW1 File No. E197423
Conformant Standards: MIL-1-23053/5; JIS
Material: Chemically, cross-linked, thermally stabilised flame-retardant polyolefin
Continuous operating temp: -75?C to +135?C
Shrinkage temp: > 100?C
Longitudinal shrinkage: < 5%
Tensile strength: 16 MPa
Breakdown voltage: 25 kV/mm wall thickness
Volume resistivity: 1.0 x 1014 ohm-cm
Elongation at breakpoint: 400%
Water absorption: 0.15% max
Flammability: Passed ASTM-D-2671
UV stability: All tubing is stable
Voltage rating: 600V
Ordering Information
Part No. XLPKIT
ColourSizeQty (mm)
Red3.2mm shrinks to 1.6mm?90
White3.2mm shrinks to 1.6mm?90
Blue3.2mm shrinks to 1.6mm?90
Black3.2mm shrinks to 1.6mm?90
Red4.8mm shrinks to 2.4mm?90
White4.8mm shrinks to 2.4mm?90
Blue4.8mm shrinks to 2.4mm?90
Black4.8mm shrinks to 2.4mm?90
Red6.4mm shrinks to 3.2mm?90
White6.4mm shrinks to 3.2mm?90
Blue6.4mm shrinks to 3.2mm?90
Black6.4mm shrinks to 3.2mm?90
Red9.5mm shrinks to 4.8mm?90
White9.5mm shrinks to 4.8mm?90
Blue9.5mm shrinks to 4.8mm?90
Black9.5mm shrinks to 4.8mm?90
Green9.5mm shrinks to 4.8mm?90
Red12.7mm shrinks to 6.4mm?90
White12.7mm shrinks to 6.4mm?90
Blue12.7mm shrinks to 6.4mm?90
Black12.7mm shrinks to 6.4mm?90
Additional information
| For Bulk Orders Please Call: | |
|---|---|
| EAN | |
| Brand | |
| Type | |
| Supplier | Cabac |
