Flame-retardant tubing made from Electron Beam Cross-Linked Polyolefin
Operating temperature: -75 to +135 degrees Celsius
Resistant to common fluids, solvents and abrasion
UV resistant
Product Description

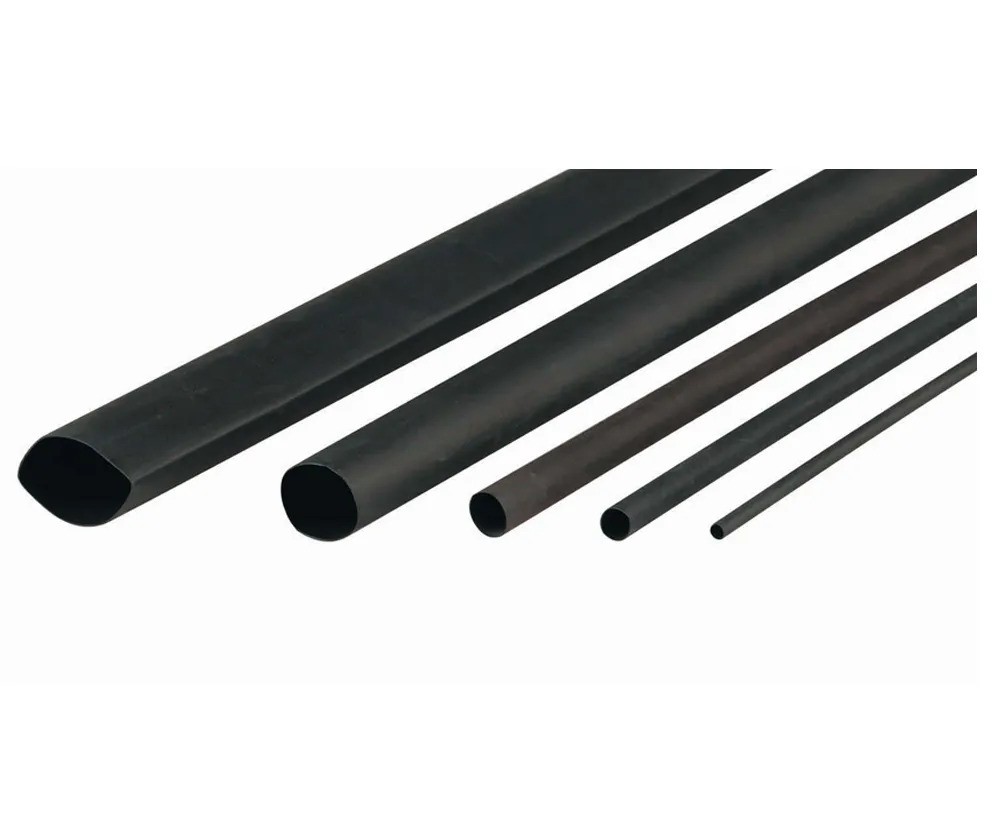

The CABAC XLP range of thin-walled heat-shrink tubing is used to insulate, protect and colour-code conductors in a range of applications related to the electrical and associated industries. This general-purpose heat shrink provides electrical and mechanical
protection, while also defending against environmental factors such as common fluids and/or solvents. Our black, thin-walled heat-shrink sleeve is flexible, flame-retardant, and resistant to impact, abrasion and UV radiation.
The XLP range of heat-shrink tubing is made from polyolefin that has been cross-linked using high-energy electron beam technology. Upon the application of heat, the tubing will shrink down to approximately 50% of its pre-shrink diameter to deliver tight-fitting
electrical and environmental insulation. To shrink our heat-shrink tubing, we recommend the use of a CABAC heat gun (Part No. HG2232 or HG2233).
CABAC black polyolefin heat shrink tubing is UL certified and complies with a number of international standards, including ASTM D2671.
Dimensions
Pre-shrink diameter: 25.4mm
After-shrink diameter: 12.7mm
Recovered wall thickness: 0.87mm
Length: 4 feet (1.2 metres)
XLP tubing is available in a wide range of colours and sizes, from 1.5mm to 125mm. The product datasheet includes a selection chart for your reference; see Resources.
Technical Data
Compliant Standards: UL224 VW1 File No. E366157, ASTM D2671
Continuous Operating Temperature: -75 to +135 degrees Celsius
Shrinkage Temperature: > 105 degrees Celsius
Longitudinal Shrinkage: < 5%
Tensile Strength: 10.4 MPa
Breakdown Voltage: 25 kV/mm wall thickness
Elongation at Break Point: 400%
Water Absorption: 0.15% max
Voltage Rating: 600V
Heat Shock: 250 degrees for 4 hours
PLEASE NOTE: The full range of XLP heatshrink is UV stabilised, except clear. Non-black colour variants will fade slightly or change colour over time, depending upon the strength of the UV radiation, without impacting the materials functional characteristics.
Technical Specifications
Product Colour: Black
Wall: Thin
Pre-Shrink Diameter (mm): 25.4
After-Shrink Diameter (mm): 0.87
Heatshrink Tube Length (M): 1.2
Recovered Wall Thickness (mm): 12.7
Glue-lined: No
