Made from chemically cross-linked tubing
For electrical and electronic applications
Flame retardant, abrasion and impact resistant
Product Description

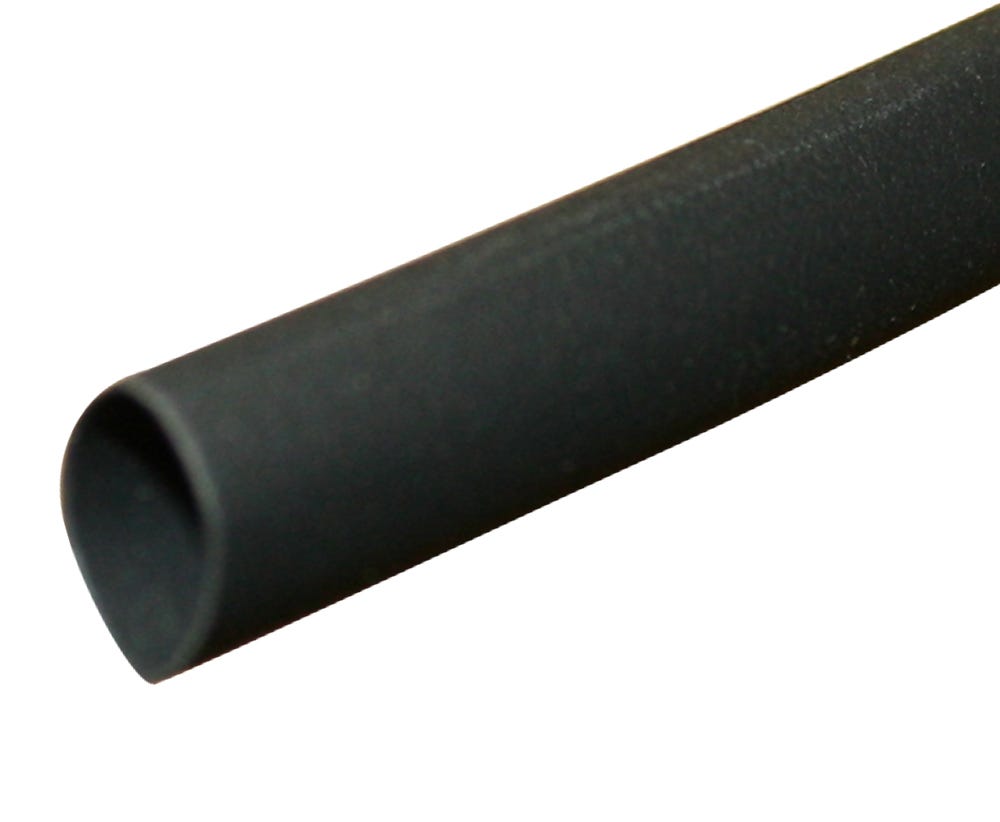

XLH Thin Wall High Shrink Roll
The XLH range is a thin walled high shrink ratio tubing, used in areas where the shrink diameters of the smallest and largest shrink vary a lot.
A typical use is for connectors on the end of the cord, where the tubing will shrink around the connector, and around the wire. Because of the high shrink ratio, it is usually possible to slip the tubing over the connector, and shrink it onto a cord, which is significantly smaller than the connector.
XLH Thin Wall High Shrink Features
•Highly flexible
• Flame retarded
• Abrasion and impact resistant
• Available in ultraviolet resistant black only
• Nominal shrink ratio 3:1
• In house cutting facility is available for cut lengths
Supplied on reels, or in handy kit packs with 5 x 200mm pieces of shrink in a bag.
Note: XLH Thin Wall High Shrink tubing should be shrunk using a heatgun such as the CABAC general purpose heatgun Part No. KG2000.
Technical Data
Conformant Standards: MIL-1-23053/5; JIS
Material: Cross-linked, thermally stabilised flame retarded polyolefin
Continuous operating temp: -75°C to +135°C
Shrinkage temp: > 100°C
Longitudinal shrinkage: < 5%
Tensile strength: 16 MPa
Breakdown voltage: 25 kV/mm wall thickness
Volume resistivity: 1.0 x 1014 ohm cm
Elongation at break point: 400%
Water absorption: 0.15% max
Flammability Passed: ASTM-D-2671
UV stability: Black tubing is stable
Voltage rating: 600V
Kits also available for retail display, and small user contact us for more information.
Technical Specifications
After-Shrink Diameter (mm): 0.5
Recovered Wall Thickness (mm): 0.45
Product Colour: Black
Pre-Shrink Diameter (mm): 1.6
Glue Lined: No
