Product Description:

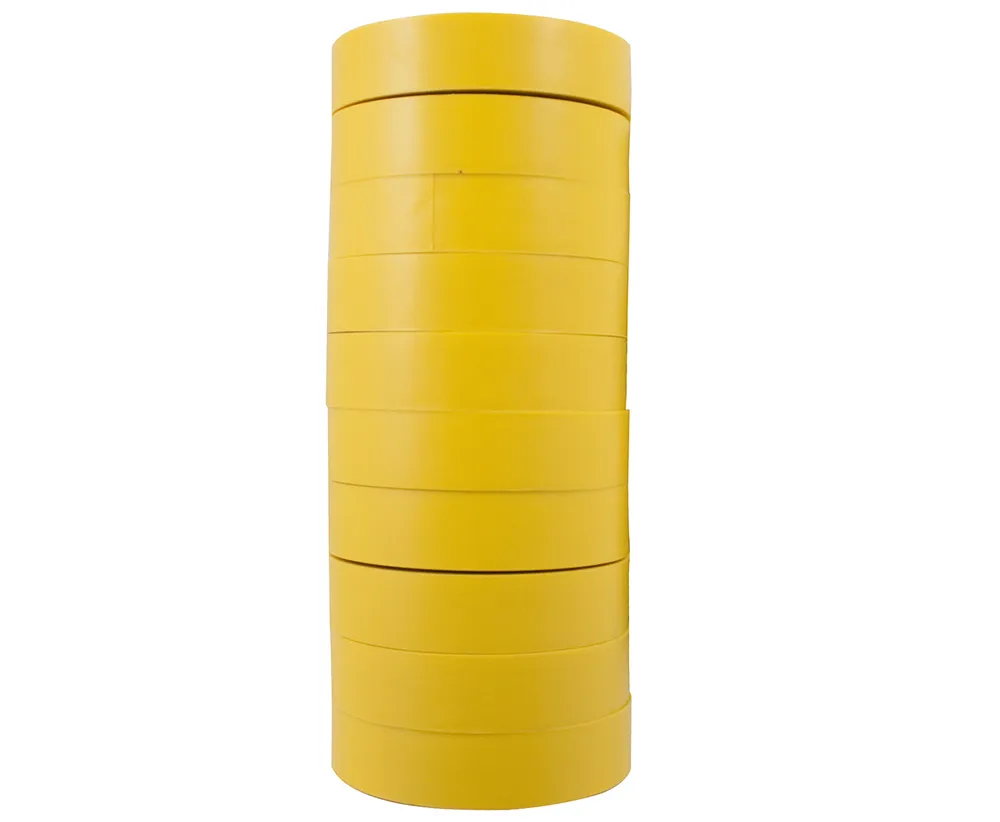

CABAC PVC Insulation Tape is a standard grade electrical tape with a thickness of 0.135mm, designed for reliable insulation, identification, and harnessing in various electrical and industrial settings. Rated up to 600V, this tape offers durable elasticity, strong adhesion, and resistance to flame, weather, oil, and acids. It operates effectively within a temperature range of 0 to 90?C.
Specifications:
Material Composition: PVC
Thickness: 0.135 mm
Adhesive Type: Rubber
Adhesion Strength: >0.32 kg/19mm
Elongation: >150%
Dielectric Strength: 40 kv/mm
Tensile Strength: >4.7 kg/25mm
Flame Retardant: Yes
Resistant to: Weather, oil, and acid
Operating Temperature: 0 to 90?C
Compliance:
RoHS: Meets Restriction of Hazardous Substances Compliance
REACH: Meets Registration, Evaluation, Authorization, and Restriction of Chemicals Compliance
Applications:
Identification and Coding: Marks and codes electrical components for easy identification.
Harnessing: Bundles and secures wires and cables within electrical systems.
General Wire Wrapping: Provides a secure, protective, and durable wrap for wires.
Basic Insulation: Ensures safe insulation for electrical connections and components.
Usage Instructions:
Surface Preparation: Ensure the application surface is clean, dry, and free from grease or dust.
Application: Apply the tape by wrapping it evenly with sufficient tension to avoid wrinkles or looseness.
Storage Conditions: Keep in a cool, dry place away from direct sunlight.
Available Colours: Black, White, Red, Blue, Yellow, Yellow-Green, Rainbow Pack
Additional information
| For Bulk Orders Please Call: | |
|---|---|
| Brand | |
| MPN | |
| Type | |
| Supplier | Cabac |
