Terminate stranded conductors, containing all strands in thin walled copper sleeve crimped to conductor
Crimp holds on sleeve until housing screw makes connection
Crimp with one of our HNKE range of crimp tools
Halogen free and ROHS Complaint
Product Description

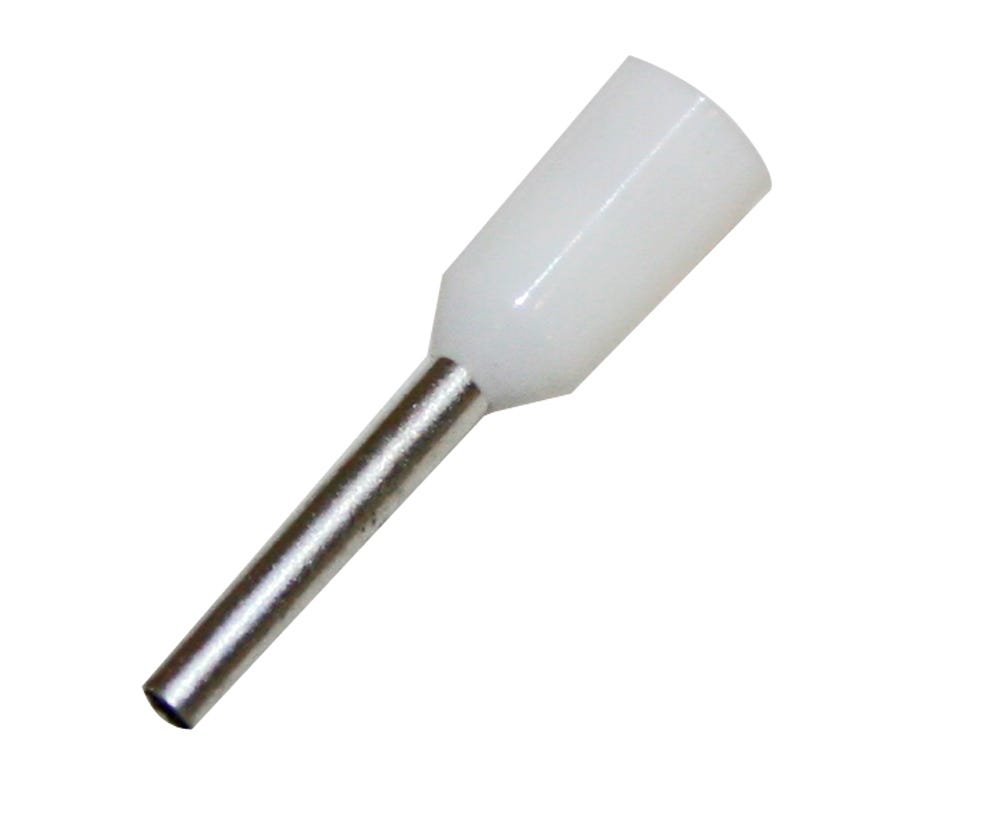

Bootlace pins are used to terminate conductors, by containing the strands in a thin walled copper sleeve that is crimped on to the conductor. The sleeve ensures that no conductor strands stray, and also stops screws in the terminal from breaking strands. With the use of larger diameter flexible cables, the range is continually growing, so please contact our sales department if an item you need is not shown.
There are three basic types of Bootlace Pin:
- Insulated single conductor style
- Twin conductor style
- Uninsulated cord end sleeves
The sleeves should be slipped over the stripped conductor, and crimped with one of our HNKE range of crimp tools. The crimp is only to hold the sleeve on conductor until screw of terminal housing makes the connection.
Technical Data
Nominal Conductor: 0.5mm2
Colour: White
Pack Qty: 100
Tooling Part No.: HNKE12, HNKE3, HNKE6 and HNKE5
Dimensions
L: 14mm
P: 8mm
B: 1mm
D: 2.6mm
Note: Line drawings for dimensions (L, P, B and D) are available.
Technical Specifications
Cable Size (mm2): 0.5
Terminal Colour: White
Terminal Type: Bootlace Pin
Additional information
| Material Group | AA |
|---|---|
| EAN | |
| Brand | |
| For Bulk Orders Please Call: | |
| Type | |
| Supplier | Cabac |
