Used to terminate conductors by containing the strands in a thin walled Copper sleeve that is crimped onto the conductor
Sleeve ensures no stray conductor strands or breaks from screw
Crimp holds on sleeve until housing screw makes connection
Crimp with one of our HNKE range of crimp tools
Halogen free and ROHS Complaint
Product Description

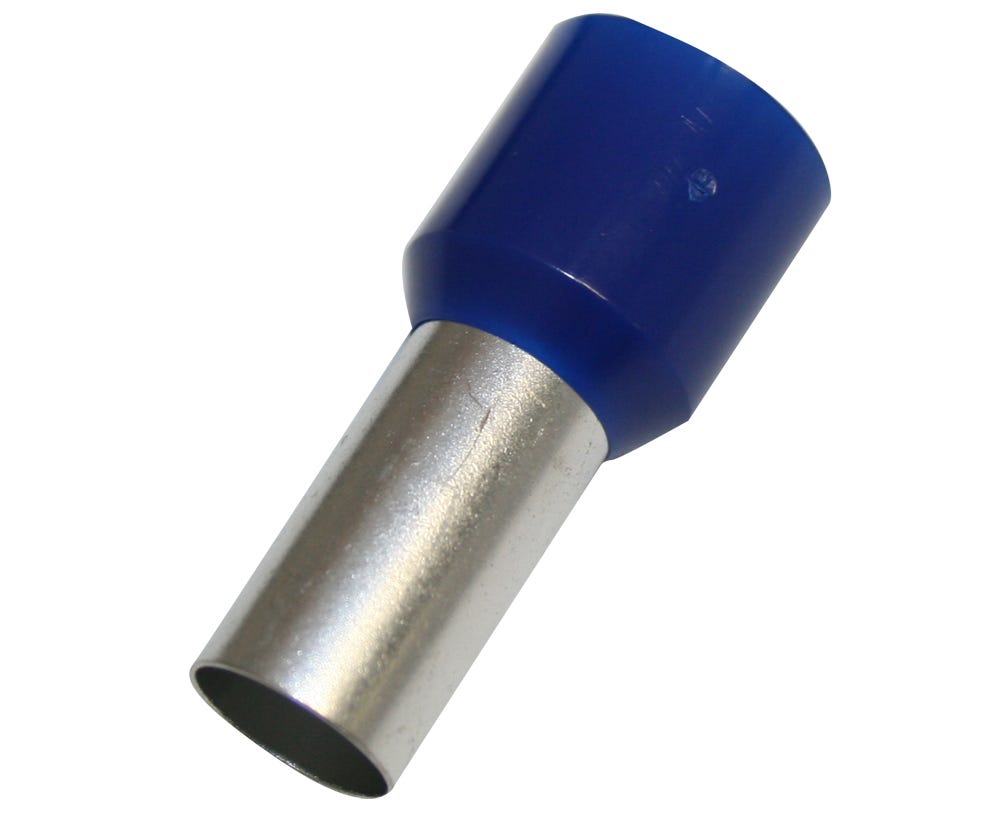

Bootlace Pin 50MM– Blue
Bootlace pins are used to terminate conductors, by containing the strands in a thin walled copper sleeve that is crimped on to the conductor. The sleeve ensures that no conductor strands stray, and also stops screws in the terminal from breaking strands. With the use of larger diameter flexible cables, the range is continually growing, so please contact our sales department if an item you need is not shown.
There are three basic types of Bootlace Pin:
• Insulated single conductor style
• Twin conductor style
• Uninsulated cord end sleeves
The sleeves should be slipped over the stripped conductor, and crimped with one of our HNKE range of crimp tools. The crimp is only to hold the sleeve on conductor until screw of terminal housing makes the connection.
Technical Specifications
Cable Size (mm2): 50
Terminal Colour: Blue
Terminal Type: Bootlace Pin
Additional information
| Material Group | AA |
|---|---|
| EAN | |
| Brand | |
| For Bulk Orders Please Call: | |
| Type | |
| Supplier | Cabac |
