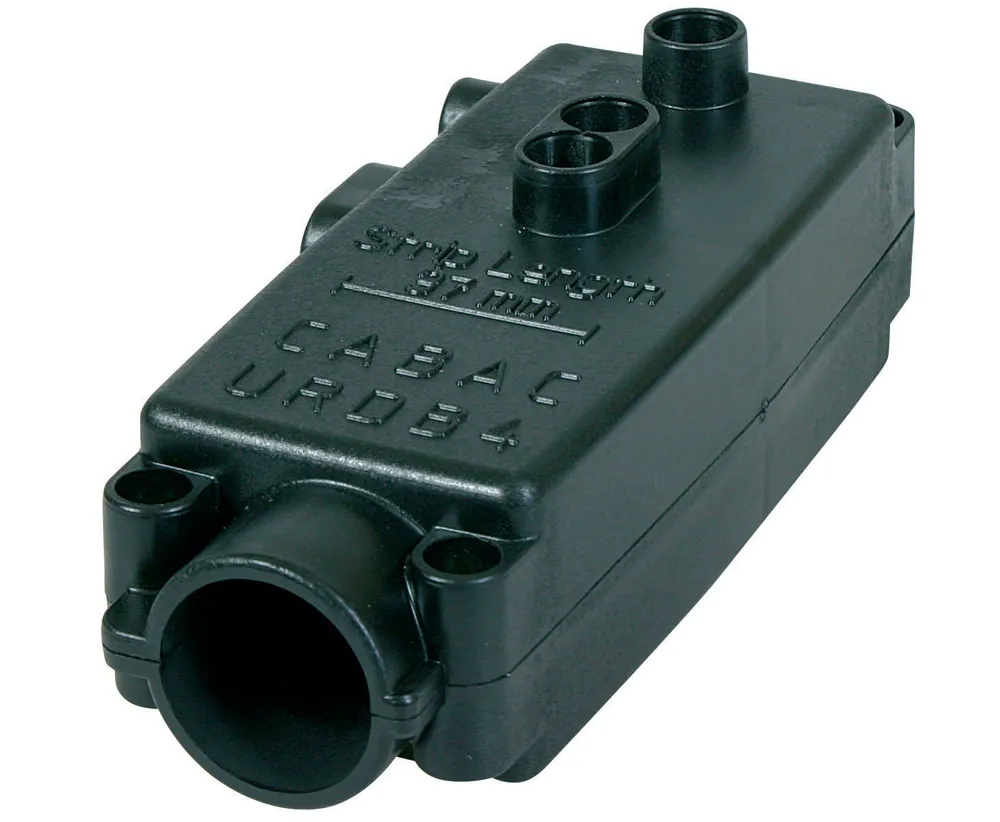

Double Cable Bolted Cover
The unique CABAC URD Cover system has been designed specifically to compliment the URD Bolted lugs and provide a simple and easily installed connection cover.
URD Cable Bolted Lug Cover Features
?Three covers are available to contain either single, looped or 3 way arrangements
? Each phase is terminated separately within its own cover a design feature that eliminates the need to tailor more than a maximum of 3 cables at any one time
? The cover is completely reversible and has an inbuilt tolerance to accept some degree of misalignment of the connectors should a difficult installation exist
? The cover system is electrically safe and is of the required fingerproof concept. Fully tested the cover meets 1000 volt safety security.
? Manufactured from glass filled nylon, the cover is capable of withstanding very high impact loads to provide an almost indestructible protection device.
? The covers cable ports are accessed from the front cover where the following ports are available:
- 4 cable ports for a maximum of 25 mm square cable
- 2 cable ports for a maximum of 50 mm square cable
? The cover has been designed to hold the cable connection grub screws and prevent their dislodgement into the junction box cover
? Strip length information for cables is clearly marked on the junction box cover
? Should it be necessary, live services can be safely installed by the use of insulated allen keys
Additional information
| For Bulk Orders Please Call: | |
|---|---|
| Brand | |
| MPN | |
| Type | |
| Supplier | Cabac |
