Cabac FORKED SPADE 6MM BLUE FS2-6 x 50

Unique funnel entry that speeds wire termination - increasing reliability

High quality, conforms to AS 3169 and AS 4437

Reduce installation errors - PVC insulated

Part numbers with DG=Double Grip, HF=Halogen Free

Product Description

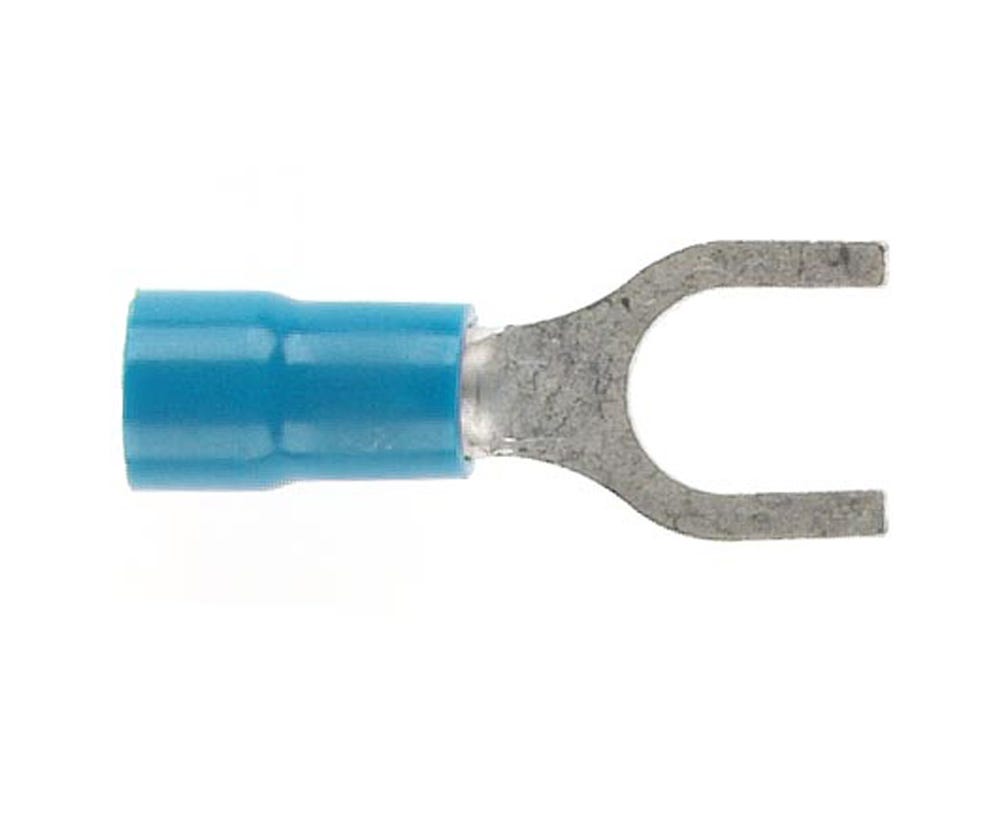

Forked Spade 6MM Blue


The comprehensive range of pre-insulated terminals is continually being developed as switchgear, contactors, terminal blocks etc. evolve.



Pre-insulated Terminal Features

• High quality product meeting International Standards

• Funnel entry terminals allow easy conductor entry, minimising substandard crimps

• Long term electrical integrity

• Voltage rating 300V

• Full technical back up including QA

• Conforms to AS 3169 and AS4437



Note: All terminals should be crimped onto the conductor with a quality crimper that is designed to crimp the specific terminal type.



Technical Data




Conductive Material (Quick Connect Range) Brass 30% Zinc, 70% Copper Tensile Strength 580 MPa Ductile Rating 6% min Final Metal State Annealed Working Temperature Pre-Insulate -40°C to +105°C Brass 145°C Tin plated 160°C


Conductive Material (Except Quick Connect Range) Copper 99.9% Pure Tensile Strength 200 MPa Ductile Rating 35% min Final Metal State Fully Annealed Oxygen Content 50ppm max General Electrical Properties Total Conductivity 99.5% IACS Total Resistivity 1.738 micro-ohm cm


Electroplating Material Tin Tin Content 99.9% Other Metals Lead + Antimony Plating Thickness 2.5 microns Insulation Material PVC for all except nylon 6 or nylon 66 for FIQC Breakdown Voltage 1.5kV (min) Insulation Resistance Above 100 meg ohms Working Voltage Up to 300V AC/DC Conformant Standards AS4437, AS3169 Australia CSA Canada IEC Europe UL Nema USA Demko Denmark DIN VDE Germany Kema Holland JIS Japan; Nemko Norway ASE Switzerland BS United Kingdom




Torque Recommendations


For hardware being metric 8.8 tensile grade.




Thread Dia. (mm)Torque (Nm)


32


43


55


69


822


1044


1277




Nominal Pull Out Force


Pull out should be checked for each tool/terminal combination.




Wire Size (mm–)Pull Out Force kg (N)


0.254.6 (45)


0.506.0 (59)


0.758.6 (84)


1.0010.1 (100)


1.5013.2 (130)


2.5019.6 (192)


4.0026.5 (260)


6.0035.2 (345)


Technical Specifications

Cable Size (mm2): 1.0-2.6

Terminal Colour: Blue

Terminal Type: Fork Spade
