Single Cable Pillar Kit 1

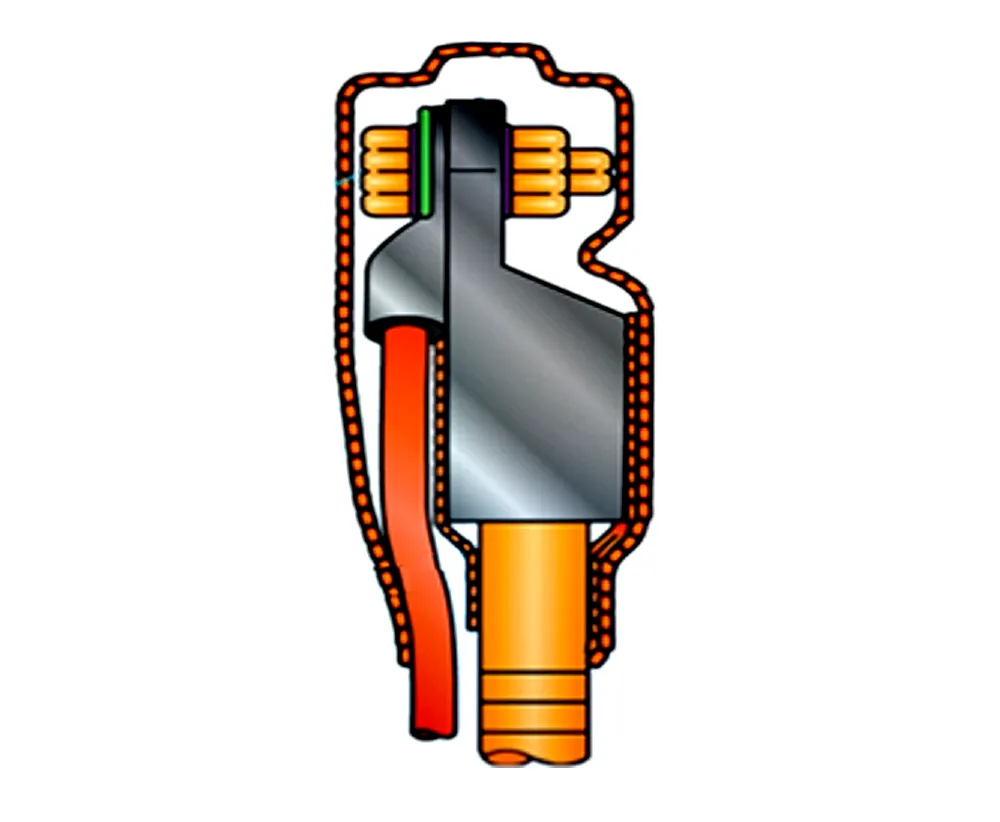

The Cabac crimp type URD system is a standard component kit using standard 240mm? aluminium lugs for mains cables and copper lugs for service cables. The lugs are crimped to their respective cables and fastened to a busbar by stainless steel bolts.
Heatshrink sleeves are shrunk over the cable ends to insulate the lug barrels and a heatshrink end cap is shrunk over the whole connection to give an insulated and weather sealed termination.
Cabac URD terminal blocks (optional extra) are used to connect to the copper service cables tails and from these terminals house services can be tapped off.
The kits are suitable for one pillar with mains cables for three phases and a neutral. The kits are available in three configurations, that is, a single mains cable end, a two mains cables per phase and three mains cables per phase terminations.
The kits come with all items an installer will need to make the mains and T-off connections. Terminal blocks are an optional extra.
Additional information
| For Bulk Orders Please Call: | |
|---|---|
| Brand | |
| MPN | |
| Type | |
| Supplier | Cabac |
