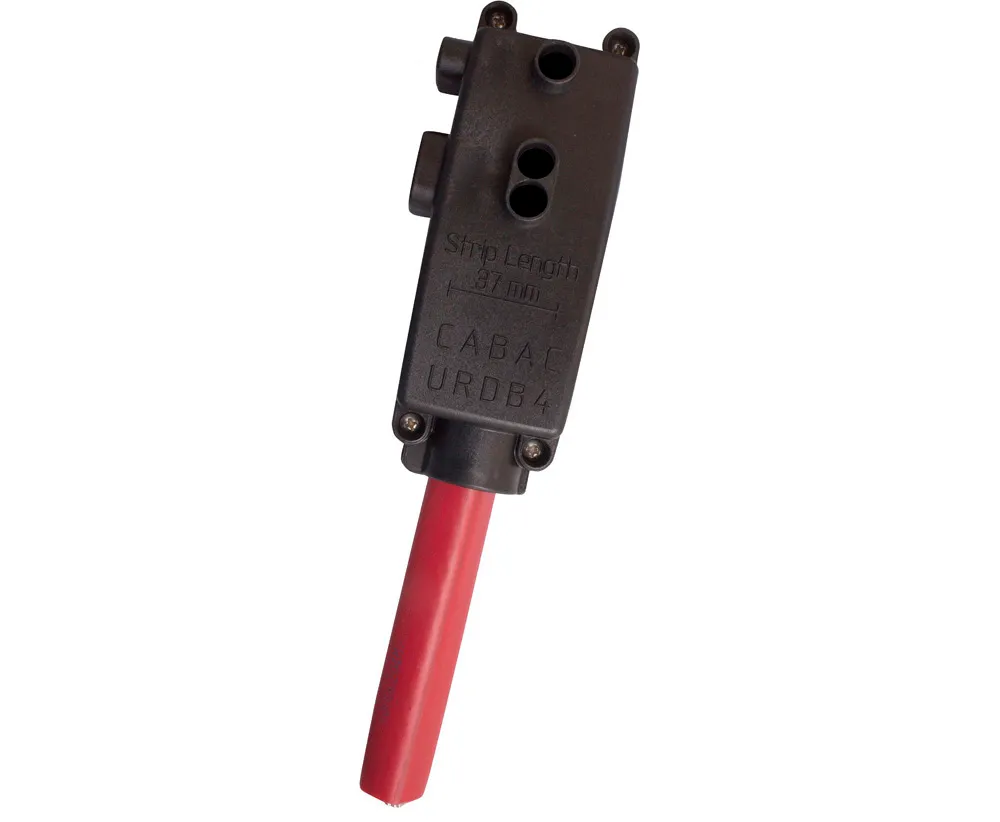

URD Bolted System Double Pillar Kit (2 Way) for 90-120sq mm Conductors
The CABAC URD Connection is designed to make looped pillar connection systems quick and easy, by eliminating many of the components and the tedious crimping needs of current practices.
The heart of the system is a patented lug of unique design, that is both range taking and multiple cable acceptable.
The connection principle is via proven shear head technology, eliminating the need for crimping tools, dies and the attendant operator skills necessary for good connection.
The unique palm incorporates an inbuilt terminal block offering a series of range-taking tunnels 6 (in the case of looped pillars) with a maximum capacity of 50mm?.
To create the loop, connectors are bolted back to back, using two or three way bus bars which allow branch off connections to be made with ease.
The connector system is a true bi-metal system with the lug manufactured from high grade electrical aluminium which is then copper plated and tin plated finally to produce a connector for use with both copper and aluminium cables.
The installation is simplicity in itself requiring only a small number of hand tools, Allen keys for shear bolts and cable connection spanners to connect the bus bar and a screwdriver to complete the cover.
The system has been extensively tested and meets the full requirements of AS4325 for both stranded and solid conductors.
The covers meet finger-safe concepts and the requirements for a 1000 volt-proof cover. The cover is manufactured from glass-filled nylon, providing an extremely tough and durable cover system.
Additional information
| For Bulk Orders Please Call: | |
|---|---|
| Brand | |
| MPN | |
| Type | |
| Supplier | Cabac |
