Automate your lighting with the ENSA-RS1 and Watchguard™ universal transmitters.
Product features:
• 240VAC 433.92MHz fixed code receiver with up to 100m RF range (LoS)
• Remote control your LED lighting for added security and energy savings
• Integrate wireless PIR and reed switches for automatic activation of lights
• Features 2 programmable relay outputs (latched or timed)

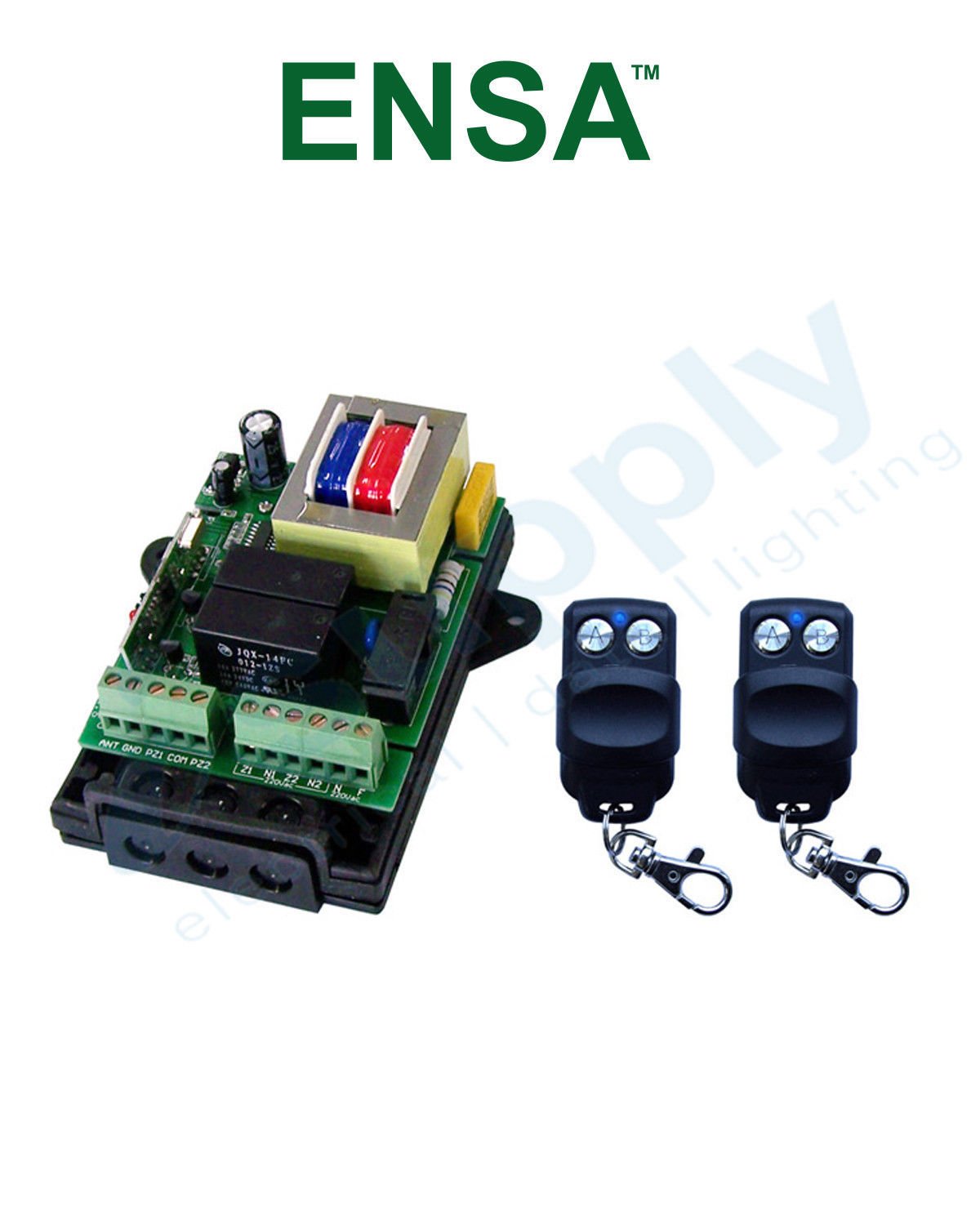

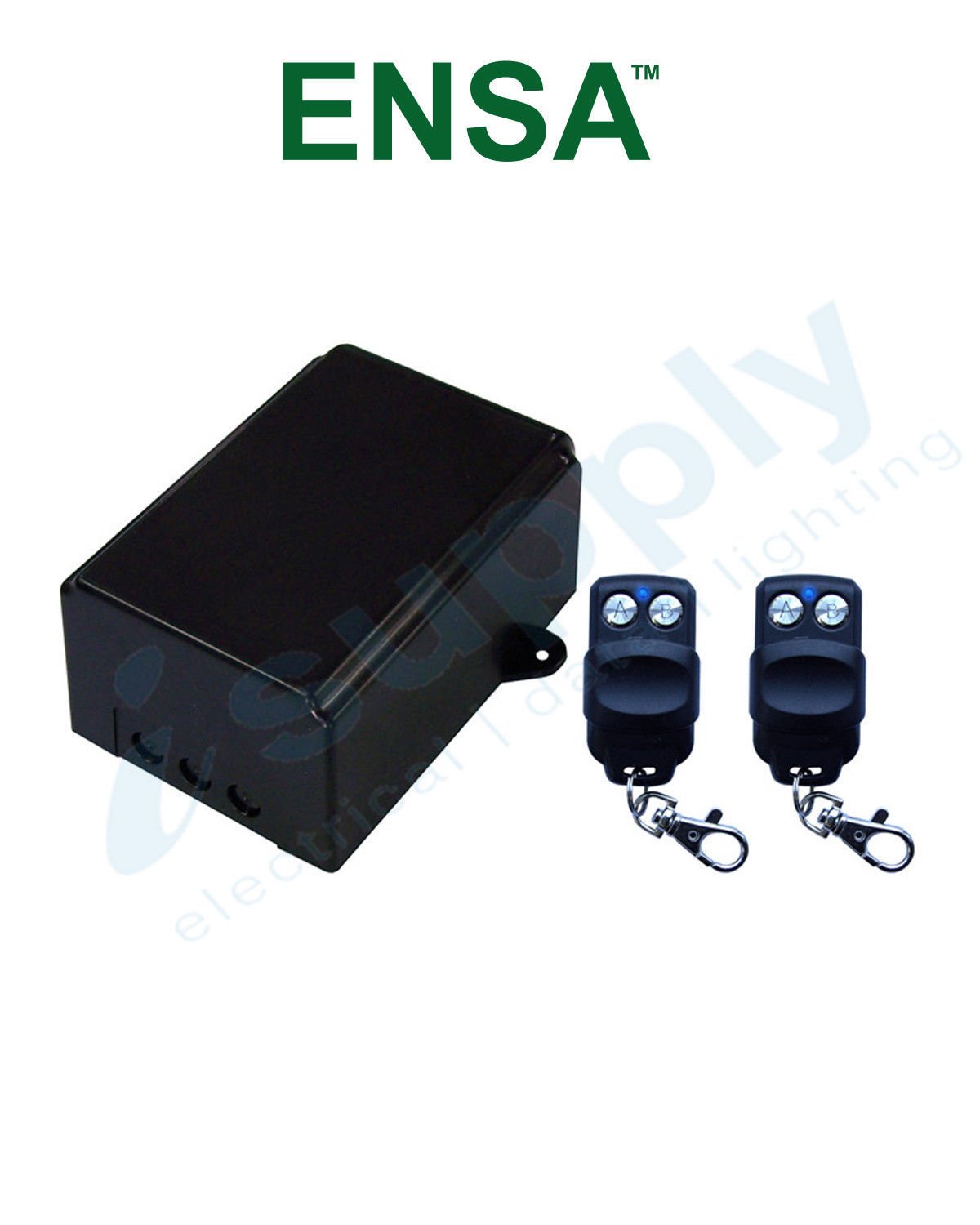

• Comes standard with two remote control keyfobs
• Adding outdoor remote control function for your light switch
• Add up to 128 remotes or universal transmitters
• IP55 weather/dust resistant; suitable for mounting with lighting
• 3 year warranty
Integrates with Watchguard™ wireless universal transmitters*:
PIRWOD Wireless outdoor passive-infrared detector
WREEDI Wireless reed switch indoors only
PIRW3 Wireless passive-infrared detector
* Universal transmitters require modification and are sold separately.
SPECIFICATIONS
Frequency: 433.92MHz fixed code
Included Remotes: 2
Ingress Protection: IP55
Input Voltage: 240VAC 50 ~ 60Hz
Maximum Codes: 128
Maximum Rated Load: 1000W
Operating Environment: -20 ~ 55°C
Programmable Outputs: 2 relay outputs (latched or timed)
Range (LoS): 100m
Warranty (Years): 3
Shipping Weight and Dimensions
Includes product packaging
Width: 210 mm
Height: 120 mm
Depth: 70 mm
Weight: 0.50 kg
