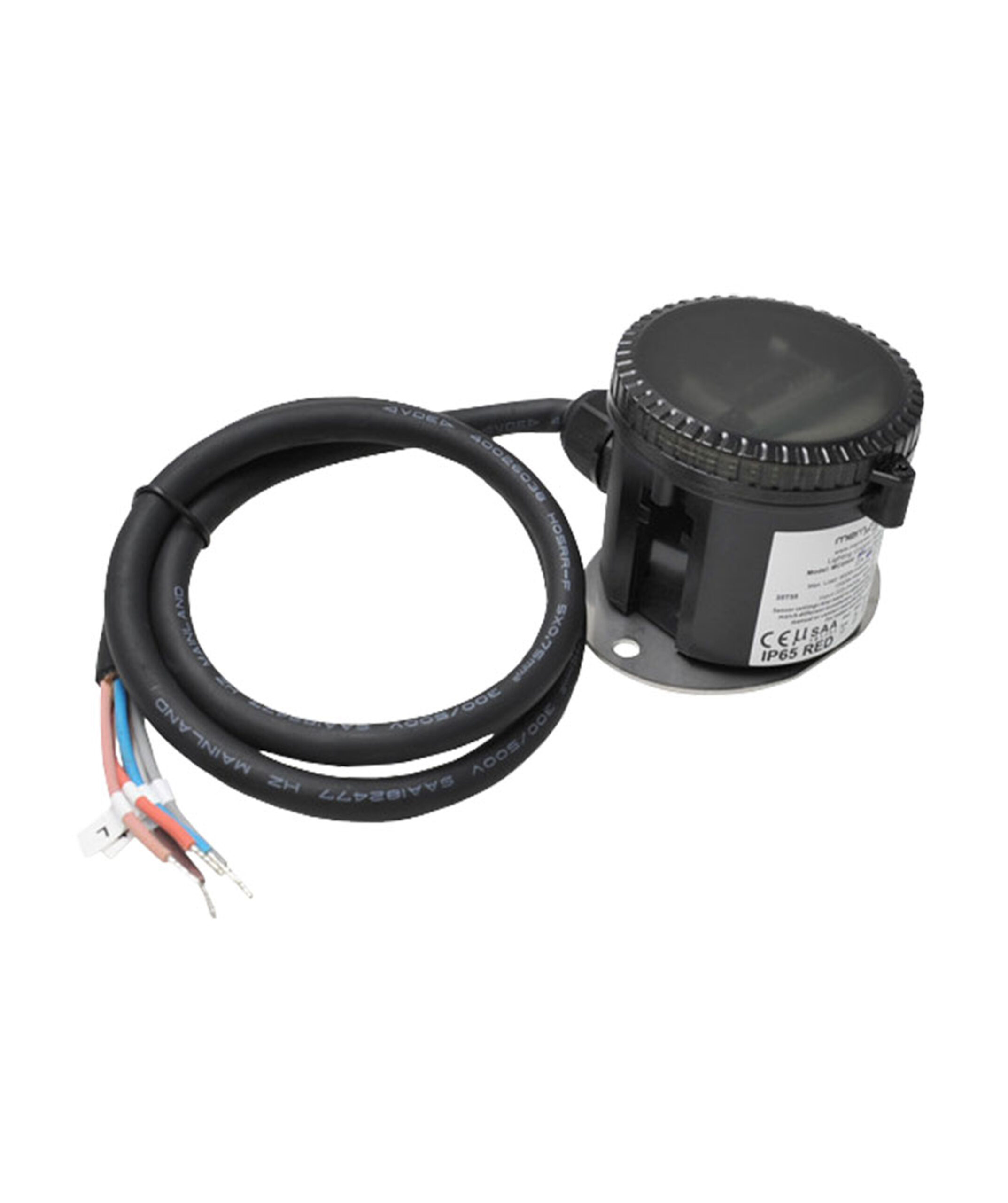

The ENSA-MS8 is an intelligent sensor switch, designed for high ceiling environments. It features ambient light sensing, microwave motion detection, dimming interface and configurable on-time delay, so you may tailor light usage and energy consumption to your exact specifications.
Add three step energy saving to any light with sensor switches:

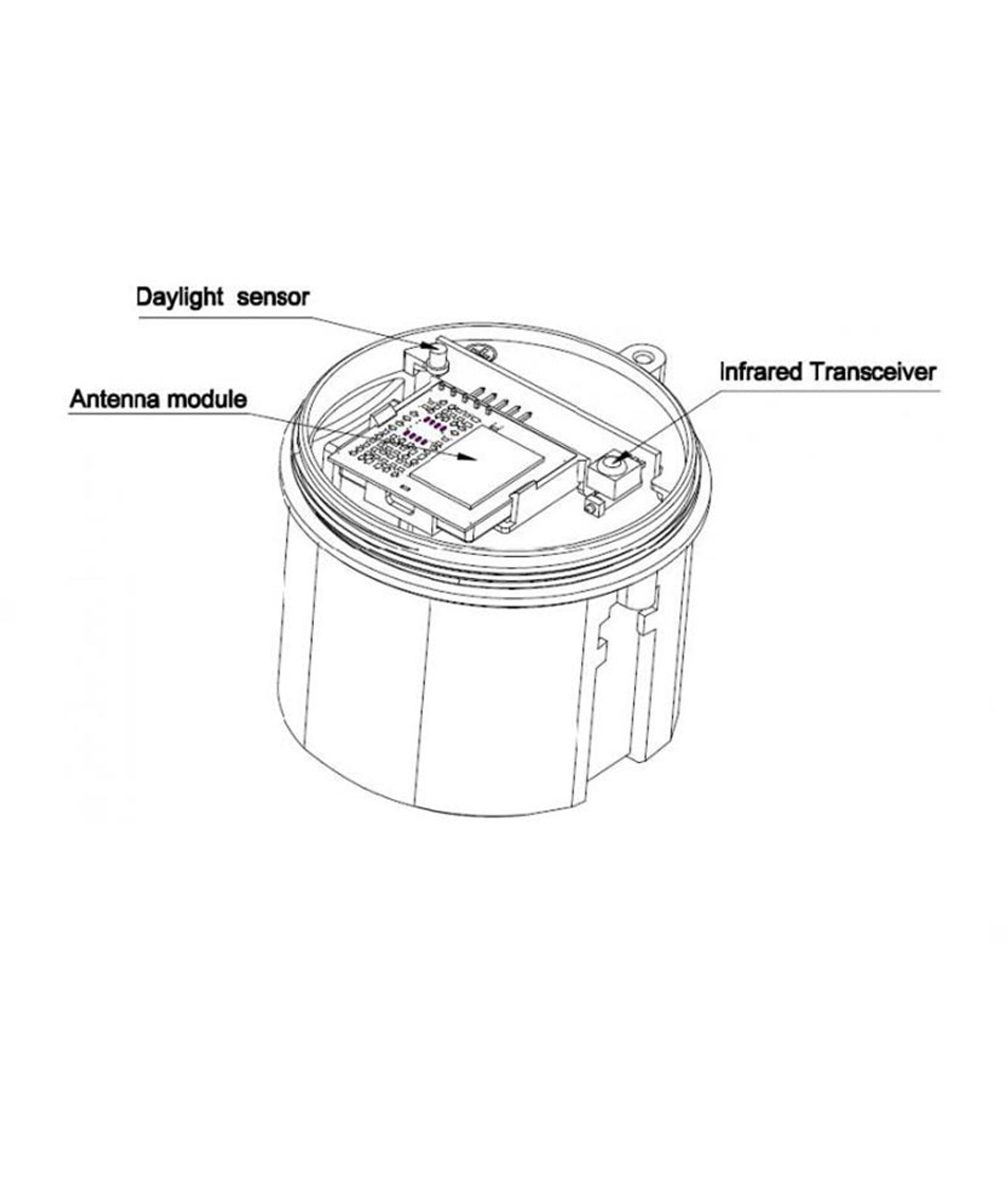

1) Daylight sensor: Activates motion sensor when lux levels fall below limit
2) Motion sensor: Detects movement, turns light on only when necessary
3) On-timer: Light-on duration is set only as long as is required
Product features:
• Automatically activate and deactivate lighting for energy efficiency
• Suitable for high bay LED lights
• Adjustable sensors: Dimming (10~50%) / Motion sensitivity (25~100%) / On-timer (5s~30min)
• 360° (ceiling) / 150° (wall) (15m height) microwave detection
• Purpose built for high factory ceilings, IP65 rated for outdoor use
* Requires the ENSA-MSRC1 remote control to adjust sensor parameters
SPECIFICATIONS
Features:
Daylight Sensor: Yes
Motion Sensor Type: Microwave
Electrical:
Input Voltage: 220 ~ 240VAC 50Hz
Power Consumption (Sensing Mode): <1W
Max. Rated Load (Resistive/Inductive): 1200W / 800W
Detection:
Daylight Sensing: 5lux / 15lux / 30lux / 50lux / 100lux / 150lux / Disable (Ambient light diffusion)
Motion Detection Area: 360° (Ceiling) / 150° (Wall) 15m
Motion Detection Adjustment: 100% / 75% / 50% / 25%
Recommended Installation Height: 15m
Motion Detection Speed: 0.3 ~ 1m/s
On-timer Delay: 5s ~ 30min
Stand-by Period: 5s / 5min / 10min / 30min / 60min / Infinite
Stand-by Dimming: 50% / 30% / 20% / 10%
General:
Ingress Protection: IP65
Operating Environment: -35 ~ 55°C
Mounting Type: Ceiling/Wall

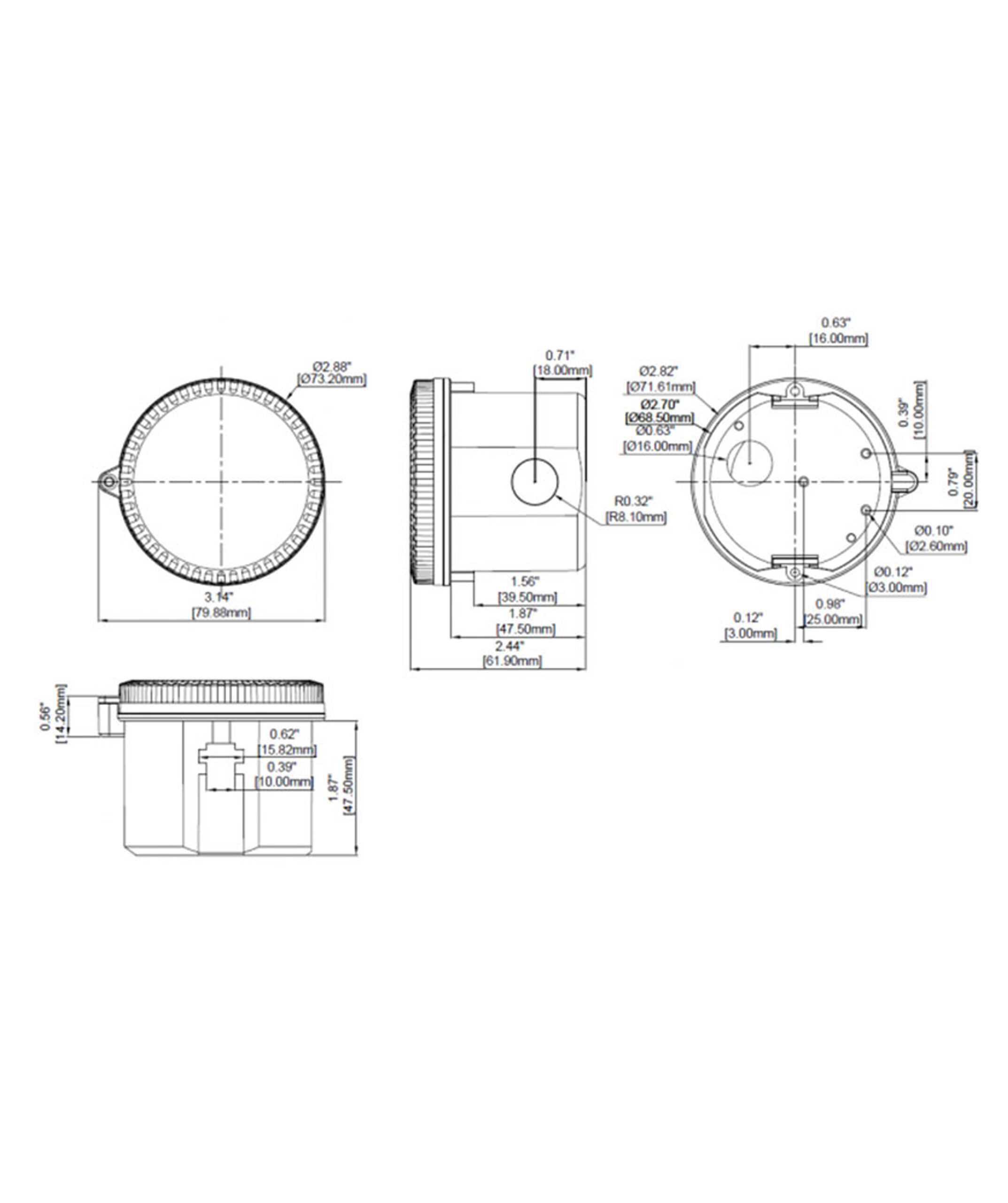

Dimensions: Ø73 x 62mm
Other:

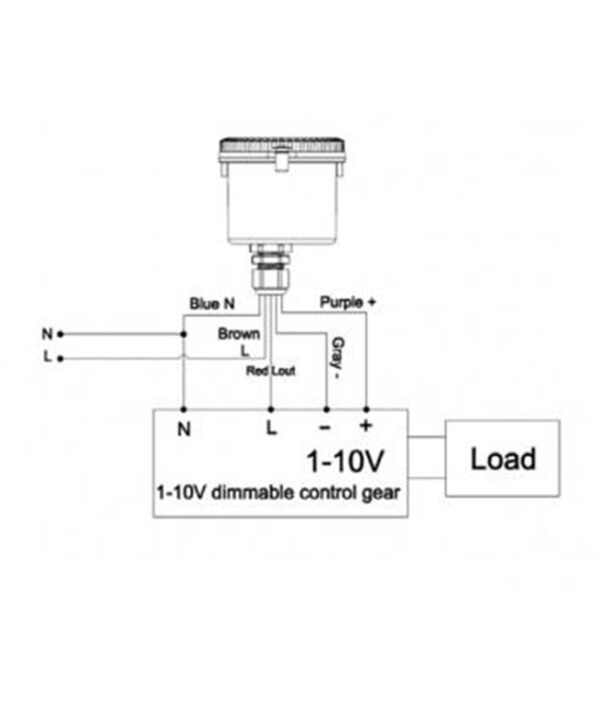

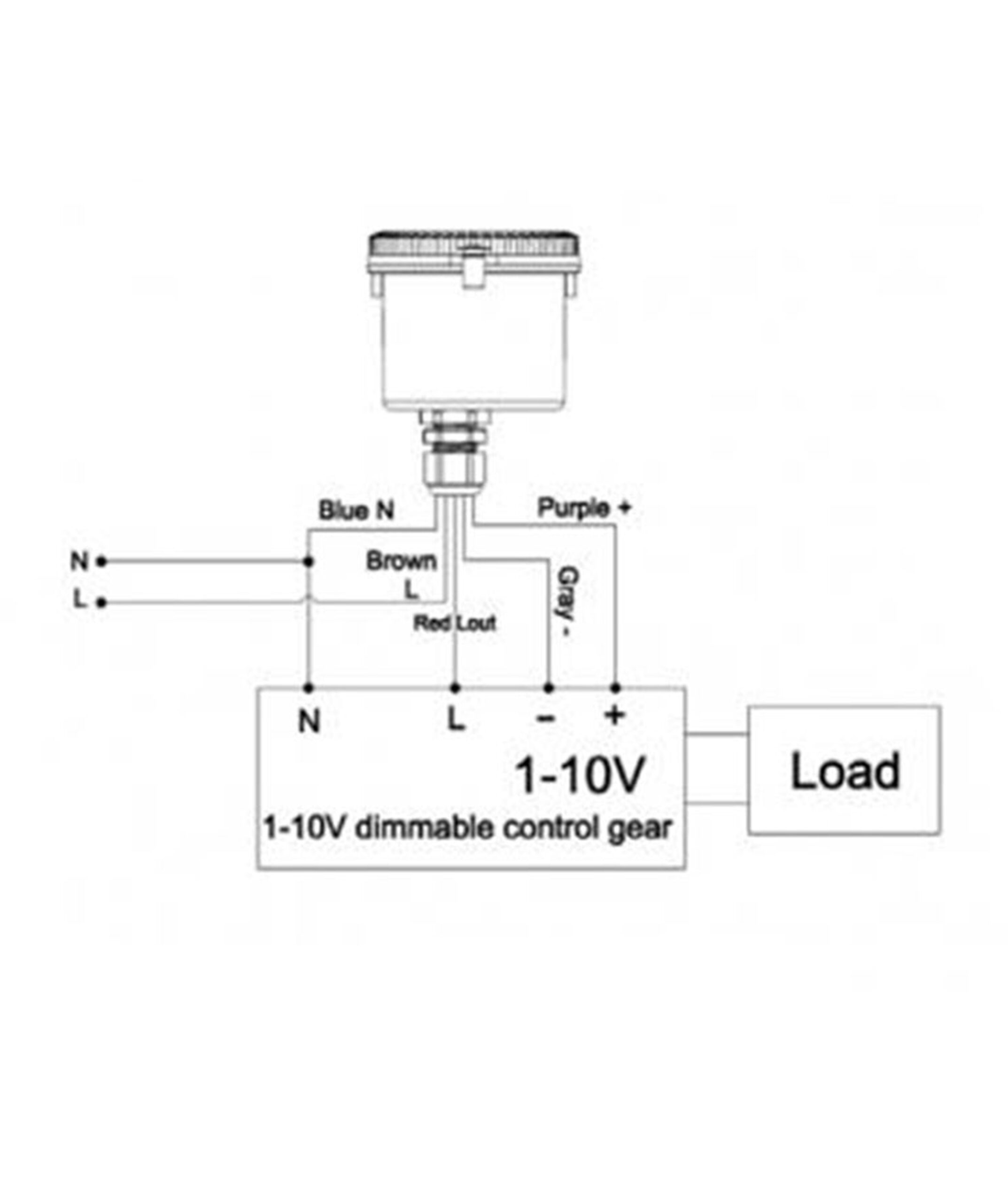

1 ~ 10V Step Dimming: < 50mA (Non-constant source) / 10%(1.4-1.6V), 20%(1.9-2.1V) / 30%(2.9-3.1V), 50% (4.9-5.1V)
Load Capacity: 120VAC: 4A; 220-277VAC: 3A
Rec. Installation Height: 15m Max.
Warranty (Years): 3
Shipping Weight and Dimensions
Includes product packaging
Width: 110 mm
Height: 105 mm
Depth: 100 mm
Weight: 0.25 kg
