2 channel 360-degree surface mount presence detector with quick plug-in terminal block, provides efficient reduction in energy consumption
Conduit knockouts make this device perfect for surface mounting in concrete ceilings
10m detection range, manual override feature and up to 1 hour time delay
LED 400W, AC Halogen 1000W, Incandescent 2000W, Fluorescent 900VA
Lux adjustment from 10 to 2000 lux
Product Description

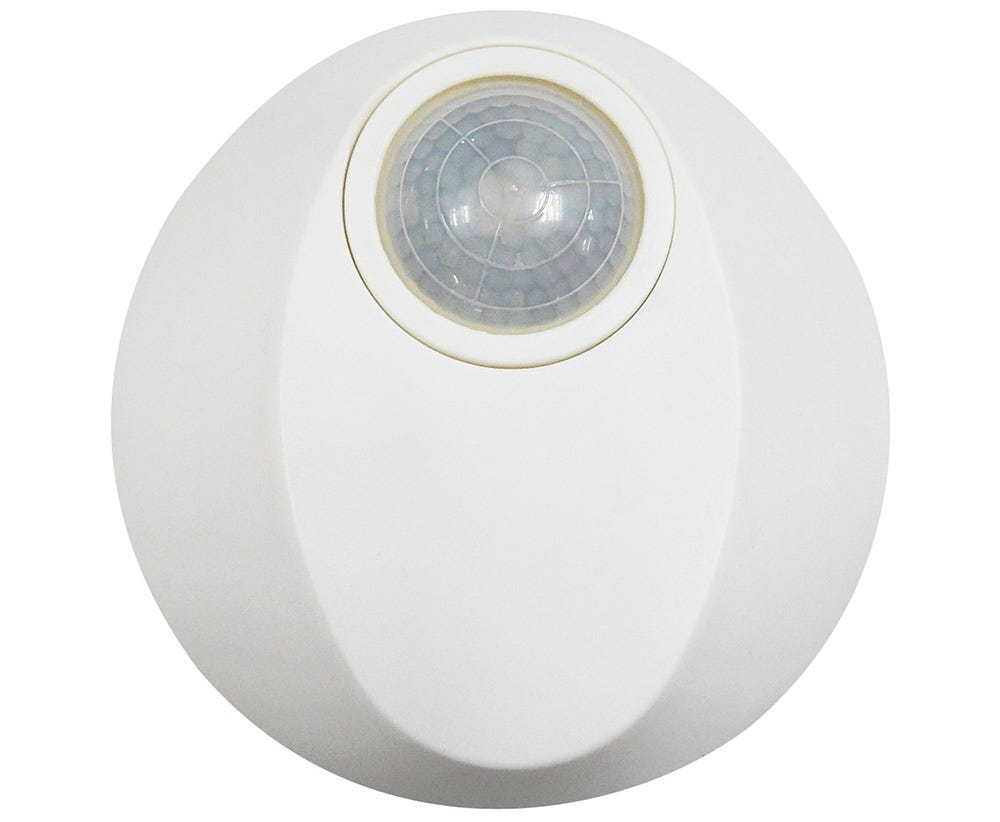

The CPD-360SM/2 is a powerful presence detector designed to improve energy efficiency whilst maintaining a comfortable working environment in industrial and
commercial settings. Suitable for lighting and HVAC automation control, the device features a 360-degree circular detection range and adjustable auto-off capability.
A huge amount of energy is used running lighting, heating, ventilation and air conditioning to create favourable working conditions. Energy control systems that
neglect the occupancy status of the room can result in energy wastage and excess cost. The CPD-360SM/2 is the presence detector to bridge the gap and provide an
efficient reduction of energy consumption for your energy saving management system.
The CPD-360SM/2 features advanced PIR technology that reacts intelligently to the presence or absence of people, allowing you to conveniently reduce energy
consumption when an area is not in use. The product incorporates unique knockouts for 16mm conduit - a convenient feature that makes it suitable for surface
mounting in concrete ceilings. The built-in red LED acts as an indicator for test triggering and IR setting. Manual override for lighting on 8 hours is enabled by using IR
remote control. The design also includes a quick plug-in terminal block for rapid, low-fuss wiring.
Operating Specifications and Technical Data
Detection Range: 360 degrees circular, up to 10m at height of 2.5m
Operating Temperature: 0 to +45 degrees Celsius
Environmental Protection: IP44
Auto Off Timer Adjustment
Time 1 (for lighting): Adjustable from approx. 5sec to 30min and test
Time 2 (for HVAC): Adjustable from approx. 10 seconds to 60 minutes
Electrical Data
Rated Voltage: 220 - 240V /60Hz
Load
Load I (CH1) for Lighting:
Incandescent Lamp: max. 2000W
AC Halogen Lamp: max. 1000W
LV Halogen Lamp: max. 1000VA / 600W (traditional)
LV Halogen Lamp: max. 1000VA / 900W (electronic)
Fluorescent Lamp: max. 1000VA/600W (uncompensated), max. 900VA /100uF
25 x (1 x 18W); 12 x (2 x 18W)
15 x (1 x 36W); 7 x (2 x 36W)
10 x (1 x 58W); 5 x (2 x 58W)
LED Lamp: max. 400W
Energy Saving Lamp: max. 600VA/400W (include CFL & PL lamp)
Load II (CH2) for HVAC (voltage free contact, Lux is invalid):
Max. 5A (cos = 1) for 250VAC
Max. 3A for 30VDC
Max. 1A (cos = 0.4) for 250VAC
Technical Specifications
Detection Range (m): 7
Number of Channels: 2
Mounting Type: Surface, Ceiling
Surface Mount: No
Ceiling Mount: No
Lamp Compatibility: Incandescent, Halogen, Fluoroscent, LED, Energy Saving
