Slave device suitable for use with the 2 channel ceiling mount presence detector (part no. CPD-360/2)
10m detection range, manual override feature and 30 minute off delay
Lux adjustment from 10 to 2000 lux, with unique lens tilt feature
LED 400W, AC Halogen 1000W, Incandescent 2000W
Fluorescent 900VA compensated, 1000VA uncompensated
Product Description

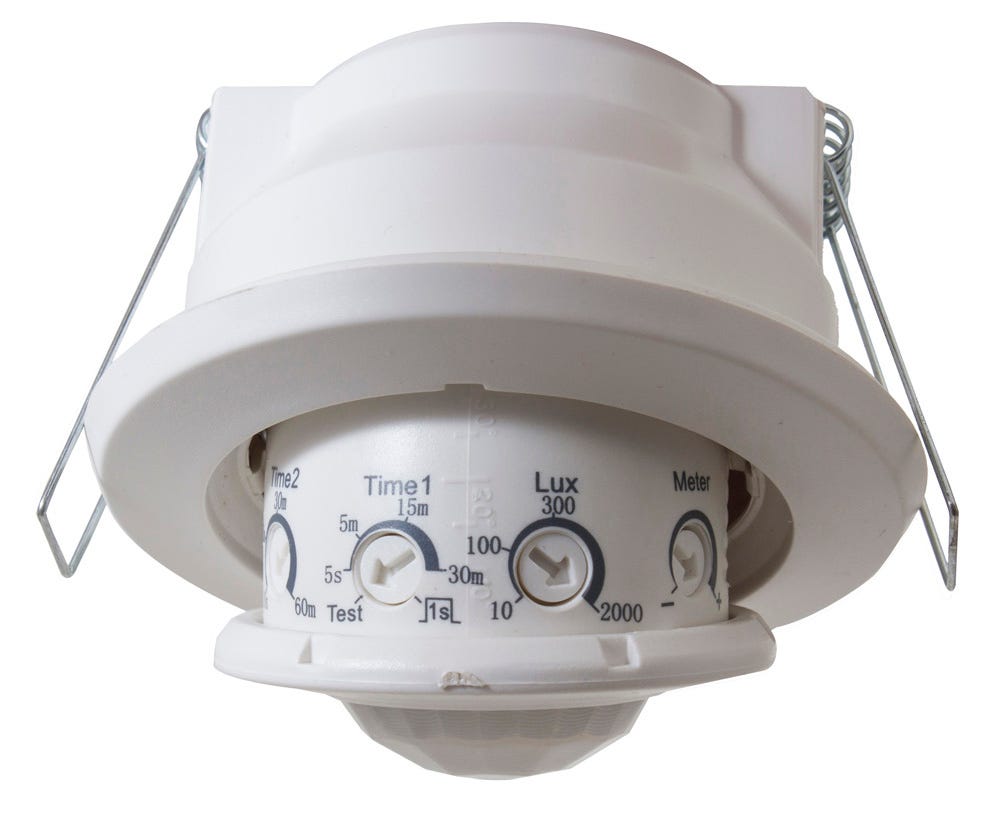

The S-Click CPD-360/2S is a slave detector device designed to be connected to the power box of our CPD-360/2 Presence Detector in order to expand detection
coverage.
The device features down light construction to enable quick and seamless mounting in various ceiling board thicknesses. This omni-directional quad element detector
has a unique lens to provide "no dead spot" zones and superior sensitivity in its 360-degree detection coverage. The detection beams are well distributed and
concentrated over the detection coverage, allowing our CPD-360/2S to detect even the smallest movements.
Technical Data
This slave detector device is suitable for use with our CPD-360/2 only.
Rated Voltage: 230V ~ +/- 10% 50/60Hz
Operating Temperature: 0 to +45 degrees Celsius
LUX Adjustment: Adjustable from 10 Lux to 2000 Lux
Detection Range: 10m dia. at 2.5 - 3m
Length of signal cable: 8 metres
Refer to the product datasheet for product dimensions and electrical data information.
Technical Specifications
Detection Range (m): 10
Number of Channels: 2
Mounting Type: Ceiling
Surface Mount: No
Ceiling Mount: No
Lamp Compatibility: Incandescent, Halogen, Fluoroscent, PL
