Slave device for use with the high performance 2 channel presence detector (part no. CPD-360P)
Off delay settings: CH 1 (lighting) 5 sec to 30 min, CH 2 (HVAC) 10 sec to 60min
30m detection zone, up to 10 slaves extend detection zone even further
Recessed or surface mount with junction box included
Optional IR remote control
Product Description

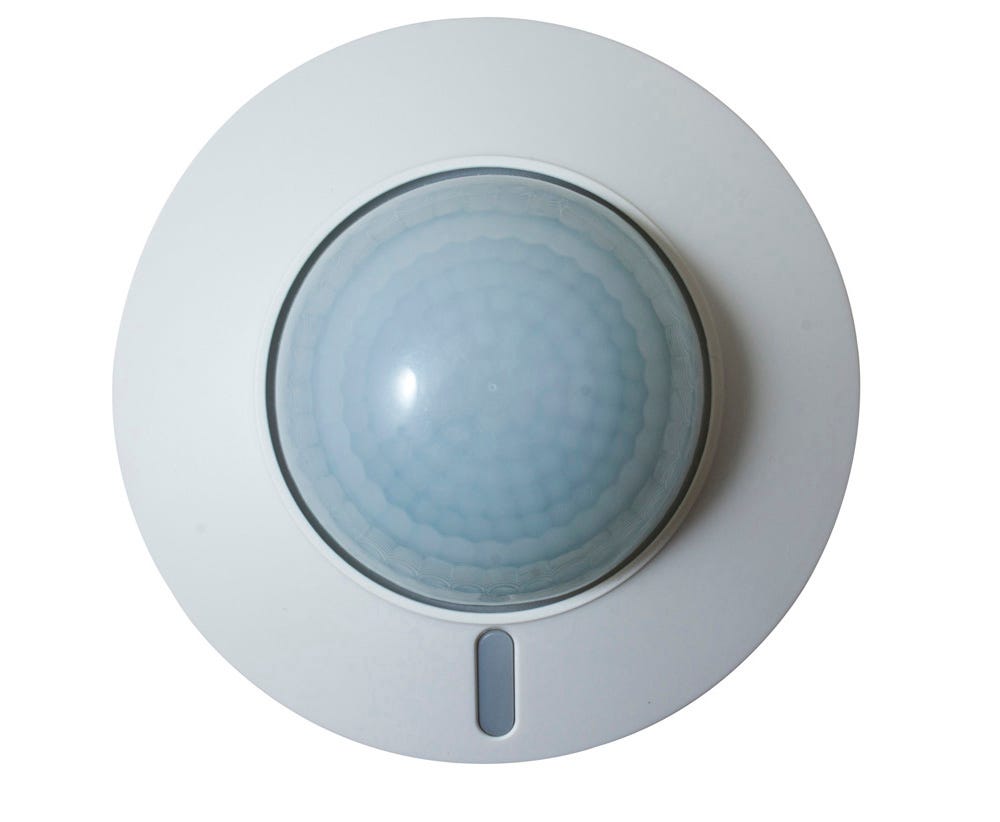

The CPD-360P-SLAVE is a slave unit for use in connection with the CPD-360P PIR presence detector. The product is suitable for lighting or HVAC automation control and
is designed to extend the detection coverage provided by the master device.
A slave detector works as a movement register to send a signal to the master detector. Under this mode, load will perform according to the settings of the master
sensor. Up to 10 slave units can be attached to each CPD-360P. Refer to the product datasheet for a visual diagram of the detection coverage that this system
provides.
The CPD-360P-SLAVE is suitable for halogen, fluorescent and LED lighting, and features impulse mode for switching a staircase timer. The device has a 360-degree
detection angle with a detection lens shield to allow for the angle to be adjusted. Suitable for flush mounting or surface mounting with the included junction box.
Operating Specifications and Technical Data
Detection Angle: 360 degrees
Detection Range: Diameter 30M
Environmental Protection: IP40 (IP54 with junction box included)
Operating Temperature: -20 to +45 degrees Celsius
Electrical Data
Rated Voltage: 220 - 240V ~ 50/60HZ
Technical Specifications
Detection Range (m): 30
Number of Channels: 2
Mounting Type: Surface, Ceiling
Surface Mount: No
Ceiling Mount: No
Lamp Compatibility: Incandescent, Halogen, Fluoroscent, LED, Energy Saving
Additional information
| Material Group | OB |
|---|---|
| EAN | |
| Brand | |
| Type |
