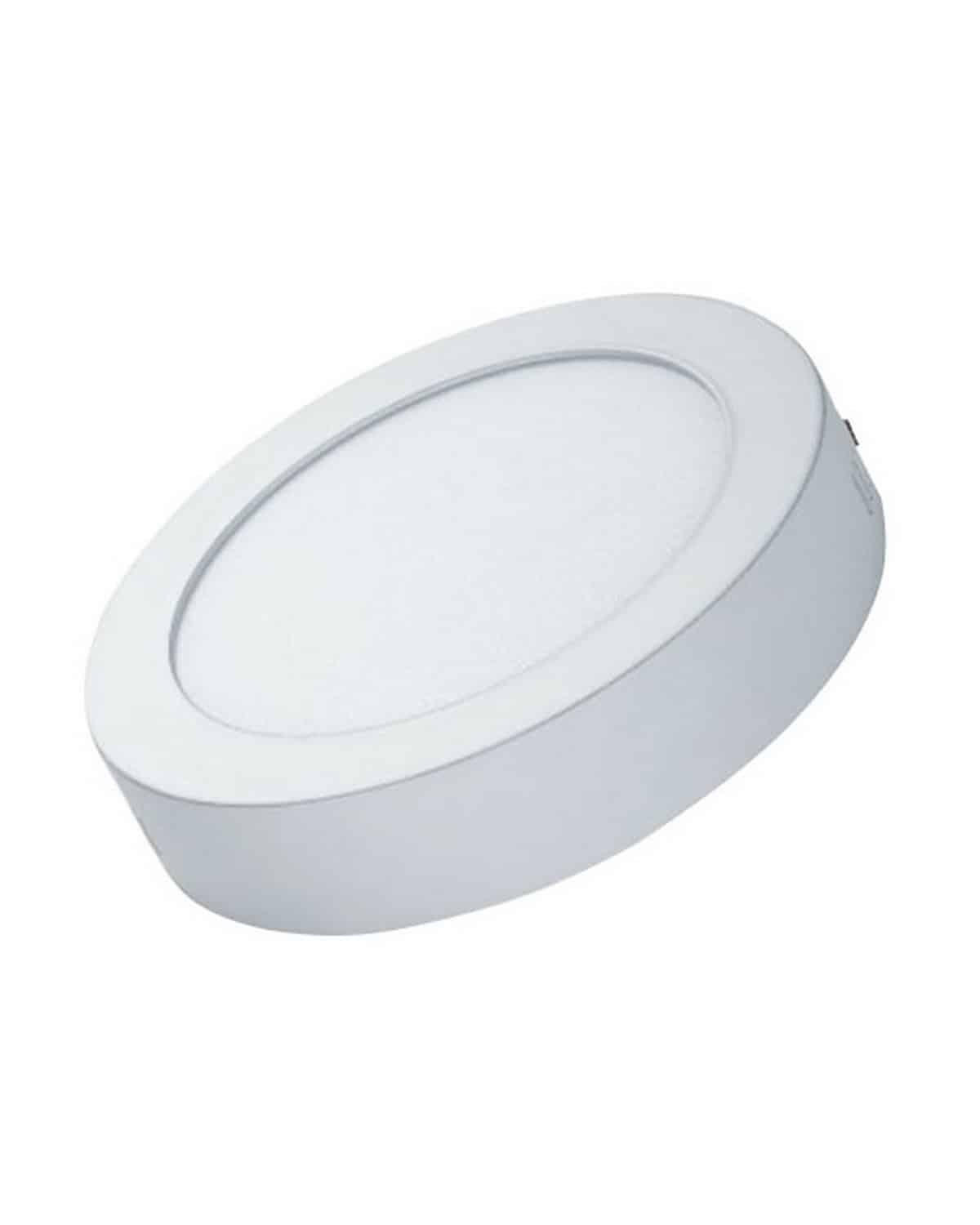

The LDL-DS12-C is a 12W surface-mounted LED downlight with a cool white colour temperature. This downlight offers stylish & efficient general purpose lighting with a simple U-bracket for easy installation.
Product features:
• 840lm light output at 70lm/W efficacy
• 6000K cool white colour temperature
• Long-lasting 35,000 hour LED lifespan
• Frosted diffuser for low-glare, pleasing LED lighting
• Surface-mounted installation

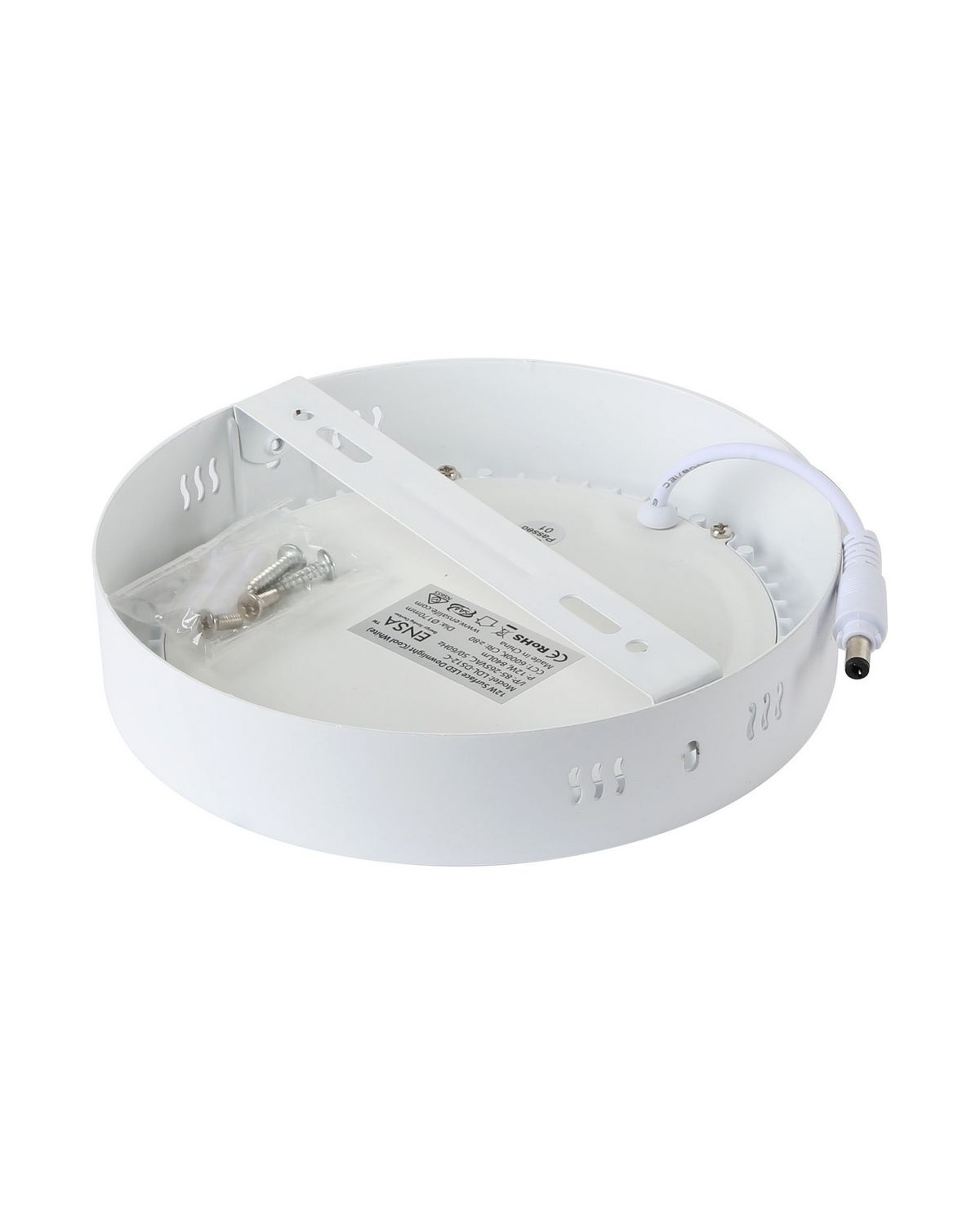

• Includes mounting kit with screws & wall plugs

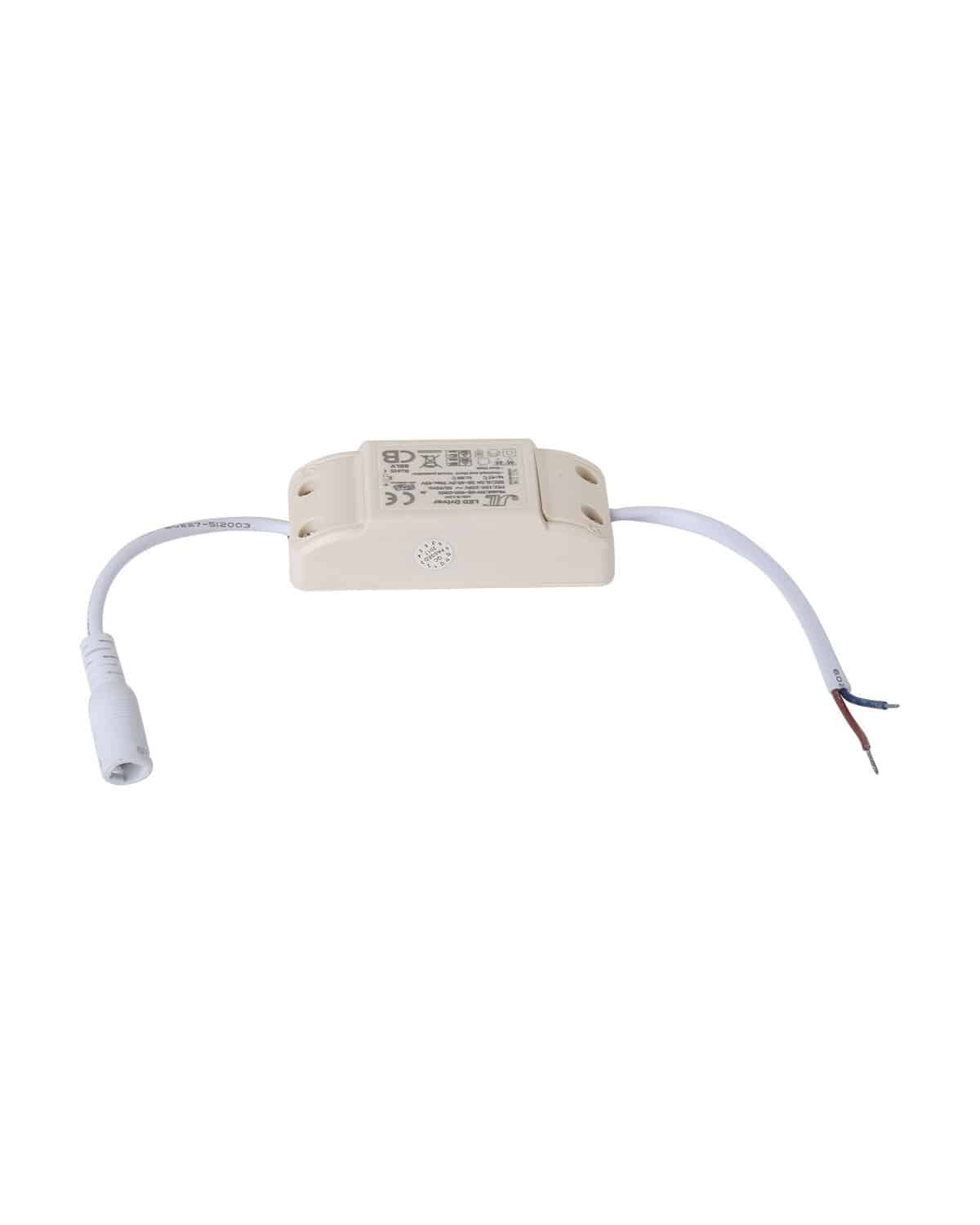

• No power plug, includes LED driver
SPECIFICATIONS
Optical:
Light Output: 840lm
Luminous Efficacy: 70lm/W
Colour Temperature: 6000K
Colour Rendering Index: > 80
Beam Angle: 110°
Light Decay: TBA
Rated Lifespan: >35,000 hours
Electrical:
Power Consumption: 12W
Input Voltage: 85-265VAC
Power Factor: > 0.5
Dimmable: No
General:
Plug / Socket / Base: No plug, includes external driver
Reflector / Diffuser: Frosted diffuser
Housing Adjustments: N/A
IPART Accepted: TBA
Ingress Protection: IP54
Operating Environment: -30 ~ +50°C
Dimensions: Ø170 x 35mm
Hole Cut Size: N/A
Warranty (Years): 1
Shipping Weight and Dimensions
Includes product packaging
Width: 190 mm
Height: 180 mm
Depth: 50 mm
Weight: 0.45 kg
