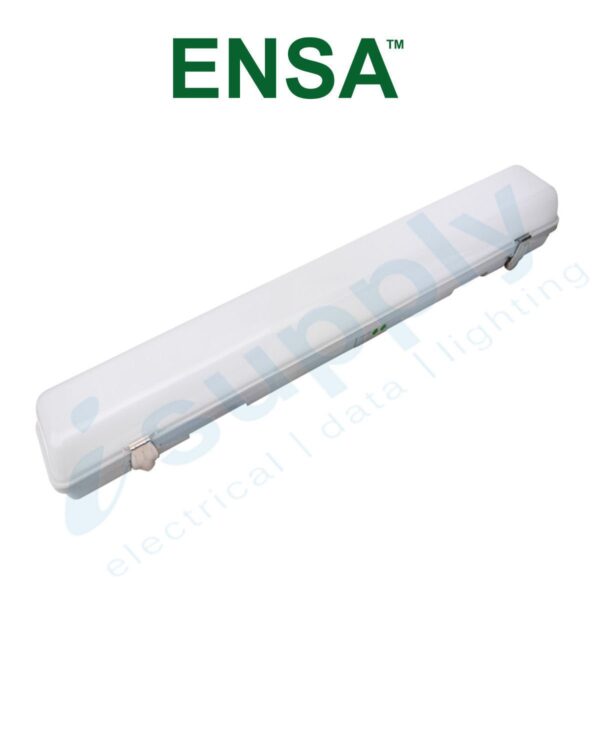

The ENSA™ LED batten light series comprises customisable energy efficient lighting solutions that deliver control over your lighting, without the need for a complex management system. Models are available as standard sensor batten lights or as an emergency sensor batten light fitted with an emergency backup battery for over 5 hours light uptime.
Intelligent emergency battens feature motion detection, on-time delay and standby time delay functions to tailor your light use for efficiency & practicality. Each model features 2-stage dimming and can be configured to stay at 100% brightness, to dim and then turn off, or to dim and stay dimmed.
• Tailor your light use to further compound energy savings.
• Adjustable light-use controls such as on-time delay.
• Sensor can detect motion through glass and thin walls.
• Built tough housing: IP65 dust and weather resistant.
• Emergency lighting models are AS2293.3 approved.

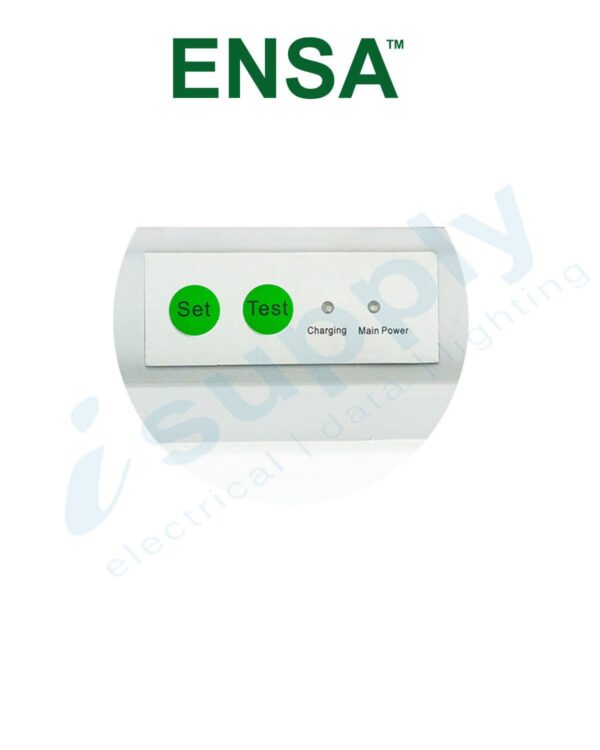

• Easy access TEST button for emergency light testing.
• NSW ESS Accepted
SPECIFICATIONS
Optical:
Light Output: 1980lm
Luminous Efficacy: 110lm/W
Colour Temperature: 6000K
Colour Rendering Index: > 80
Beam Angle: 126°
Light Decay: L70 at 54,000 hours
Rated Lifespan: 54,000 hours
Electrical:
Power Consumption: 18W
Input Voltage: 220 ~ 240VAC (50 ~ 60Hz)
Power Factor: >0.95
Battery Backup: 6.4V 3000mAh LiFePO4
Emergency Power Output: 3.6W / 5 hours uptime
Control:
Motion Detection: 360° 5.8GHz Microwave / 8m max. radius / 50% ~ 100% adjustable (default: 100%)
On-Time Delay: 5s / 30s / 90s / 180s (default: 90s)
Dimmed Brightness: 20% / 40% / 60% / 100% (default: 20%)
Dimming Timeout: 0s / 90s / 180s / ∞s (default: ∞s)
Dimming Description: Turn off / Time delay / Always on
General:
Ingress Protection: IP65
Plug / Socket / Base: Internal terminal block
Installation Materials: Mounting clips, mounting screws & wall plugs, cable
Reflector / Diffuser: Frosted diffuser
Operating Environment: -20° ~ 40°C
Dimensions: 655 x 108 x 85mm
Certifications: IPART
Other:
Ambient Light Sensor: N/A
Dimmable: Yes
Equivalent Wattage: N/A
Motion Activated: Yes
NSW ESS Accepted: Yes
Standby Light Modes: N/A
Warranty (Years): 3
Additional information
| Manufacturer | |
|---|---|
| Weight | 1.04 |
