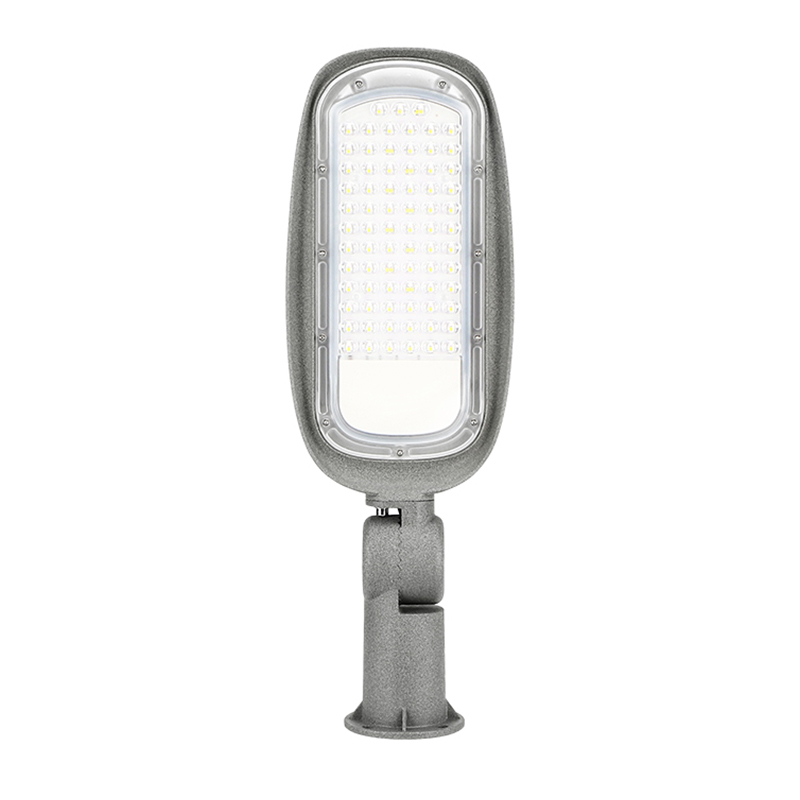

The AVOL LSL-C Series comprises versatile LED lights that deliver high performance street and area lighting. Fitted with driver-on-board technology, these luminaires offer impressive lighting in a compact, weather resistant aluminium chassis.

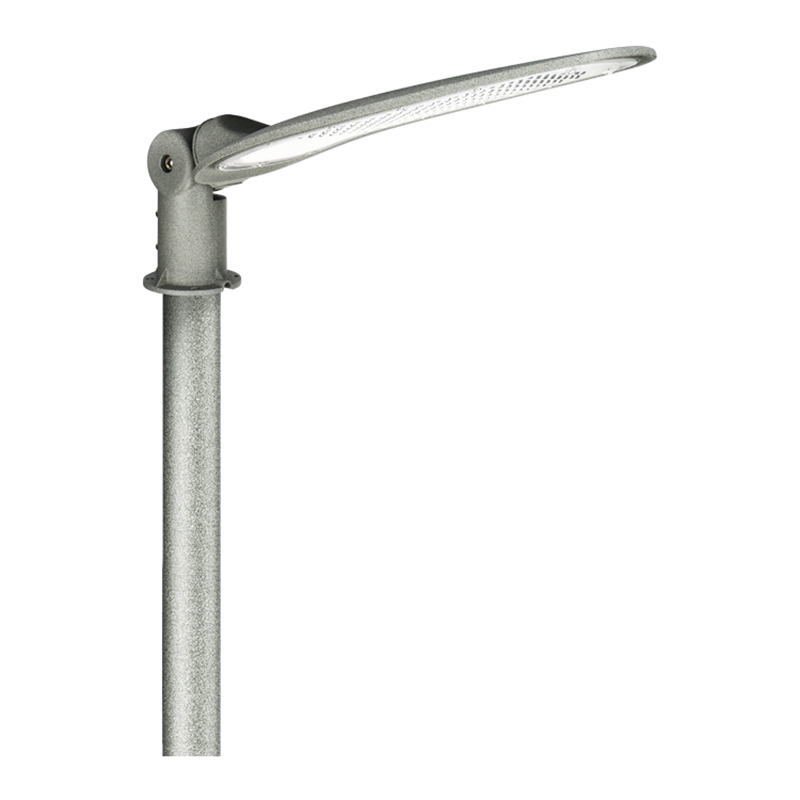

LSL-C Series lights feature a 180° adjustable pole mount and can be fitted to vertical or angled fittings. They are ideal for illumination in street lighting applications, in area lighting for public spaces and for general purpose lighting in a variety of commercial and industrial building environments.
Product features:
• 200W LED flood light with 22000lm light output
• High 110lm/W luminous efficacy for energy efficiency
• 6000K cool white colour temperature
• 90° x 130° beam angle
• Driver-on-board technology for compact size & affordability
• Slimline, aluminium, IP65 weather rated enclosure
• Adjustable base with 180° of vertical rotation
• Ø62.1mm pole slip fit installation
* Pole not included
Optical
Light Output: 22000lm
Luminous Efficacy: 110lm/W
Colour Temperature: 6000K
Colour Rendering Index: > 80
Beam Angle: 90° x 130°
Light Decay: N/A
Rated Lifespan: 35,000 hours
Electrical
Power Consumption: 200W
Input Voltage: 100 ~ 277VAC
Power Factor: > 0.9
Dimmable: N/A
Motion Activated: N/A
General
Ingress Protection: IP65
Plug / Socket / Base: Unterminated (H05RN-F 3G0,75mm²)
Reflector / Diffuser: Polycarbonate lens
Housing Adjustments: 180° adjustable housing
NSW ESS Accepted: No
Operating Environment: -20° ~ 50°C

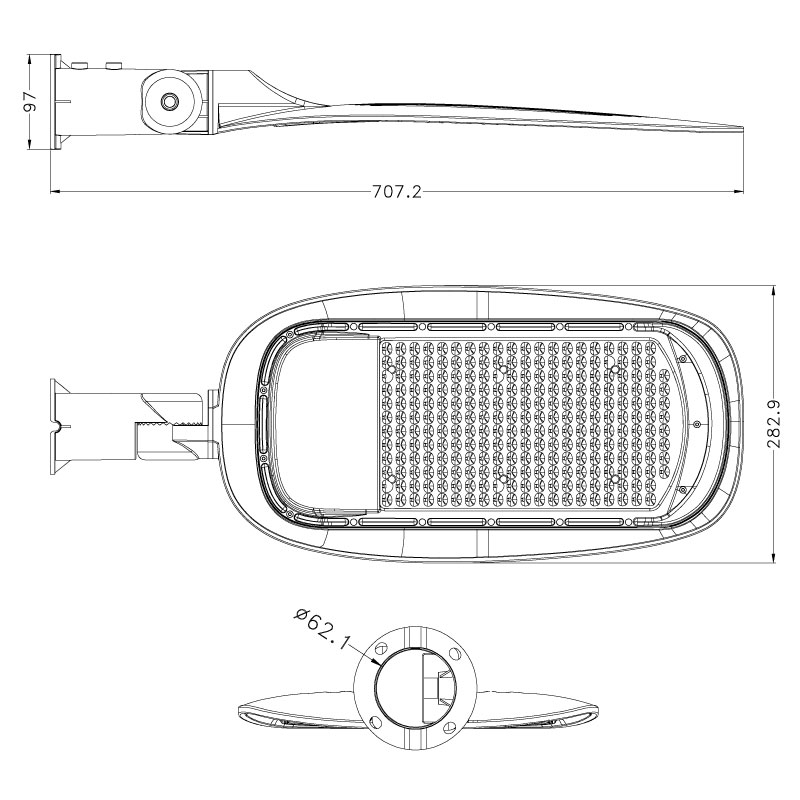

Dimensions: 645 x 283 x 97mm
Other
Pole Installation: Ø62.1mm (Max.)
Warranty (Years): 3
Shipping Weight and Dimensions Includes product packaging
Width: 300 mm
Height: 730 mm
Depth: 120 mm
Weight: 3.50 kg
