Overview
The ENSA LEDHB series of LED high bay lights comprises professional grade LED luminaires with superb lighting performance and long product lifespan. They are an ideal solution for applications in high ceiling industrial and commercial environments, including manufacturing, distribution, retail spaces, supermarkets and warehousing facilities.
They are an effective energy efficient alternative to conventional high power consumption lights such as high-pressure sodium, mercury vapour and metal halide high bay lights and can save up to 70% on power costs.

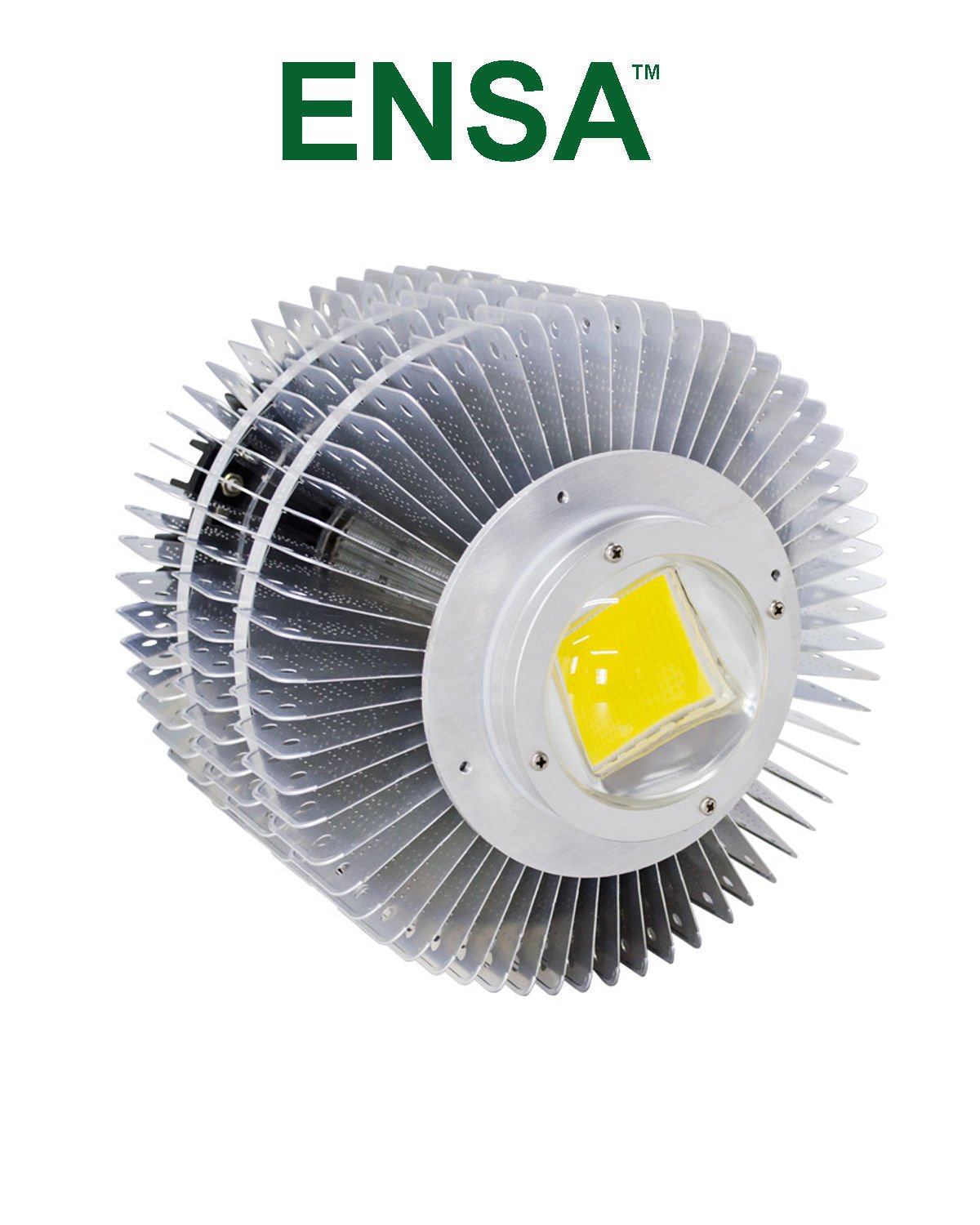

The LEDHB200WXK features an innovative heatsink design with phase-change cooling technology, providing excellent thermal efficiency. It also doesn’t require an additional aluminium reflector or diffuser – beam angle is controlled by the precision-built glass lens, giving the high bay compact and robust aesthetic.

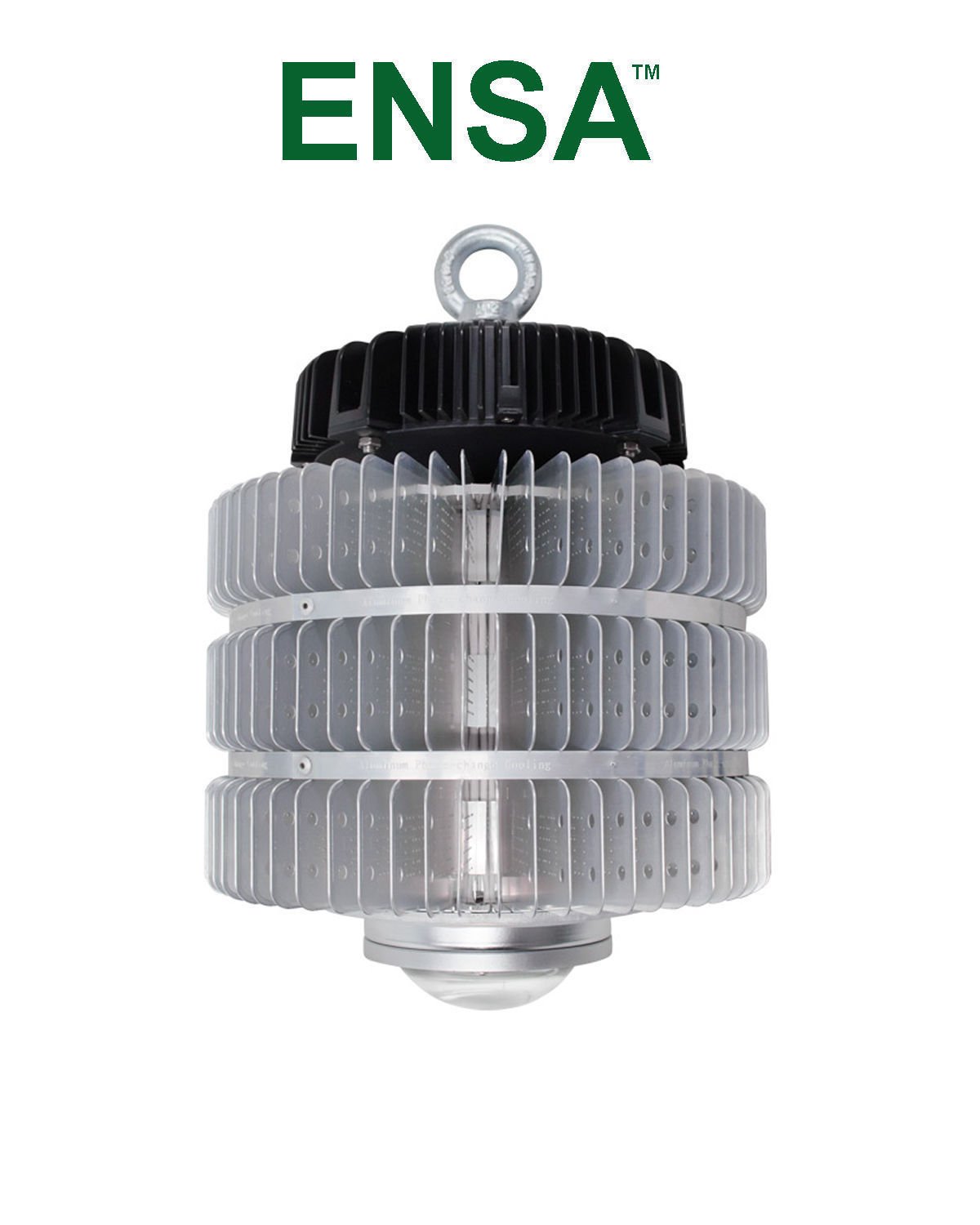

As with all professional ENSA LED lighting products, the LEDHB200WXK is assembled and quality tested in Australia to ensure long-term reliability and performance. The LEDHB200WXK comes standard with a 90° lens, 4500K natural white colour temperature, steel fail-safe cable and primary eyelet mount.
For large installations, DALI digital dimming can be optionally integrated for complete control over multiple light fixtures. 60° and 120° beam angle lenses, alternative colour temperatures and aluminium and polycarbonate reflectors are optionally available.
Specifications Beam Angle 90° Colour Rendering Index >80 Colour Temperature 4500K Dimensions Ø270 x 400mm Dimmable Optional DALI Dimming Equivalent Wattage 400W Metal Halide Housing Adjustments N/A Ingress Protection IP54 Input Voltage 85-265VAC LED Power Consumption 200W Light Decay <15% at 25,000 hours Luminous Efficacy 85lm/W Luminous Flux 17,000 lumens Operating Environment -10° ~ 50°C / RH: 10 ~ 90% Plug / Socket / Base 3-pin AC plug Power Factor >0.9 Rated Lifespan 50,000 hours Reflector / Diffuser Optional aluminium/polycarbonate reflector Target Environment Professional Warranty (Years) 3
