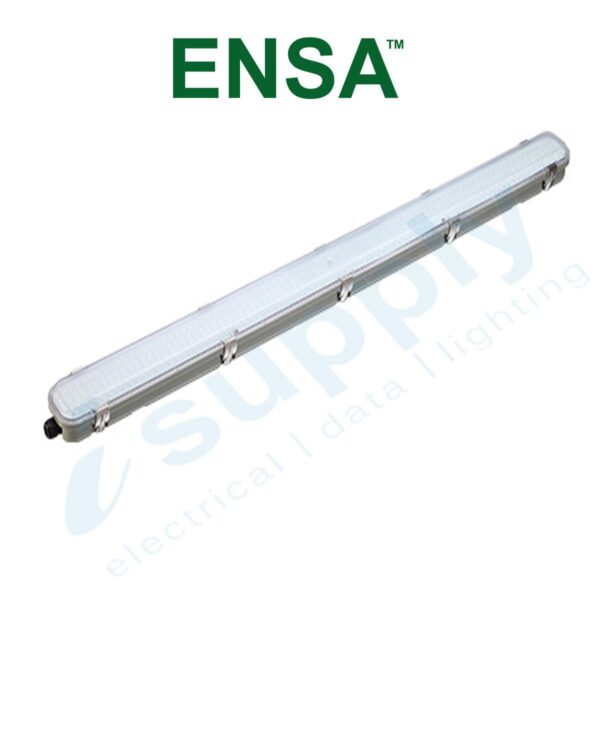

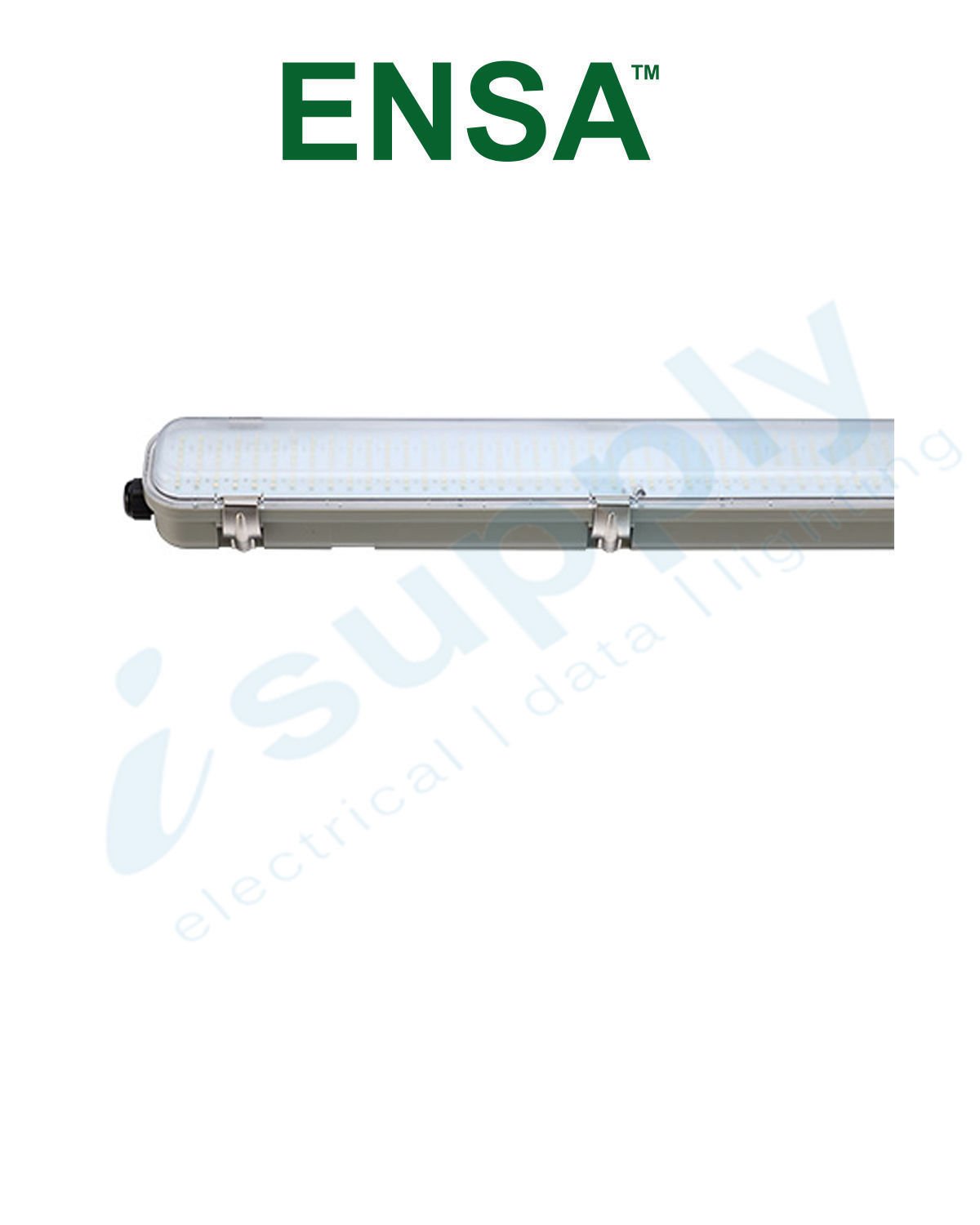

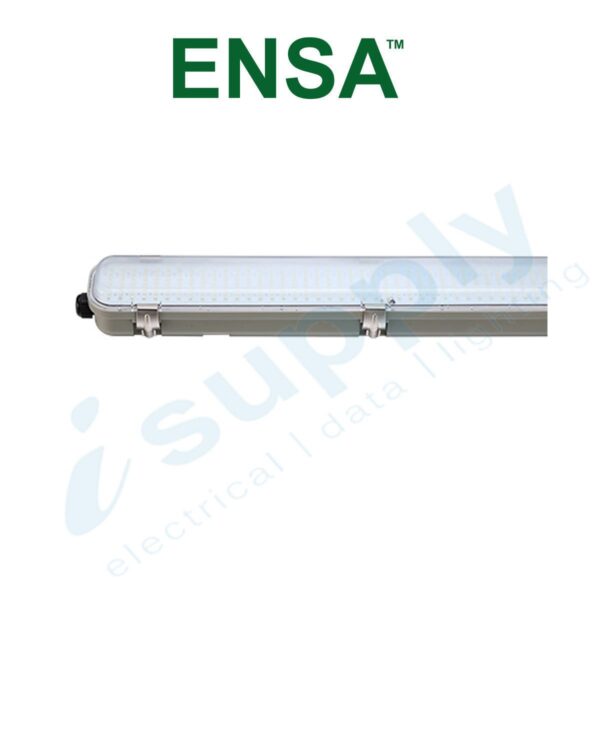

The ENSA™ LEDBT36WS is an automated, customisable, energy saving batten light. It features a 5.8GHz microwave motion sensor, daylight sensor and control electronics to compound energy savings offered by switching to LED from fluorescent tubes.
Product Highlights:
• Effectively halve power use compared to 1200mm (4ft) fluorescent twin battens.
• Compound your energy savings with adjustable daylight and motion sensors.
• 360° microwave sensor detects motion through doors, glass or even thin walls.
• IP65 rated: polyurethane gaskets, stainless steel clips and polycarbonate diffuser.
• Adjustable 10s ~ 12min on-time delay: perfect for carparks, stairwells and more.
SPECIFICATIONS
Optical:
Light Output: 3240lm
Luminous Efficacy: 90lm/W
Colour Temperature: 6000K
Colour Rendering Index: > 70
Beam Angle: 140°
Light Decay: <15% at 20,000 hours Rated Lifespan: > 50,000 hours
Electrical:
Power Consumption: 36W
Input Voltage: 220-240VAC (50Hz)
Power Factor: > 0.9
Dimmable: No
Motion Activated: Yes
General:
Ingress Protection: IP65
Plug / Socket / Base: Internal terminal block
Reflector / Diffuser: Clear polycarbonate diffuser / Metal clips
Housing Adjustments: N/A
NSW ESS Accepted: No
Operating Environment: -20° ~ 50°C
Dimensions: 1200 x 95 x 80mm
Other:
Ambient Light Sensor: 3 ~ 2000lx (adjustable)
Battery Backup: N/A
Certifications: N/A
Dimmed Brightness: N/A
Dimming Description: N/A
Dimming Timeout: N/A
Emergency Power Output: N/A
Equivalent Wattage: 80W fluorescent
Installation Materials: N/A
Motion Detection: 360° Microwave (5.8GHz) / 8m radius (adjustable)
On-Time Delay: 10s ~ 12min (adjustable)
Standby Light Modes: Off (0% brightness) / Dimmed (50% brightness)
Warranty (Years): 3
Shipping Weight and Dimensions
Includes product packaging
Width: 72 mm
Height: 123 mm
Depth: 100 mm
Weight: 1.60 kg
Additional information
| Manufacturer | |
|---|---|
| Weight | 1.60 |
