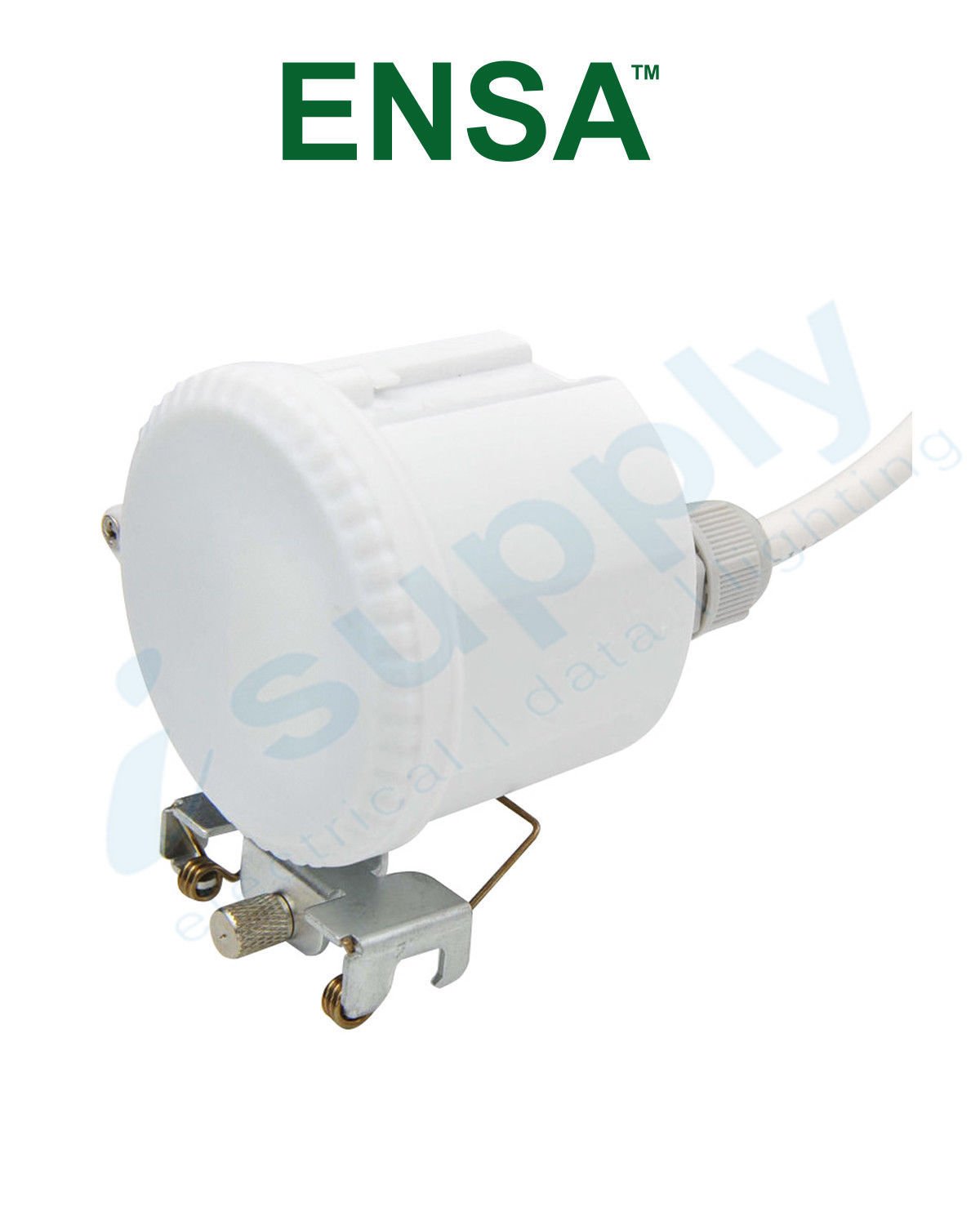

The ENSA-MS5 is an intelligent sensor switch, designed for high ceiling environments. It features ambient light sensing, microwave motion detection and configurable on-time delay, so you may tailor light usage and energy consumption to your exact specifications.
Add three step energy saving to any light with sensor switches:
1) Daylight sensor: Activates motion sensor when lux levels fall below limit
2) Motion sensor: Detects movement, turns light on only when necessary
3) On-timer: Light-on duration is set only as long as is required
Product features:
• Automatically activate and deactivate lighting for energy efficiency

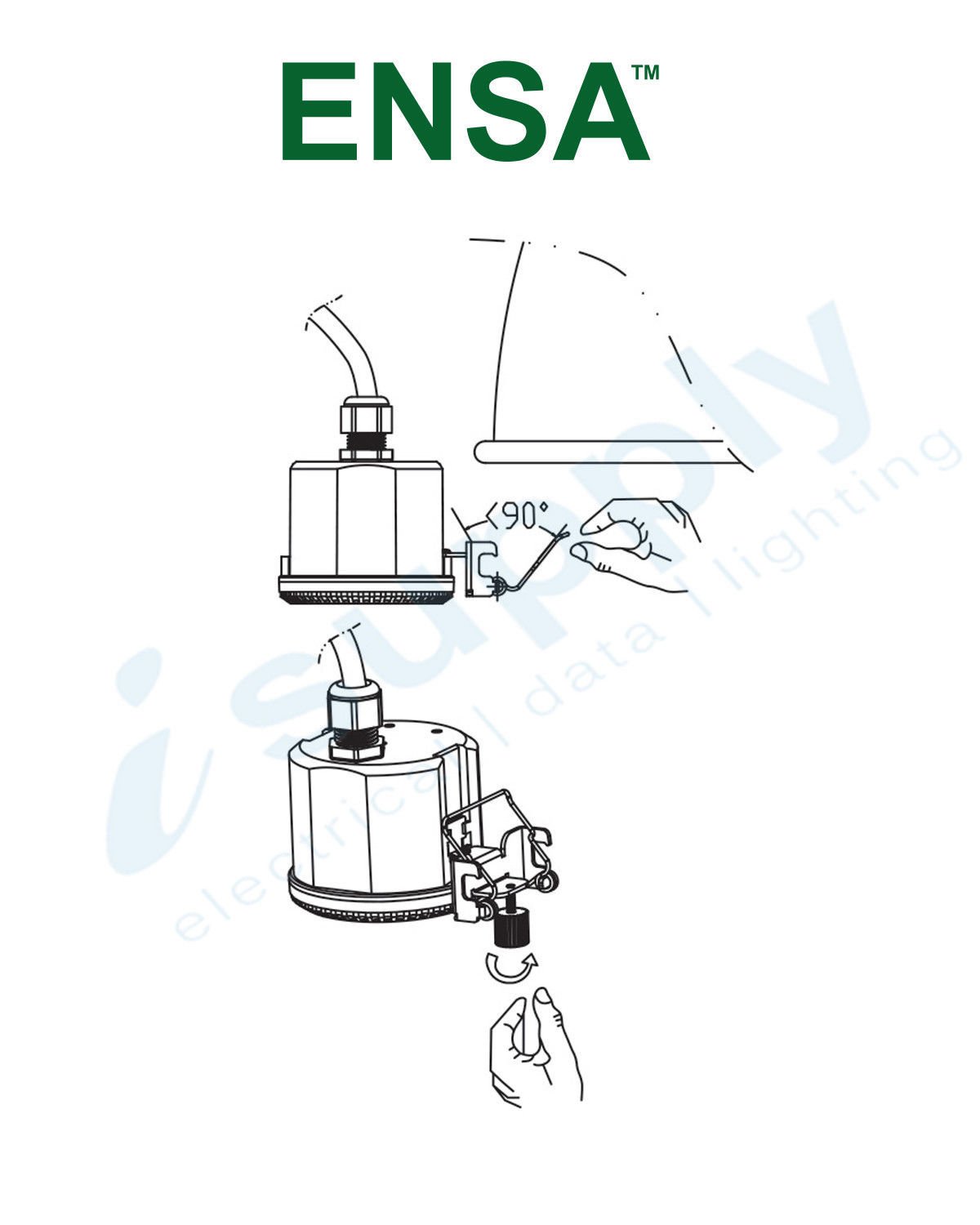

• Supplied bracket allows complete integration with high bay LED lights
• Adjustable sensors: Dimming (10~50%) / Motion sensitivity (0.5~3m/s) / On-timer (5s~30min)
• 360° circle / Ø16m (15m height) microwave detection
• Purpose built for high factory ceilings, IP65 rated for outdoor use
• 3 year warranty

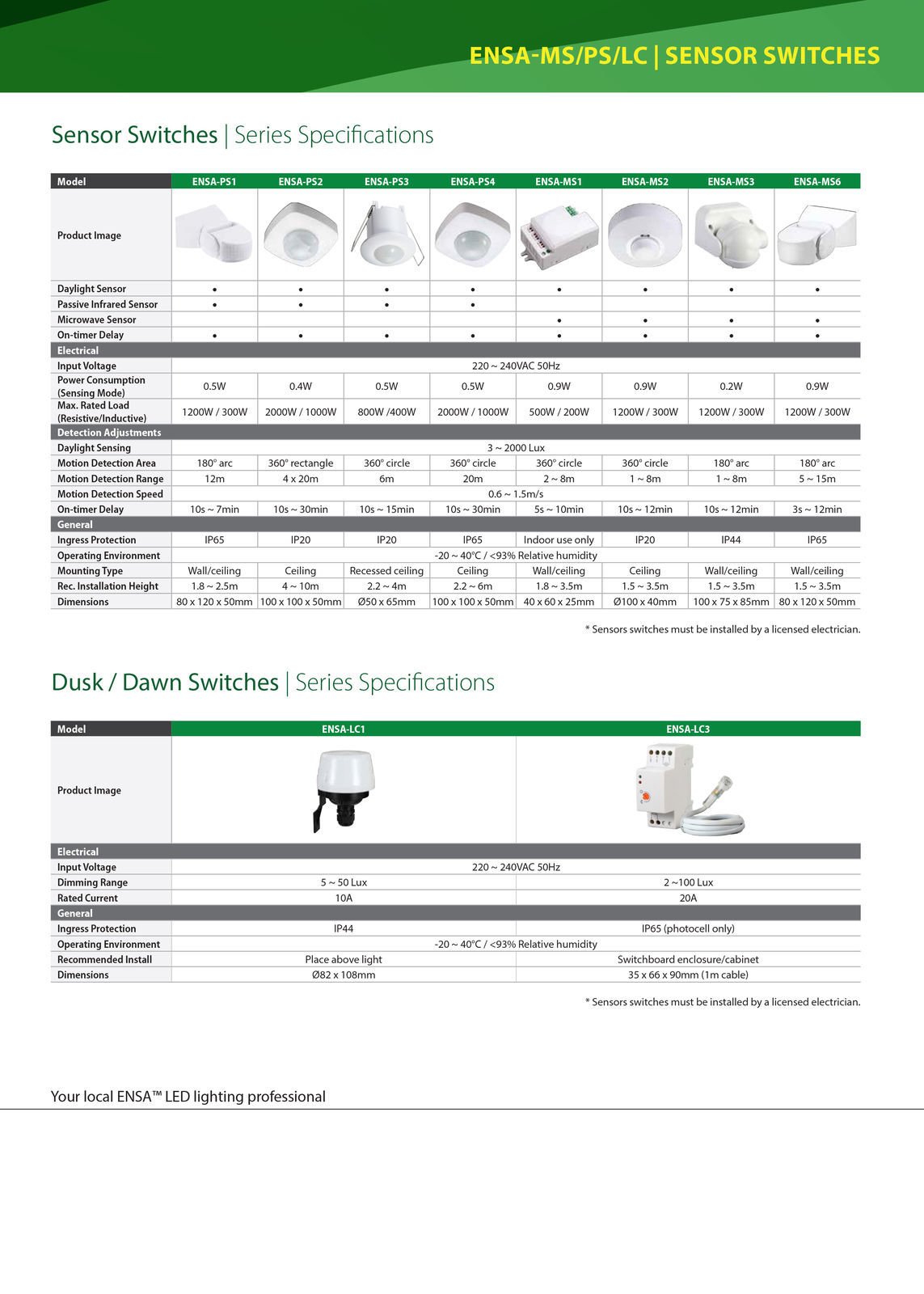

SPECIFICATIONS
Features:
Daylight Sensor: Yes
Motion Sensor Type: Microwave
Electrical:
Input Voltage: 220 ~ 240VAC 50Hz
Power Consumption (Sensing Mode): 0.4W
Max. Rated Load (Resistive/Inductive): 1200W / 800W
Detection:
Daylight Sensing: 50 ~ 200 Lux
Motion Detection Area: 360° circle (Ø16m, 15m height)
Motion Detection Adjustment: 100% / 50%
Recommended Installation Height: 4 ~ 15m
Motion Detection Speed: 0.5 ~ 3m/s
On-timer Delay: 5s ~ 30min
Stand-by Period: 5s / 5min / 10min / 30min / 60min / Infinite
Stand-by Dimming: 50% / 30% / 20% / 10%
General:
Ingress Protection: IP65
Operating Environment: -20 ~ 40°C / <93% Relative humidity
Mounting Type: Ceiling/Wall
Dimensions: Ø72 x 60mm
Warranty (Years): 3
Shipping Weight and Dimensions
Includes product packaging
Width: 110 mm
Height: 105 mm
Depth: 100 mm
Weight: 0.25 kg
Additional information
| Manufacturer | |
|---|---|
| Weight | 0.25 |
