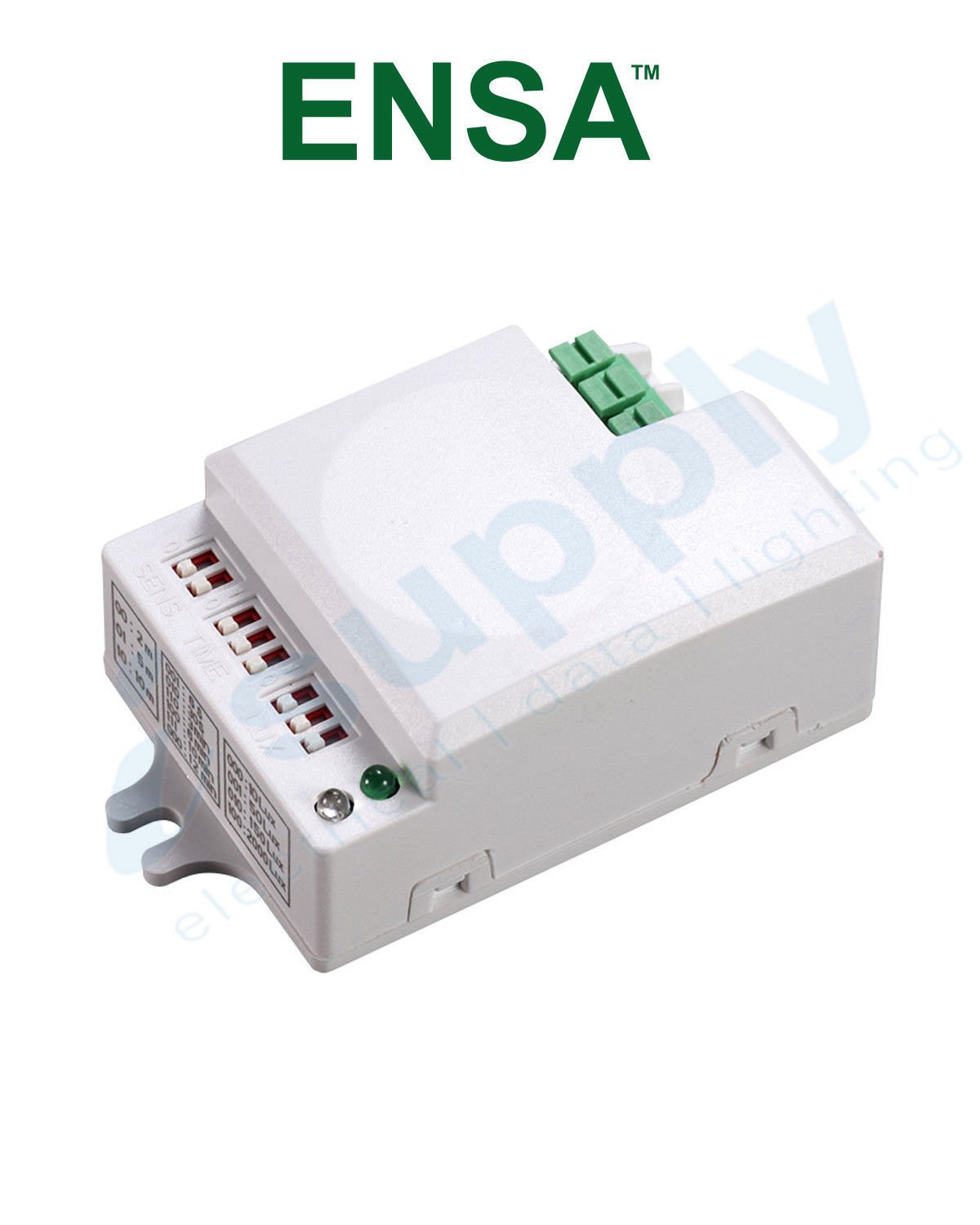

The ENSA-MS1 is a intelligent sensor switch, designed for in-line installation with existing lighting. Its compact design and microwave sensor allow it to be installed directly inside of lighting for discreet energy saving applications.
Add three step energy saving to any light with sensor switches:
1) Daylight sensor: Activates motion sensor when lux levels fall below limit
2) Motion sensor: Detects movement, turns light on only when necessary
3) On-timer: Light-on duration is set only as long as is required
Product features:
• Automatically activate and deactivate lighting for energy efficiency

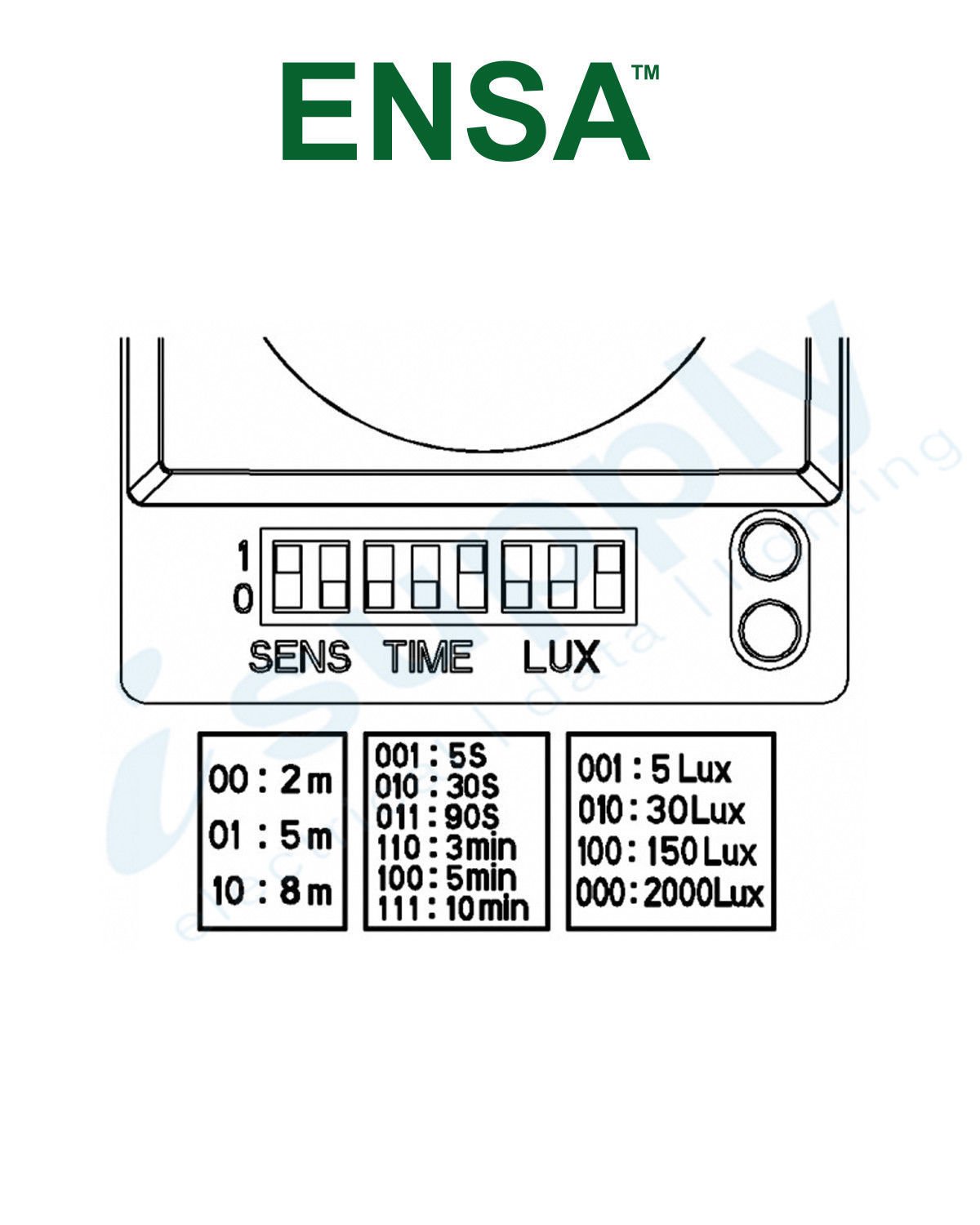

• Adjustable sensors: Daylight (5~2000lx) / Motion (2~8m) / On-timer (5s~10min)
• 360° circle / Ø2 ~ 8m microwave detection
• Designed for in-line installation with lighting, for indoor use only
• 3 year warranty

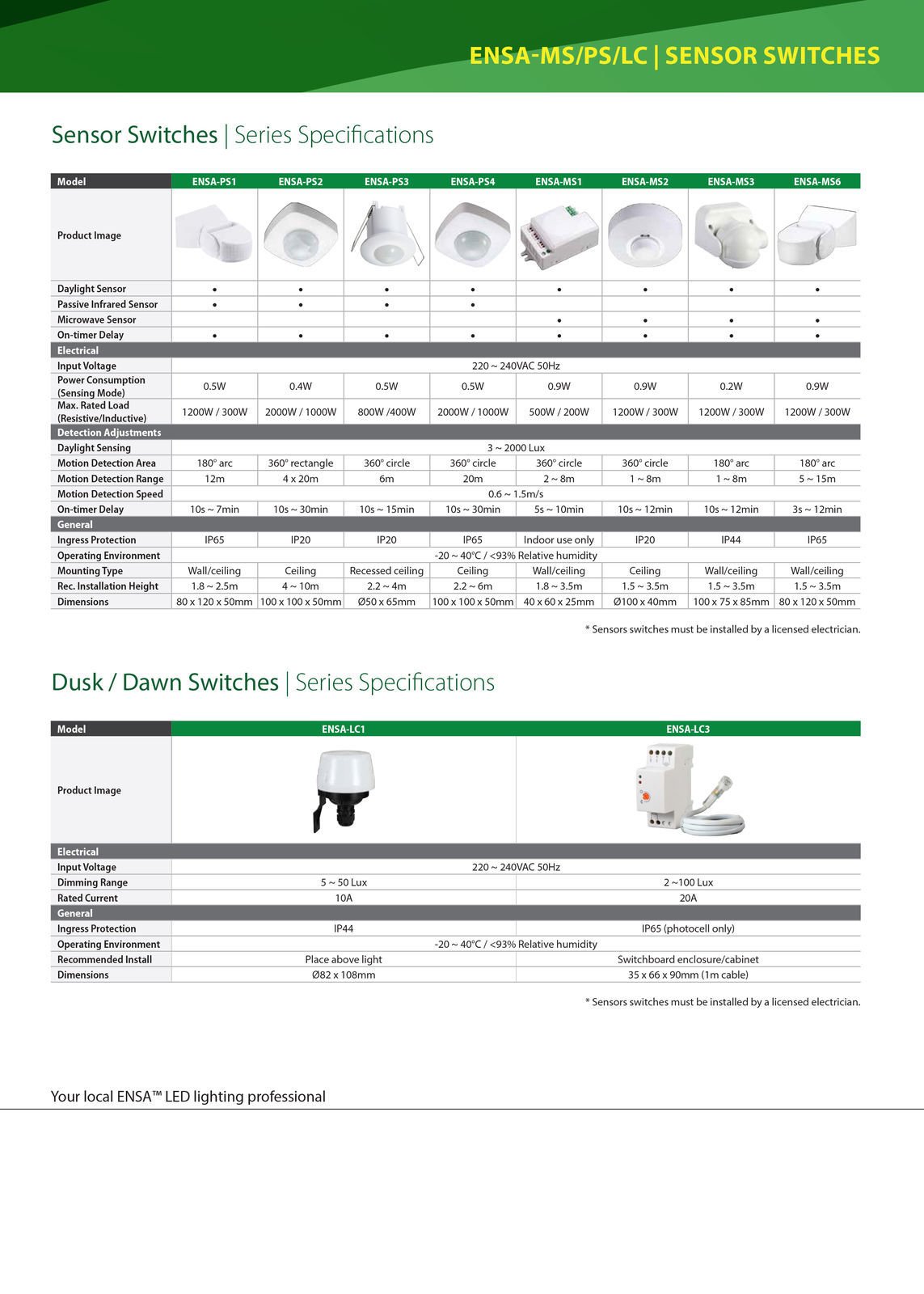

SPECIFICATIONS
Features:
Daylight Sensor: Yes
Motion Sensor Type: Microwave
Electrical:
Input Voltage: 220 ~ 240VAC 50Hz
Power Consumption (Sensing Mode): 0.9W
Max. Rated Load (Resistive/Inductive): 500W / 200W
Detection:
Daylight Sensing: 3 ~ 2000 Lux
Motion Detection Area: 360° circle (Ø2 ~ 8m adjustable)
Motion Detection Adjustment: 100% / 60% / 25%
Recommended Installation Height: 1.8 ~ 3.5m
Motion Detection Speed: 0.6 ~ 1.5m/s
On-timer Delay: 5s / 30s / 90s / 3min / 5min / 10min
Stand-by Period: N/A
Stand-by Dimming: N/A
General:
Ingress Protection: N/A (Indoor use only)
Operating Environment: -20 ~ 40°C / <93% Relative humidity
Mounting Type: In-line
Dimensions: 40 x 60 x 25mm
Warranty (Years): 3
Shipping Weight and Dimensions
Includes product packaging
Width: 50 mm
Height: 110 mm
Depth: 30 mm
Weight: 0.06 kg
