The ENSA-PS1 is an intelligent sensor switch, designed for wall mounting. It features configurable ambient light sensing, passive infrared motion detection and on-time delay, so you may tailor light usage and energy consumption to your exact specifications.
Add three step energy saving to any light with sensor switches:
1) Daylight sensor: Activates motion sensor when lux levels fall below limit
2) Motion sensor: Detects movement, turns light on only when necessary
3) On-timer: Light-on duration is set only as long as is required
Product features:
• Automatically activate and deactivate lighting for energy efficiency
• Adjustable sensors: Daylight (3~2000lx) / Motion (12m) / On-timer (10s~7min)
• 180° arc / 12m radius passive infrared detection
• Wall mount angle adjustable, IP65 rated for outdoor use
• 3 year warranty

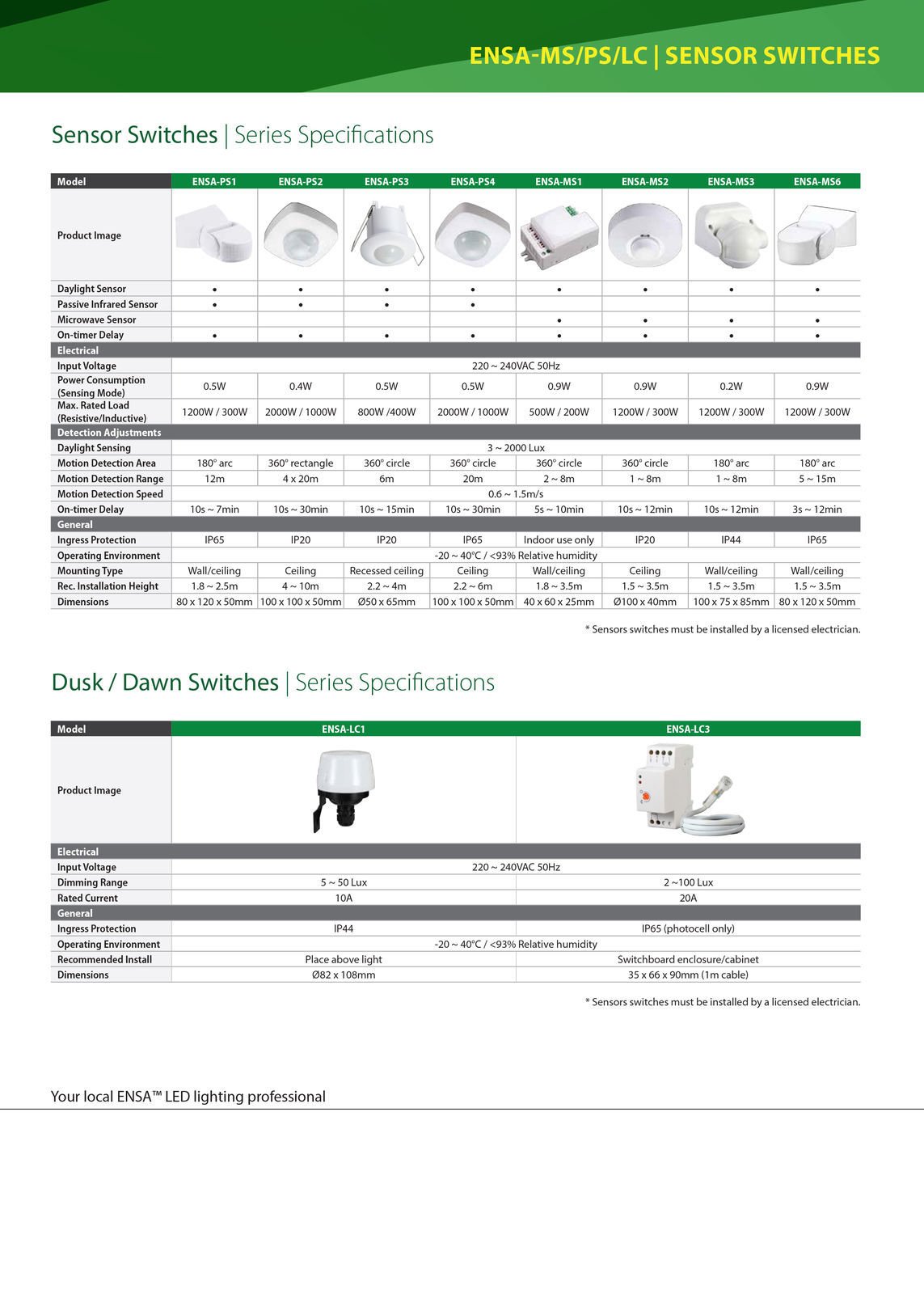

SPECIFICATIONS
Features:
Daylight Sensor: Yes
Motion Sensor Type: Passive Infrared
Electrical:
Input Voltage: 220 ~ 240VAC 50Hz
Power Consumption (Sensing Mode): 0.5W
Max. Rated Load (Resistive/Inductive): 1200W / 300W
Detection:
Daylight Sensing: 3 ~ 2000 Lux
Motion Detection Area: 180° arc (12m radius)
Motion Detection Adjustment: N/A
Recommended Installation Height: 1.8 ~ 2.5m
Motion Detection Speed: 0.6 ~ 1.5m/s
On-timer Delay: 10s ~ 7min
Stand-by Period: N/A
Stand-by Dimming: N/A
General:
Ingress Protection: IP65
Operating Environment: -20 ~ 40°C / <93% Relative humidity
Mounting Type: Wall
Dimensions: 80 x 120 x 50mm
Warranty (Years): 3
Shipping Weight and Dimensions
Includes product packaging
Width: 82 mm
Height: 135 mm
Depth: 72 mm
Weight: 0.20 kg
