High performance 360-degree presence detector with dual technology combining PIR and ultrasonic sensors
Recessed or surface mount with junction box included
8m PIR and 10x16m ultrasonic sensor detection ranges
Off delay setting from 5 seconds to 30 minutes
Optional IR remote control
Product Description

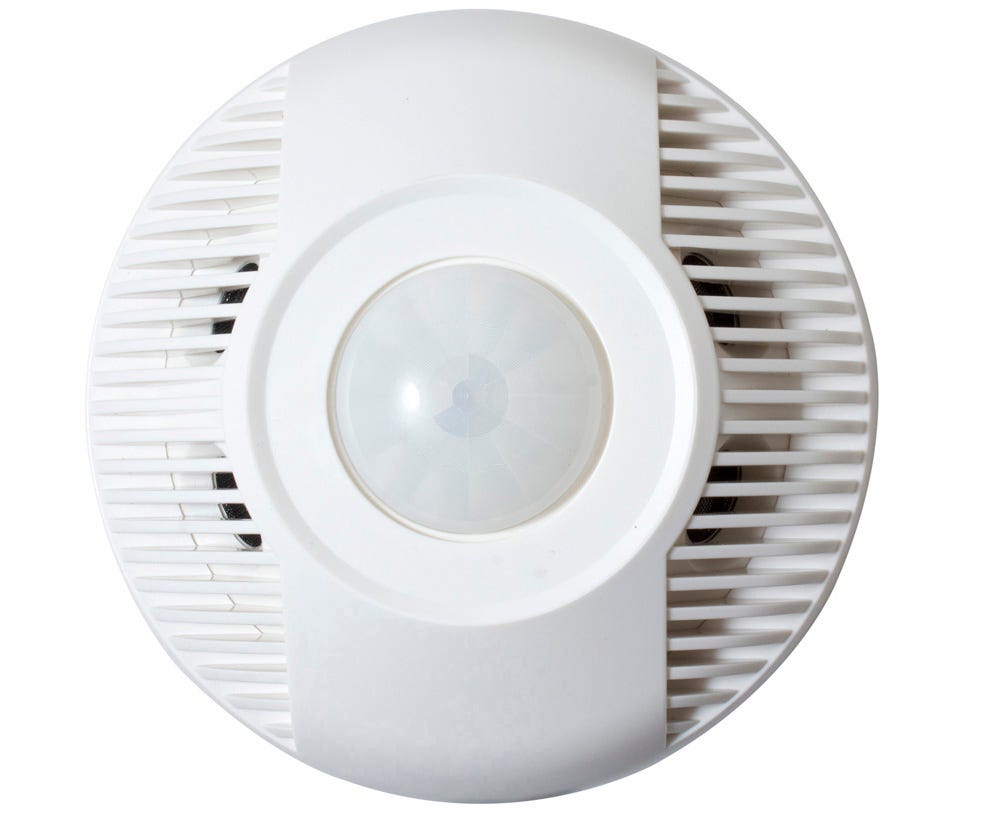

The CPD-360DUALTECH is a user friendly, high-performance presence detector for lighting and HVAC applications. The device is built on a powerful combination of PIR
and ultrasonic sensor technology to provide superior range and coverage with optimum flexibility. The product features one PIR sensor capable of detecting
occupancy up to 8 metres in a 360-degree range, and two ultrasonic sensors that detect movement within a 10 by 16 metre distance area.
Ultrasonic sensors emit a 32KHz ultrasonic sound wave. Operating on the Doppler effect, when a human body part moves even slightly it changes the tone of the
sound. This sends a message to the presence detector, which picks up the change and switches the relay. Ultrasonic sensors are an effective method of detecting
occupancy because they are able to detect even subtle movements, and are particularly sensitive to movement approaching the device. The air current
compensation function, used when AC duct affects US triggering, is a bonus feature that can be enabled or disabled as required.
The CPD-360DUALTECH has four detection modes to choose from, allowing you to tailor the device to your specific requirements:
Mode 1. PIR/US - Load will switch on when either PIR or US are triggered
Mode 2. PIR + US - Load will switch on when both PIR and US sensors are triggered, the load will stay on when either PIR or US are triggered
Mode 3. PIR only - Load will switch when PIR is triggered
Mode 4. US only - Load will switch when US is triggered
The unit is suitable for surface mount using the junction box provided. Typical applications include lighting for multi-stall bathrooms and partitioned offices, including
glass partitioning.
Operating Specifications and Technical Data
Number of Sensors: PIR x 1 & Ultrasonic x 2
Detection Range (H = 2.5m):
PIR: 360 degrees circular, adjustable up to 8m
US: 360 degrees adjustable up to 10m x 16m, in an oval shape
Auto Off Timer Adjustment: Adjustable from approx. 5 seconds to 30 minutes
Lux Adjustment: Adjustable from approx. 10 Lux to 1000Lux
ACC ON/OFF: Select "ON" for activating or select "OFF" for deactivating air current compensation function
Triggering Methods: PIR + US, PIR only, US only, PIR or US
Ultrasonic Sensor Frequency: 32KHz
Operating Temperature: 0 to +45 degrees Celsius
Environmental Protection: Class II, IP20
Also available:
IR remote control (optional but recommended): CPD-DUALTECH-RC
Electrical Data
Rated Voltage: 220 - 240V ~ 50/60Hz
Load
For lighting (with jumper wire):
Incandescent Lamp: max. 2000W
AC Halogen Lamp: max. 1000W
LV Halogen Lamp: max. 1000VA/600W (traditional)
LV Halogen Lamp: max. 1000VA/900W (electronics)
Fluorescent Lamp: max. 900VA/100uF
25 x (1 x 18W) ; 12 x (2 x 18W)
15 x (1 x 36W) ; 7 x (2 x 36W)
10 x (1 x 58W) ; 5 x (2 x 58W)
max. 1000VA/600W (uncompensated)
LED Lamp: max. 400W
Energy Saving Lamp: max. 600VA/400W (include CFL and PL Lamp)
For HVAC (remove jumper wire):
max. 10A (cos = 1) for 250VAC
max. 5A for 30VDC
max. 3A (cos = 0.4) for 250VAC
Refer to the product datasheet for more information
Technical Specifications
Detection Range (m): 8
Number of Channels: 1
Mounting Type: Surface, Ceiling
Surface Mount: No
Ceiling Mount: No
Lamp Compatibility: Incandescent, Halogen, Fluoroscent, LED, Energy Saving
Additional information
