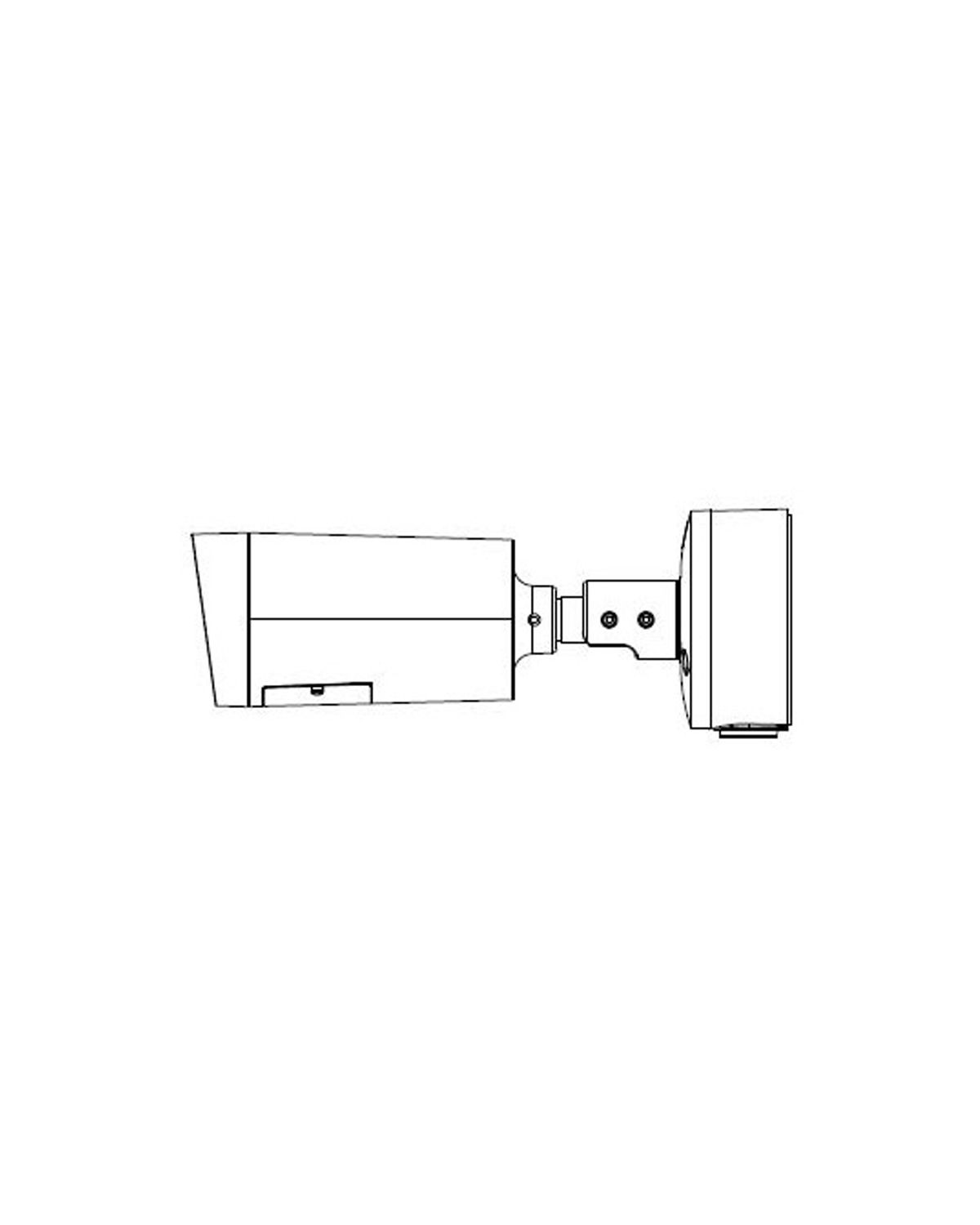

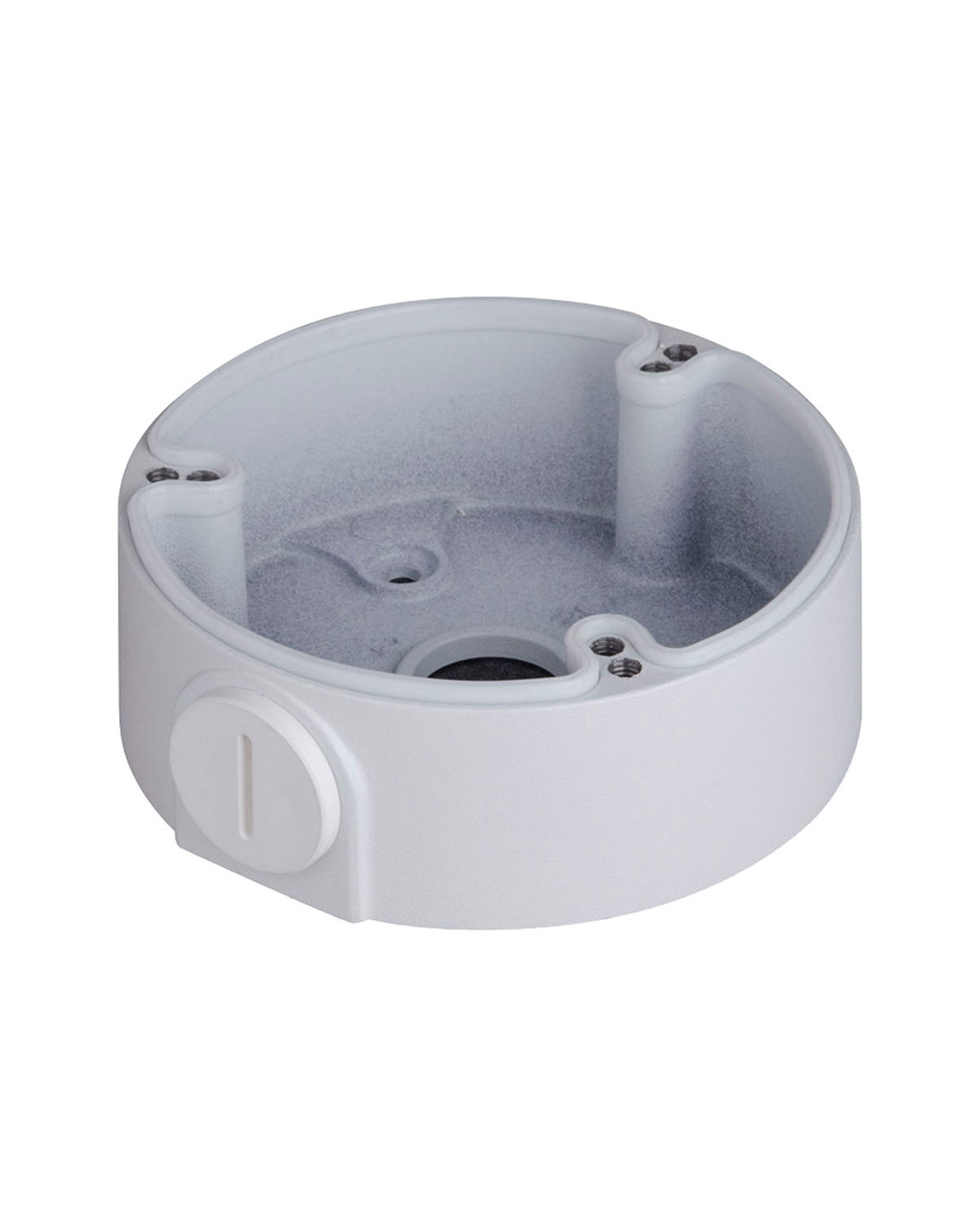

Aluminium adapter/junction box used as a spacer or as connector for corner & pole mounts.
See bracket compatibility guide below for product compatibility.
Specifications
Connection
Bracket Type: Junction Box
Load Bearing Capacity: 1.00kg
Pipe Thread: M20 (G1 1/2”)
General
Materials: Aluminum
Weather Resistance: Yes
Operating Conditions: -40° ~ 60°C / 90% RH (max)

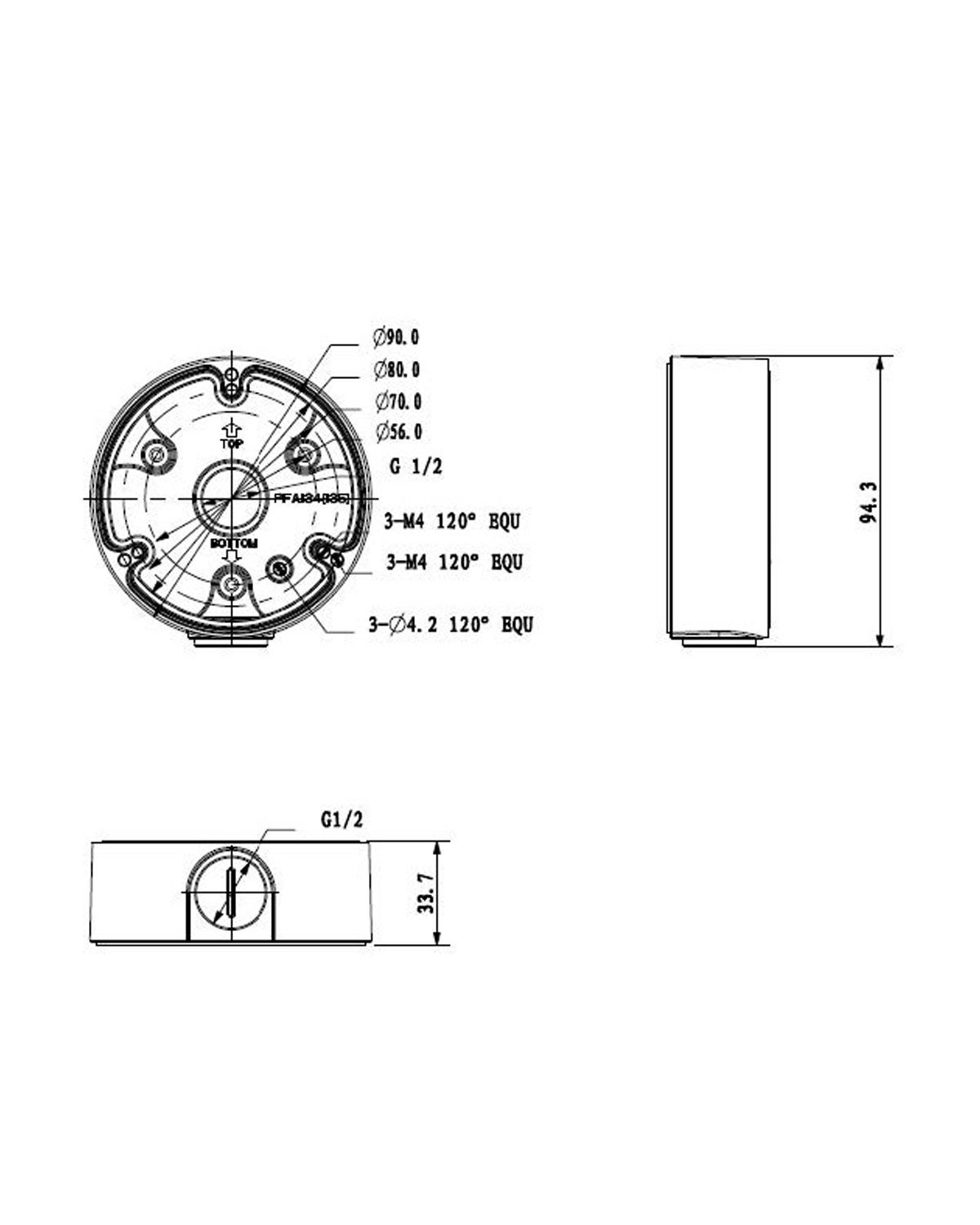

Dimensions: Ø90 x 34mm
Weight: 0.14kg
Warranty (Years): 2
Shipping Weight and Dimensions Includes product packaging
Width: 94 mm
Height: 90 mm
Depth: 34 mm
Weight: 0.14 kg
Additional information
| Weight | 0.14 |
|---|
