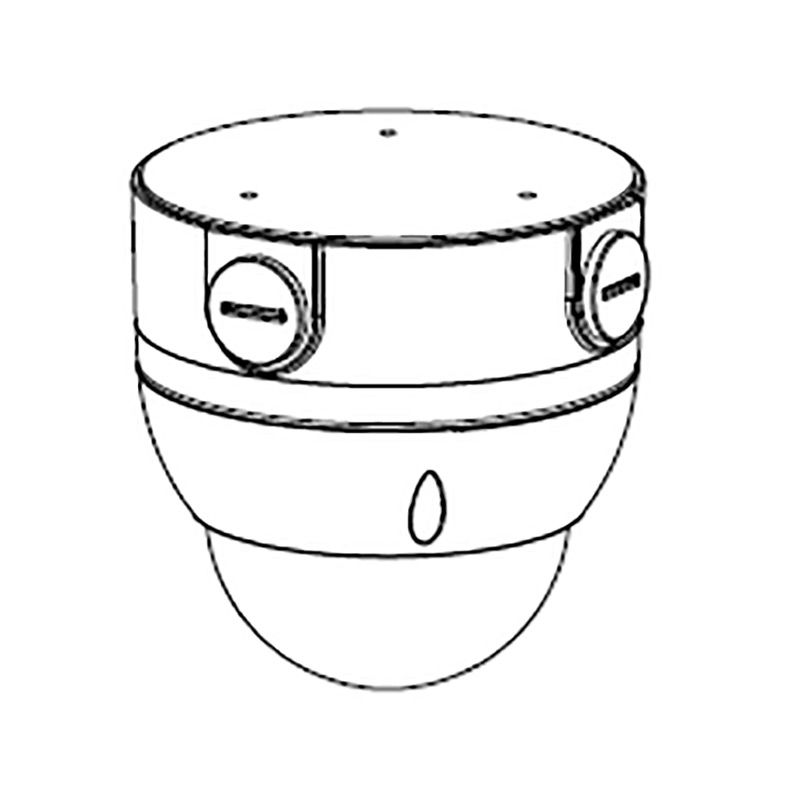

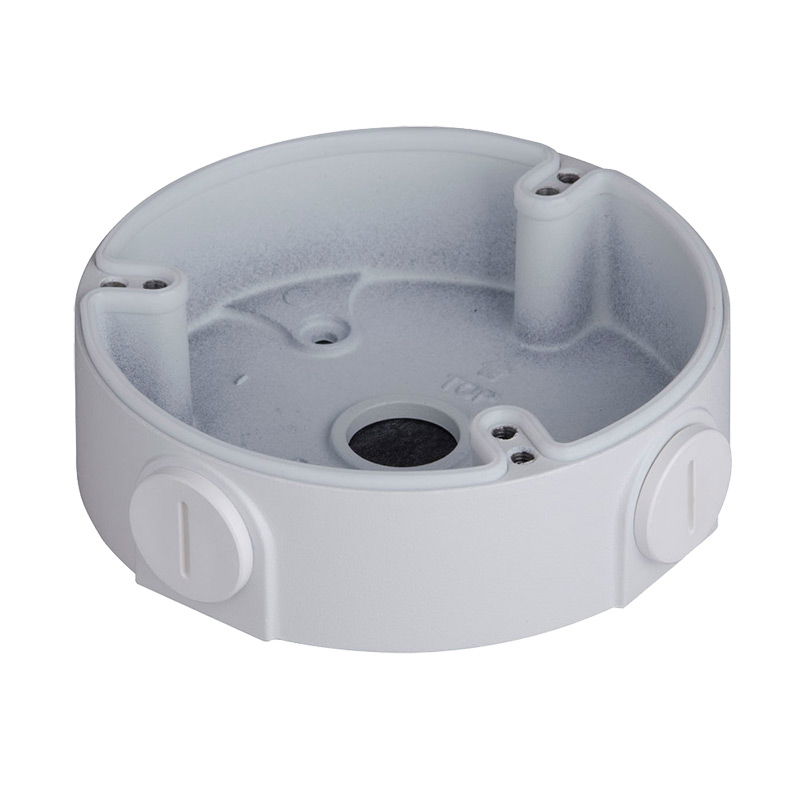

Aluminium adapter/junction box used as a spacer or as connector for corner & pole mounts.
See bracket compatibility guide below for product compatibility.
Specifications
Connection
Bracket Type: Junction Box
Load Bearing Capacity: 1.00kg
Pipe Thread: M20(G1/2”)
General
Materials: Aluminium
Weather Resistance: Yes
Operating Conditions: -40° ~ 60°C / 90% RH (max)

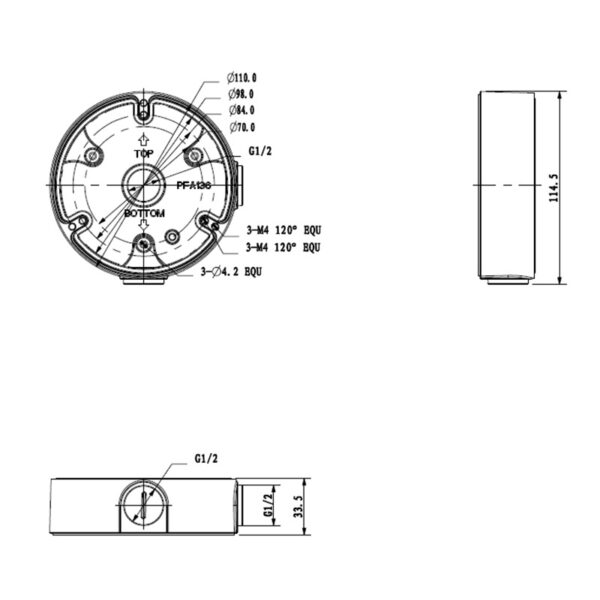

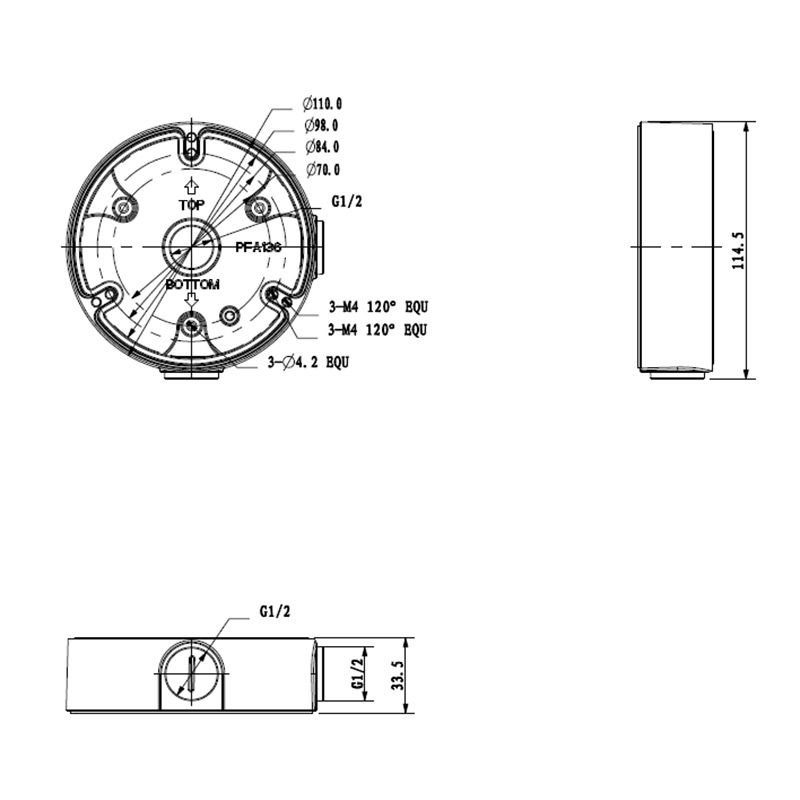

Dimensions: 110mm x 110mm x 34mm
Weight: 0.18kg
Warranty (Years): 2
Shipping Weight and Dimensions Includes product packaging
Width: 145 mm
Height: 145 mm
Depth: 64 mm
Weight: 0.26 kg
Additional information
| Weight | 0.26 |
|---|
