VIP Vision Ultimate AI Series 8.0MP Motorised Bullet VSIPU-8BIRM-I3
Specifications
Camera
Image Sensor
1/1.8?? 8.0MP Progressive Scan CMOS
Max. Resolution
8.0 Megapixel
Effective Pixels
3840 (H) x 2160 (V)
RAM / ROM
1GB / 120MB
Min Illumination
0.004 Lux / F1.4 (Color)
S/N Ratio
> 56dB
Infrared System
4 x Infrared LED, 60m range, Auto/manual on/off control
Lens
Lens Type
Motorised Varifocal
Lens / Iris
2.7 ~ 12.0mm F1.2 Motorised Varifocal Lens with Auto Iris
Field of View
Horizontal: 114?~47?, Vertical: 59?~27?
Focus
Auto Focus / 1.2m Min. Focus Distance
DORI
Detect (25px/m)
86m (wide) / 196m (tele)
Observe (63px/m)
34.4m (wide) / 78.4m (tele)
Recognise (125px/m)
17.2m (wide) / 39.2m (tele)
Identify (250px/m)
8.6m (wide) / 19.6m (tele)
Video
Resolution
8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main)
8.0MP (1 ~ 25fps)
Frame Rate (Sub)
D1 (1 ~ 25fps)
Frame Rate (Third)
1080p (1 ~ 25fps)
Video Compression
H.265, H.264, H.264B, H.264H, MJPEG
Bit Rate
H.264: 32Kbps ~ 8192Kbps / H.265: 32Kbps ~ 8192Kbps
Bit Rate Control
Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night
Auto (ICR) / Color / B&W
Lighting Compensation
BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA)
N/A
White Balance
Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control
Auto / Manual
Noise Reduction
3D DNR
Picture Control
Mirror / Flip (0?, 90?, 180?, 270?) (Support 90?/270? with 4M resolution and lower)
IVS
Intelligent Functions
Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Abandoned Object, Moving Object
Perimeter Protection
Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Face Detection
Internal Face Detection & Capture to add up to 10 channels of Face Detection with AI NVR
Face Attributes
Age, Gender, Expression, Glasses, Face Mask, Facial Hair
People Counting
Supports Line Crossing/Region/Queuing People Counting, 4 Independent Access Detection / 4 Dependent Access Detection
Heat Map
Yes
Event Trigger
Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Search
Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes
Network
Ethernet
RJ-45 (10/100Base-T)
Protocol
IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP
Streaming Method
Multicast
Max. User Access
20 Users
Interface
Video Interface
N/A
Audio Interface
1 input (RCA Port) / 1 output (RCA Port) / Audio Compression: G.711a; G.711Mu; G726; G.723
Alarm Interface
2 channel in: 5mA 5VDC / 21 channel out: 300mA 30VDC 12VDC
RS485
N/A
Edge Storage
MicroSD Card (up to 256GB) / NAS / FTP /SFTP
Interoperability
ONVIF / P2P / CGI / Milestone / Genetec
Environmental
Power Supply
12VDC (?30%) / PoE (802.3af) / ePoE
Power Consumption
<7.9W
Operating Conditions
-30?C ~ +60?C, ?95% RH
Ingress Protection
IP67
Vandal Resistance
IK10
Series
Ultimate AI Series
Camera Type
Bullet
Housing
Metal, Plastic
Pan/Tilt/Rotation
Pan: 0? ~ 360?, Tilt: 0? ~ 90?, Rotation: 0? ~ 360?
ePoE
Yes

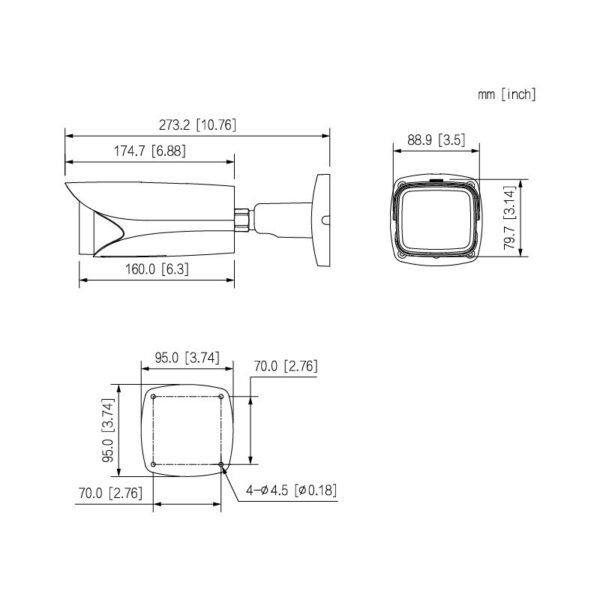

Dimensions
273.2mm x 95mm x 95mm
Net Weight
1.51kg
Warranty (Years)
4
Shipping Weight and Dimensions
Includes product packaging
Width
31 mm
Height
117 mm
Depth
15 mm
Weight
1.51 kg
