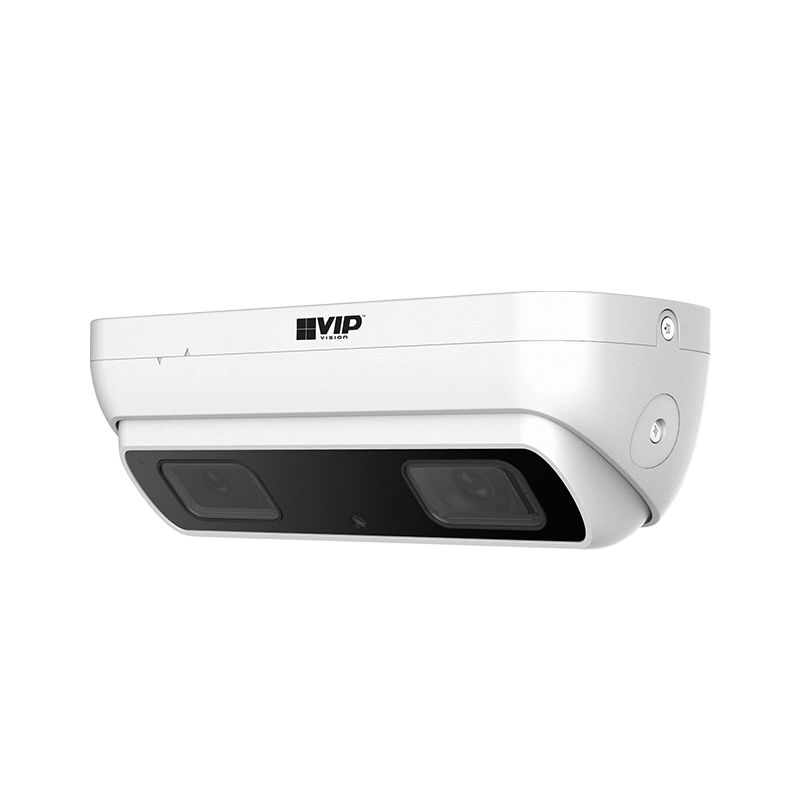

The unique VSIPDL-3IR is a dual lens IP camera that offers AI-powered people counting, capturing and detecting people in real time and gathering data for use in business analytics and statistics. The dual lens combined with AI technology allows the camera to reliably track human movement and count people in real time with increased precision and accuracy
Camera features:
• Stream up to 3.0MP (2048 x1536) at 25fps
• Up to 10m infrared range; true day/night (auto ICR)
• People counting with AI & dual lens technology
• Accurately tracks the number of people in a region and/or the number of people who cross a line
• Combines dual lens images to capture 3D depth
• Back/highlight compensation & true WDR (120dB)
• 3D digital noise reduction & auto white balance
• Built-in microphone, efficient H.265+ compression
• IP67 weather rated housing for outdoor use
SPECIFICATIONS
Image Sensor: 2 x 1/2.8’’ 3.0MP Progressive Scan CMOS
Max. Resolution: Effective Pixels
Effective Pixels: RAM / ROM
RAM / ROM: 512MB / 4096MB
Min Illumination: 0.009 Lux/F1.8 (colour 1/3s), 0.08 Lux/F1.8 (colour 1/30s), 0 Lux/F1.8 (IR on)
S/N Ratio: >50dB
Infrared System: 1 x Infrared LED, 10m range, Auto/manual on/off control
Lens Type: Fixed
Lens / Iris: 2.8mm F1.8 Fixed Focal Lens
Field of View: Horizontal: 106°, Vertical: 80°
Focus: Fixed Focus / 0.6m Min. Focus Distance
Detect (25px/m): 45m
Observe (63px/m): 18m
Recognise (125px/m): 9m
Identify (250px/m): 4m
Resolution: 3.0MP (2048 x 1536) to CIF (352 x 288)
Frame Rate (Main): 3.0MP (1 ~ 25fps)
Frame Rate (Sub): D1 (1 ~ 25fps)
Frame Rate (Third): 6.0MP (1 ~ 7fps, debugging only)
Video Compression: H.265 / H.264 / H.265+ / H.264+ / MJPEG
Bit Rate: H.264: 192~ 10240Kbps, H.265: 80~ 6144Kbps
Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night: Auto (ICR) / Color / B&W
Lighting Compensation: BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA): No
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control: Auto / Manual
Noise Reduction: 3D DNR
Picture Control: N/A
Intelligent Functions: Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared, Heat Map
Perimeter Protection: N/A
Face Detection: N/A
Face Attributes: N/A
People Counting: People Counting (Supports line crossing & region of interest, 98% accuracy), Height Filter, Loitering Filter
Heat Map: N/A
Event Trigger: N/A
Intelligent Search: N/A
Ethernet: RJ-45 (100/1000Base-T)
Protocol: HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP; NTP; Bonjour;IEEE 802.1x; Multicast; ICMP; IGMP; SNMP; TLS
Streaming Method: Unicast / Multicast
Max. User Access: 10 / 20 Users
Video Interface: 1 Port (for adjustment only)
Audio Interface: 2 Channel inputs / 1 Channel Output / Built-in Mic / Audio Compression - G.711a; G.711Mu; G726; AAC
Alarm Interface: 2 Channel Inputs (5mA 5VDC) / 2 Channels Output (300mA 12VDC)
RS485: N/A
Edge Storage: MicroSD Card (up to 128GB) / NAS / Local PC
Interoperability: ONVIF Profile S&G, API
Power Supply: 12VDC / PoE (802.3af) (Class 0)
Power Consumption: <12W
Operating Conditions: -30°C to +60°C, ≤95% RH
Ingress Protection: IP67
Vandal Resistance: N/A
Series: Specialist AI Series
Camera Type: Dual Lens
Housing: Metal
Pan/Tilt/Rotation: Tilt: -10° ~ 70°
ePoE: No

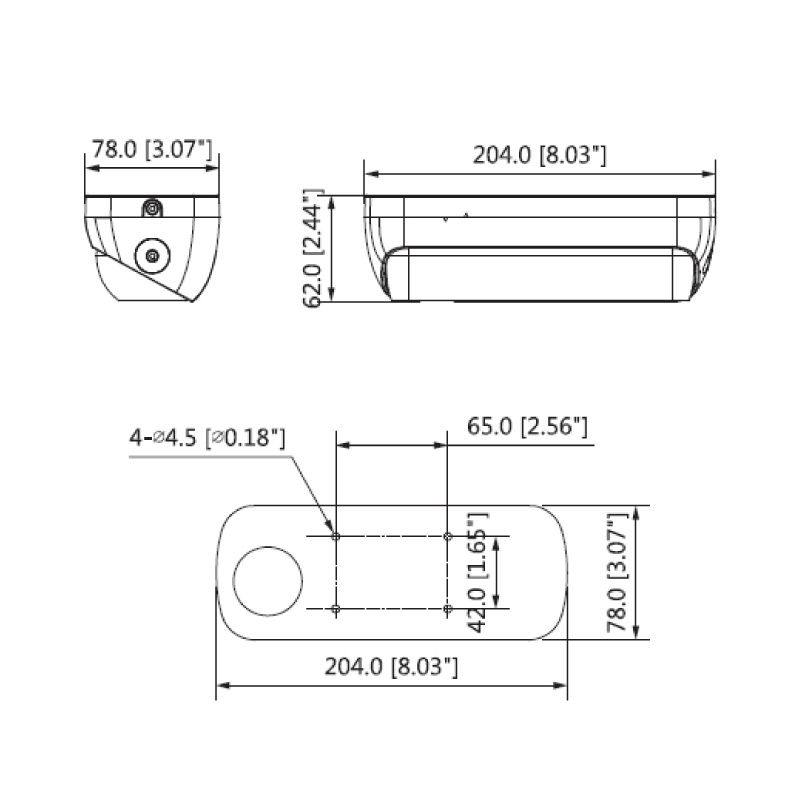

Dimensions: 204mm x 78mm x 62mm
Net Weight: 0.80kg
Warranty (Years): 4
Shipping Weight and Dimensions
Includes product packaging
Width: 310 mm
Height: 145 mm
Depth: 155 mm
Weight: 1.16 kg
