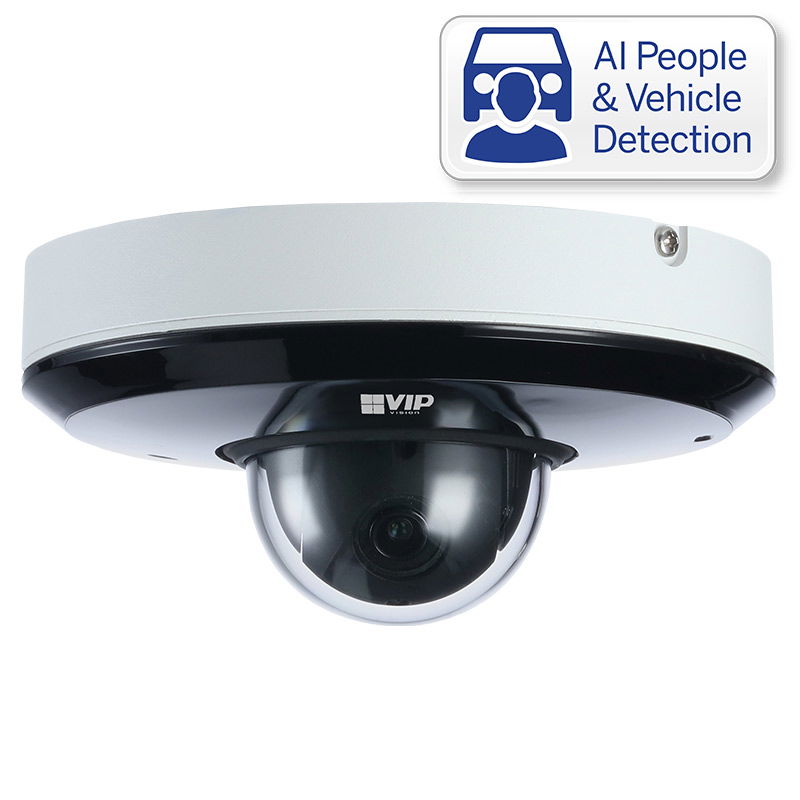

Small in size but big on features, the PTZ AI Dome combines the flexibility and coverage of PTZ with the power of smart AI technology. The PTZ AI Series identifies people & vehicles using machine learning, to reduce false motion detection alerts and provide meaningful video event notifications in real-time.
Camera features:
• Stream up to 4.0MP (2560 x 1440) at 25fps
• 4x optical zoom lens (31.6° ~ 96.9° H viewing angles)
• H.265 encoding for efficient storage & streaming
• Low light colour performance at 0.005lx; 15m infrared
• AI powered perimeter protection & smart motion detection (SMD+)
• Set up AI people and vehicle detection, receive alerts and search footage by people or vehicles
• 355° panning with tilt adjust; flip 180°
• MicroSD card slot for recording up to 256GB
• Supports power via PoE (802.3af)
• IP66 weather & IK08 vandal rated resistant housing
SPECIFICATIONS
Image Sensor: 1/2.8" 4.0MP Progressive Scan CMOS
Max. Resolution: Effective Pixels
Effective Pixels: RAM / ROM
RAM / ROM: 1GB / 4GB
Min Illumination: 0.005 Lux/F1.8 (Color), 0.0005 Lux/ F1.8 (B/W), 0 Lux (IR on)
S/N Ratio: N/A
Infrared System: 3 x Infrared LED, 15m range, Auto/manual on/off control
Lens Type: Motorised Varifocal
Lens / Iris: 2.8 ~ 12mm F1.8 ~ F2.7 Motorised Lens with Auto Iris
Field of View: Horizontal: 32~97°, Vertical: 18°~51° (4x Optical Zoom)
Focus: Auto/Manual / 0.2m Min. Focus Distance
Detect (25px/m): 147m
Observe (63px/m): 59m
Recognise (125px/m): 29m
Identify (250px/m): 15m
Pan / Tilt Range: Pan: 0 ~ 355° / Tilt: 5 ~ 90°
PTZ Speed: Preset: Pan: 80°/s; Tilt: 40°/s Manual: Pan: 70°/s; Tilt: 30°/s
Modes / Presets: Up to 300 presets / 8 tour
Start-up Action: Auto-restore to previous PTZ/lens status
Resolution: 4.0MP (2560 x 1440) to CIF(352 x 288)
Frame Rate (Main): 4.0MP (1 ~ 25fps)
Frame Rate (Sub): D1 (1 ~ 25fps)
Frame Rate (Third): D1 (1 ~ 25fps) / 720p (1 ~ 25fps)
Video Compression: H.265; H.264 Baseline Profile; H.264 Main Profile; H.264 High Profile; MJPEG (Sub Stream); H.265+; H.264+
Bit Rate: H.264 /H.265 /MJPEG: 3 ~ 20480Kbps
Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night: Auto (ICR) / Color / B&W
Lighting Compensation: BLC / HLC / WDR (120dB)
Smart Scene Adaptive (SSA): No
White Balance: Auto / Indoor / Outdoor / Track / Manual / Sodium Lamp / Natural Light /Street Lamp
Gain Control: Auto / Manual
Noise Reduction: 2D / 3D
Picture Control: Flip 180°
Face Recognition: Face Capture
Perimeter Protection: Tripwire & Intrusion (Add recognition of humans & vehicles), Fast Moving Detection, Loitering Detection, Parking & Gathering Detection
Auto Tracking: N/A
Metadata: People Counting
Supports Line Crossing/Region/Queuing People Counting, Report Generation: Heat Map
#REF!
IVS Functions: Event Triggers
Region of Interest: Optical Defog
Digital Zoom: Privacy Masking
Privacy Masking: Image Stabilisation
Image Stabilisation: Ethernet
Ethernet: Protocol
Protocol: Streaming Method
Ethernet: RJ-45 (10Base-T/100Base-TX)
Protocol: IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3(MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Streaming Method: Unicast / Multicast
Max. User Access: 20 Users
Video Interface: N/A
Audio Interface: 1 Input, 1 Output / Compression: G.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729; G.723
Alarm Interface: N/A
RS485: N/A
Edge Storage: MicroSD Card (up to 256GB) / FTP / P2P
Interoperability: ONVIF/ CGI
Power Supply: 12VDC / 1.5A / PoE (802.3af)
Power Consumption: <3W / <8.5W (IR on)
Operating Conditions: -30° ~ +60° C / ≤95% RH
Ingress Protection: IP66
Vandal Resistance: IK08
Series: Specialist AI Series
Camera Type: PTZ Dome
Housing: Metal
Pan/Tilt/Rotation: N/A
ePoE: No

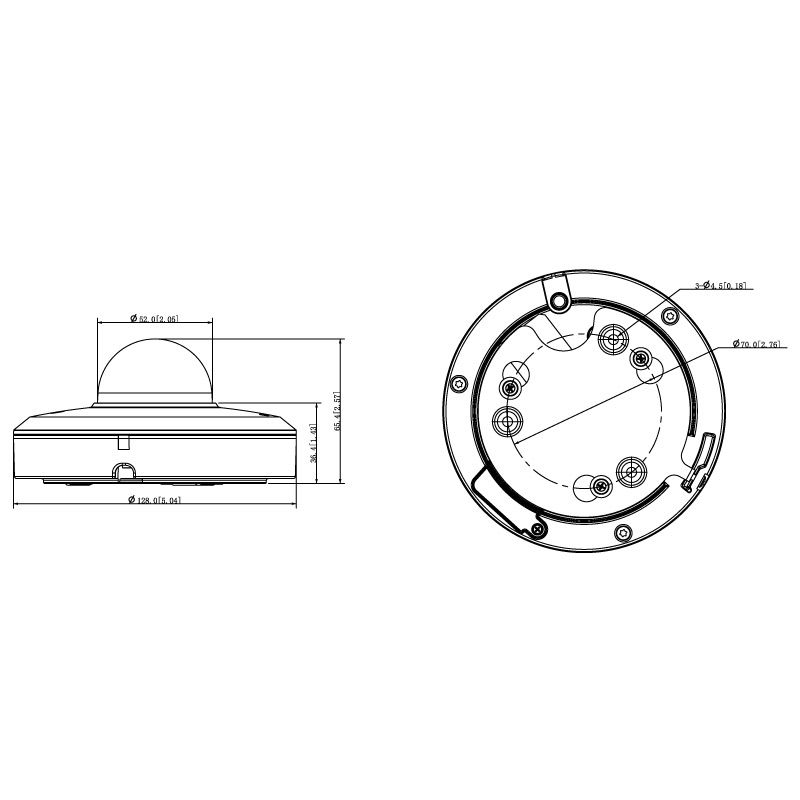

Dimensions: Ø128mm x 65mm
Net Weight: 0.49kg
Event Trigger: Motion Detection, Video Tampering , Scene Changing, Network Disconnection, IP Address Conflict, Illegal Access, Storage Anomaly
Intelligent Functions: Abandoned/Missing Object, Motion Detection, Region of Interest, Electronic Image Stabilisation, Privacy Masking (24 zones), Defog
Intelligent Search: Via NVR Smart Search / Search tripwire/intrusion events by people or vehicle, Search footage by face image and face attributes
Warranty (Years): 4
Shipping Weight and Dimensions
Includes product packaging
Width: 135 mm
Height: 80 mm
Depth: 135 mm
Weight: 0.70 kg
