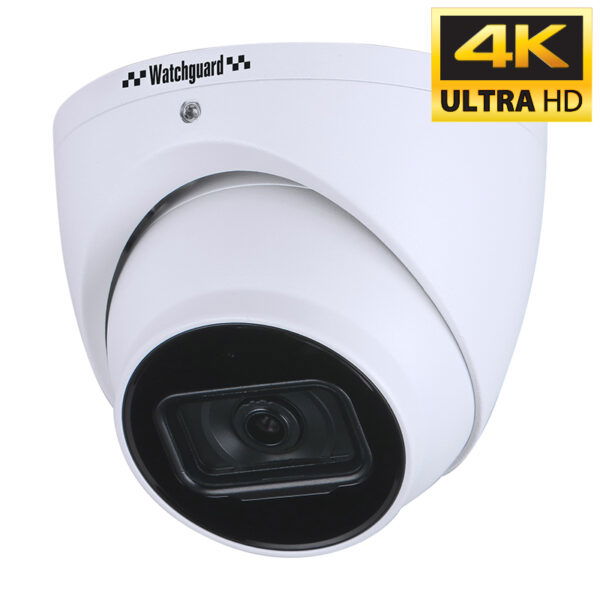

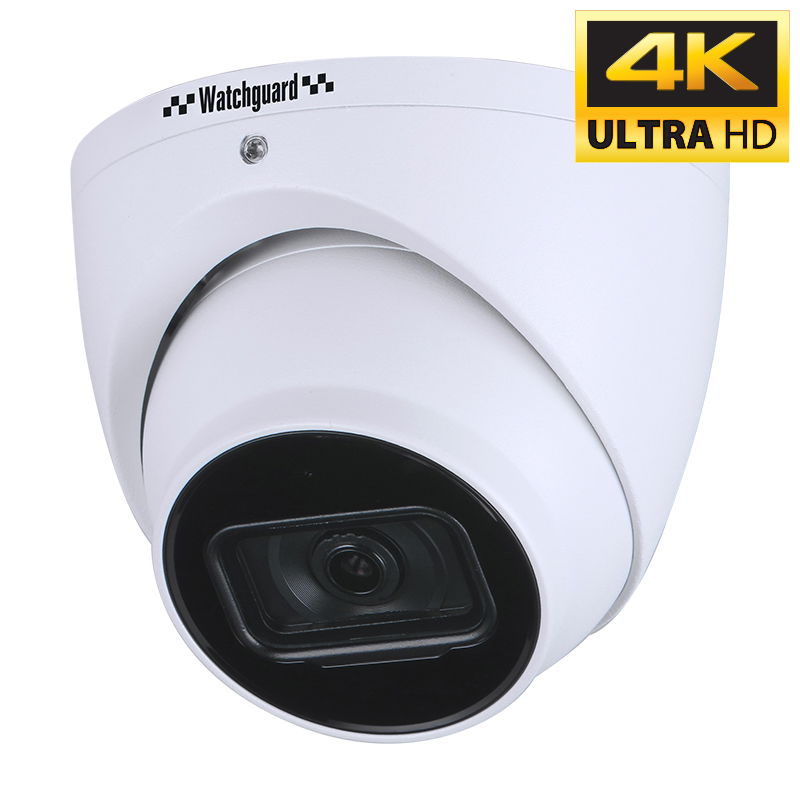

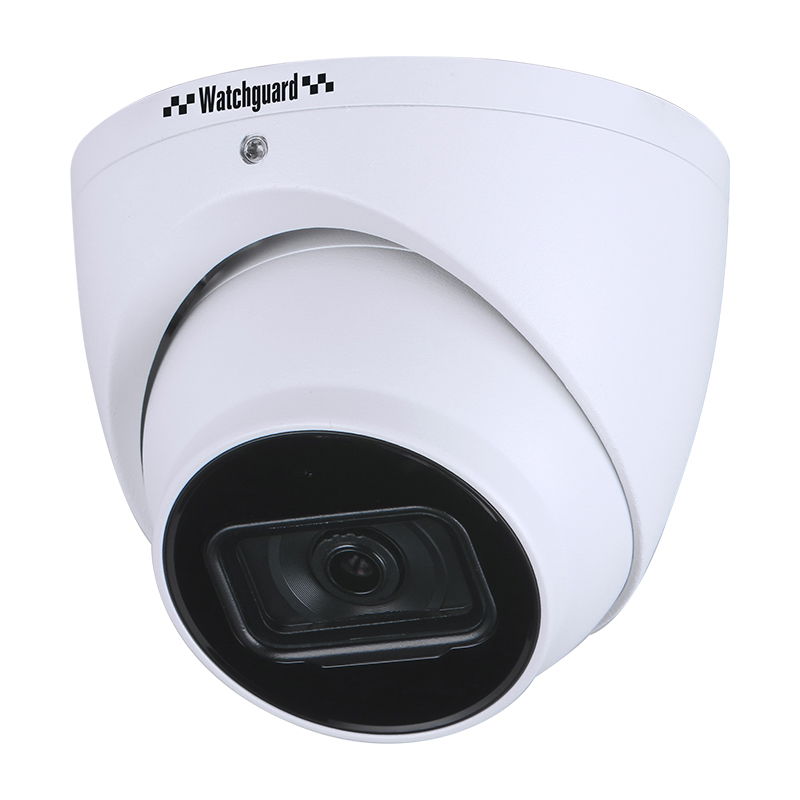

The VSIPC-8DIRG2 boasts impressive performance at an affordable price point, delivering high image quality at a smooth framerate, intelligent video functions and the convenience of Power over Ethernet installation.
Camera features:
• Stream up to 8.0MP (3840 x 2160) at 15fps
• 2.8mm fixed lens with wide 105° viewing angle
• 30m infrared range; true day/night (auto ICR)
• H.265 encoding for efficient storage & streaming
• Built-in microphone and microSD slot for edge recording
• 3D digital noise reduction & true WDR (120dB)
• Tripwire, Intrusion, Motion detection and more
• Power via 12VDC or Power over Ethernet (802.3af)
• IP67 weather rated metal housing
SPECIFICATIONS
Image Sensor: 1/2.7" 8.0MP Progressive Scan CMOS
Max. Resolution: Effective Pixels
Effective Pixels: RAM / ROM
RAM / ROM: 256MB / 128MB
Ultra Low Light Colour: No
Min Illumination: 0.009 Lux/F2.0
S/N Ratio: N/A
Infrared: Yes
Infrared System: 2 x Infrared LED, 30m range, Auto/manual on/off control
Lens Type: Fixed
Lens / Iris: 2.8mm F2.0 Fixed Lens
Field of View: Horizontal: 105°, Vertical: 56°
Focus: Fixed, 1.0m Min. Focus Distance
(Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.)
Detect (25px/m): 75m
Observe (63px/m): 30m
Recognise (125px/m): 15m
Identify (250px/m): 7m
Resolution: 8.0MP (3840 x 2160) to CIF (352 x 288)
Frame Rate (Main): 8.0MP (1 ~ 15fps) / 4.0MP (1 ~ 25fps)
Frame Rate (Sub): D1 (1 ~ 25fps)
Frame Rate (Third): N/A
Video Compression: H.265+ / H.265 / H.264+ / H.264 / MJPEG
Bit Rate: H.265: 12 ~ 8192Kbps / H.264: 32 ~ 8192Kbps
Bit Rate Control: Constant bit rate (CBR) / Variable bit rate (VBR)
Day/Night: Auto (ICR) / Color / B&W
Lighting Compensation: BLC / HLC / True WDR (120dB)
Smart Scene Adaptive (SSA): No
White Balance: Auto / Natural / Street Lamp / Outdoor / Manual / Regional Custom
Gain Control: Auto / Manual
Noise Reduction: 3D DNR
Picture Control: Mirror / Flip (0°, 90°, 180°, 270°) (Resolution must be at 4.0MP or lower for corridor mode)
IVS: Yes
Intelligent Functions: Tripwire, Intrusion, Motion Detection (4 zones), Region of Interest (4 zones), Privacy Masking (4 zones), Smart Infrared
Ethernet: RJ-45 (10/100Base-T)
Protocol: IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; Bonjour
Streaming Method: Unicast / Multicast
Max. User Access: 20 Users
RTMP Support: No
Video Interface: N/A
Audio Interface: Built-in Microphone / Audio Compression: G.711A; G.711Mu; G.726; AAC
Alarm Interface: N/A
RS485: N/A
Edge Storage: FTP / SFTP / NAS / Micro SD Card (supports max. 256GB)
Interoperability: ONVIF Profile S, G & T / CGI / P2P / Milestone / Genetec
Power Supply: 12VDC / PoE (802.3af)
Power Consumption: <7.2W
Operating Conditions: -40° ~ +60° C / Less than 95% RH
Ingress Protection: IP67
Weather Resistance: Yes
Vandal Resistance: N/A
Series: Compact Series
Camera Type: Turret
Housing: Metal
Pan/Tilt/Rotation: Pan: 0° ~360 °; Tilt: 0° ~78°; Rotation: 0° ~360°
Tri-Axis Mounting: Yes
ePoE: No

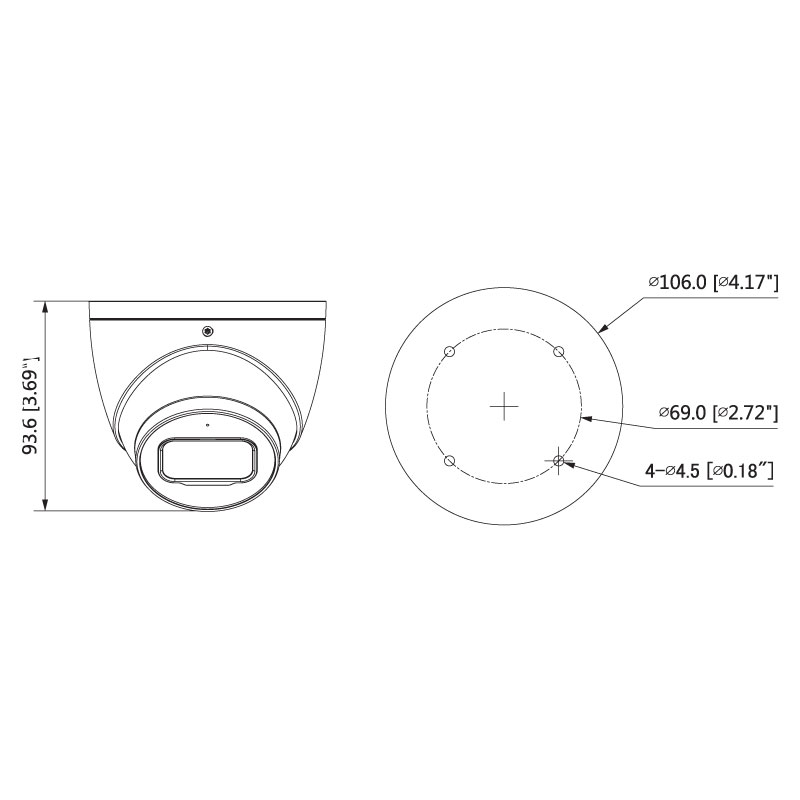

Dimensions: 94mm x Ø106mm
Net Weight: 0.53kg
Warranty (Years): 4
Shipping Weight and Dimensions
Includes product packaging
Width: 156 mm
Height: 156 mm
Depth: 137 mm
Weight: 0.61 kg
