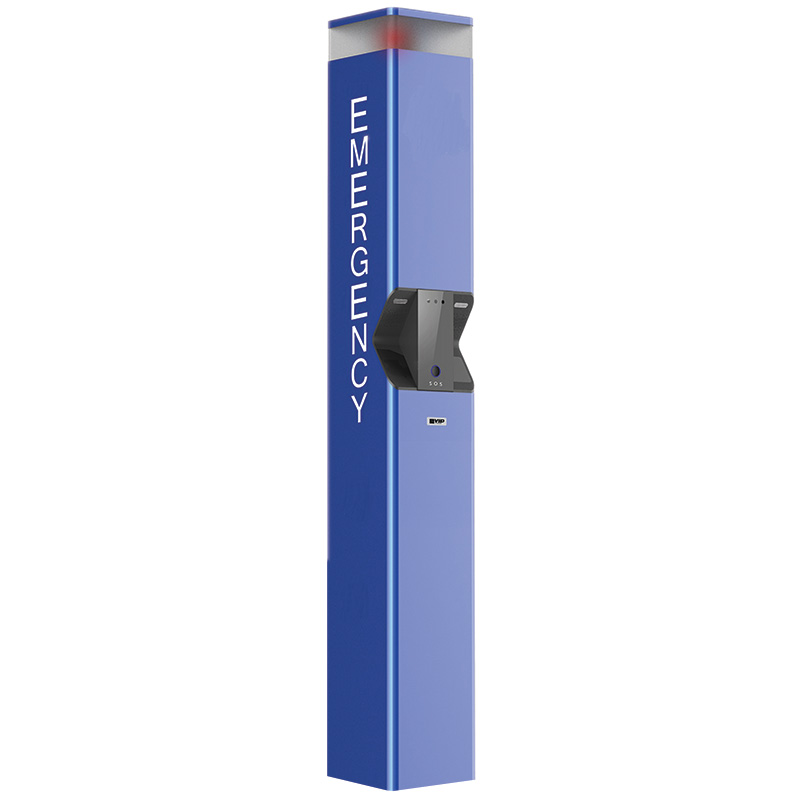

Create pronounced emergency contact points with the ECP100 Emergency Phone Tower. This IP phone features advanced setup options via web configuration and security system integration with alarms, RFID cards and more.
Product features:
• Instantly contact emergency stations with one button
• Built-in microphone & speaker for two-way audio talk
• HD 1.3MP pinhole camera with day/night colour
• Alarm input integration with built-in strobe light
• Web configuration via VIP Vision™ Config Tool
• 3G/4G, WiFi, IP camera & IP PTZ compatibility
• Built-in microSD storage up to 64GB
• Steel IP65/IK10 weather/vandal resistant housing
SPECIFICATIONS
3G/4G: Support
Alarm Interface: 1 Input / 1 Output
Audio Compression: G.711
Audio Input: Omnidirectional Mic
Audio Output: Built-in Speaker
Bidirectional Talk: Support Dual-way Bidirectional talk
Day/Night: Auto (ICR) / Color / B&W
Dimensions: 2400 x 340 x 330mm
Edge Storage: MicroSD Card (up to 64GB)
Effective Pixels: 1280 (H) x 1024 (V)
Ethernet: 10M/100Mbps Self-adaptive
Fibre: 100M/1000Mbps Self-adaptive
Housing: SGCC Steel
Image Sensor: 1/1.3” 1.3MP CMOS
Ingress Protection: IP65
IP Dome: Support
IP PTZ: Support
Keypad: Single Mechanical Button
Lens: Pinhole
Main Processor: Embedded Microprocessor
Operating Conditions: -30° ~ +60° C / Less than 90% RH
Operating System: Embedded LINUX OS
Power Consumption: ≤3W (Standby) / ≤80W (Active)
Power Supply: 100-240VAC @ 47-63Hz
Protocol: TCP/IP
Reader: Mifare Card
Tamper Switch: 2
Vandal Resistance: IK10
Weight: 100kg
WiFi: Support
Warranty (Years): 4
Shipping Weight and Dimensions
Includes product packaging
Width: 340 mm
Height: 2,400 mm
Depth: 330 mm
Weight: 100.00 kg
