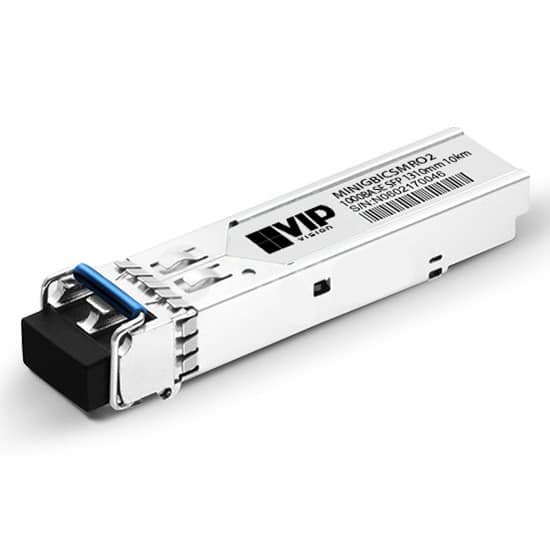

The SFPSM1 is a compact, hot-pluggable SFP module for linking high speed optical fibre infrastructure to a network. Easily configure and upgrade networks for high-speed networking over optical fibre, with a bit rate of up to 1.25Gbps.
Product features:
• Mini GBIC / SFP optical fibre adapter
• Transfer data over optical fibre at up to 1.25Gbps
• SFP (Small Form-factor Pluggable)
• Compatible with SMF (single mode fibre)
• 1310nm VCSEL laser transmitter
• Hot-pluggable, allowing for installation and removal while the system is running
• Built-in digital diagnostic functions, including optical power monitoring
Installed in the 1000 Base-X (Combo port) SFP ports of VIP Vision PoE switches.
Specifications
Interface
Cable Type: Single-mode Fibre
Form Type: SFP (Small Form-factor Pluggable)
Interface: LC duplex
DOM Support: Yes
Max Bit Rate: 1.25Gb/s
Transmitter / Receiver
TX Power: -9.5 ~ -3dBm
Protocols: SFF-8472 MSA Compliant, IEEE 802.3ah-2004, ANSI Fibre Channel
Wavelength: 1310nm
Receiver Sensitivity: < -21dBm
Environment
Power Supply: 3.3VDC / 300mA
Operating Environment: -40 to 85°C / RH95% (max)
Other
Max Cable Distance: 10km
Warranty (Years): 1
Shipping Weight and Dimensions Includes product packaging
Width: 59 mm
Height: 12 mm
Depth: 12 mm
Weight: 0.03 kg
Additional information
| Manufacturer | |
|---|---|
| Weight | 0.03 |
