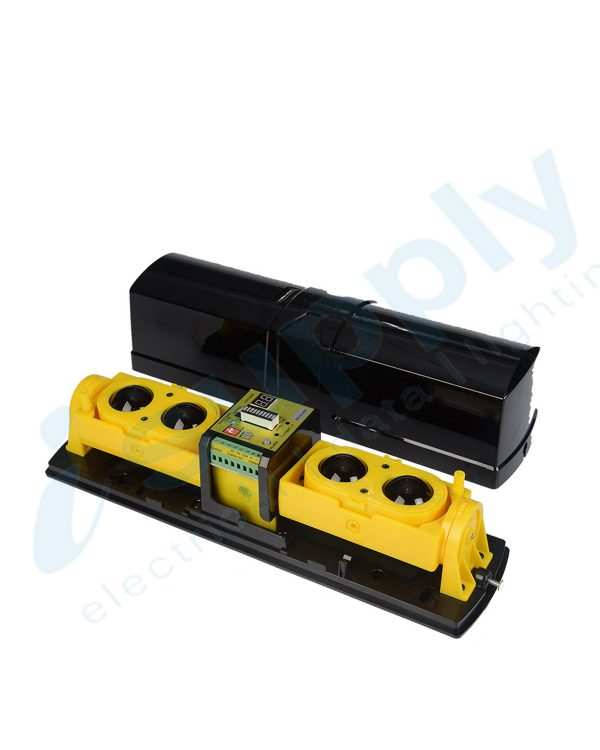

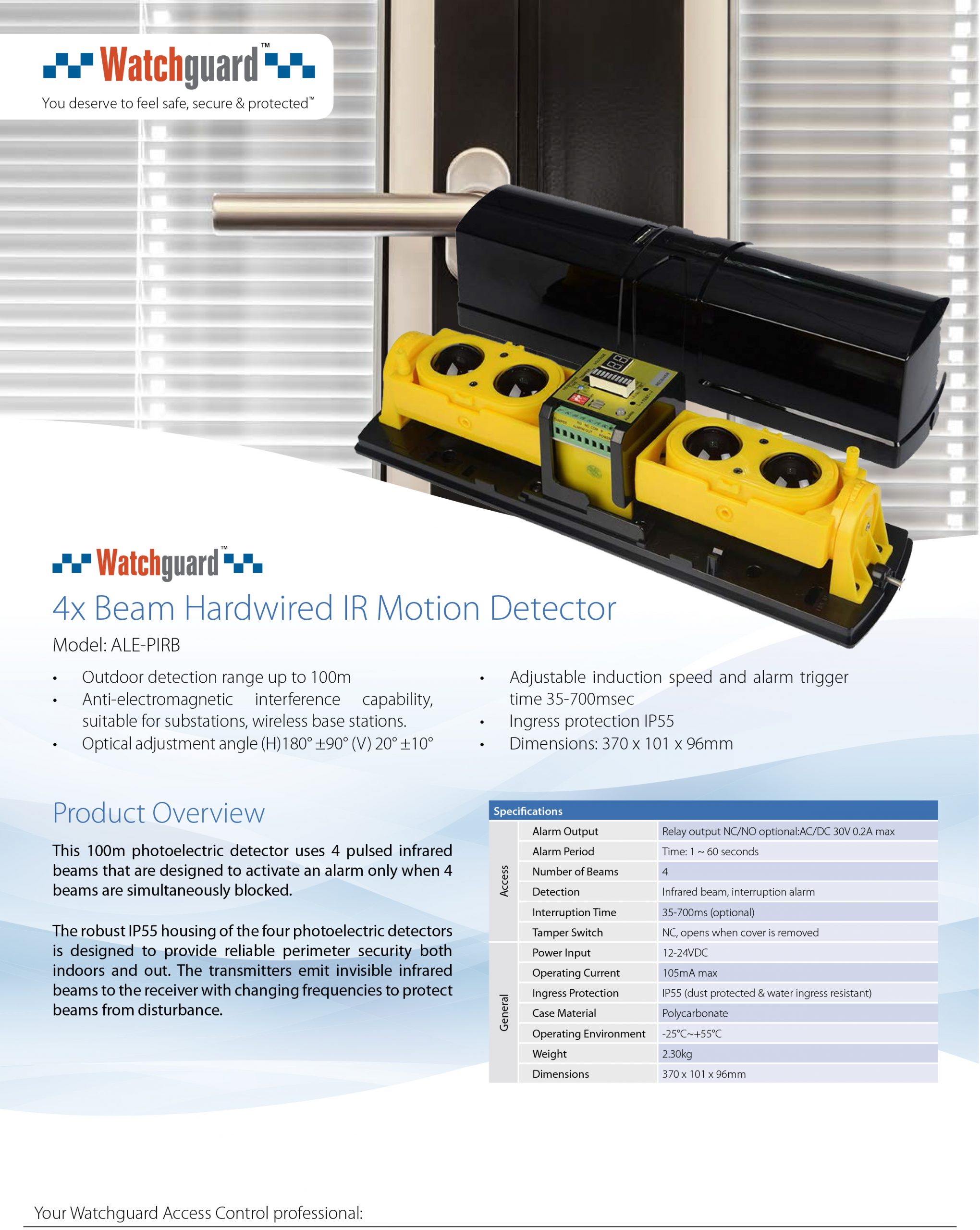

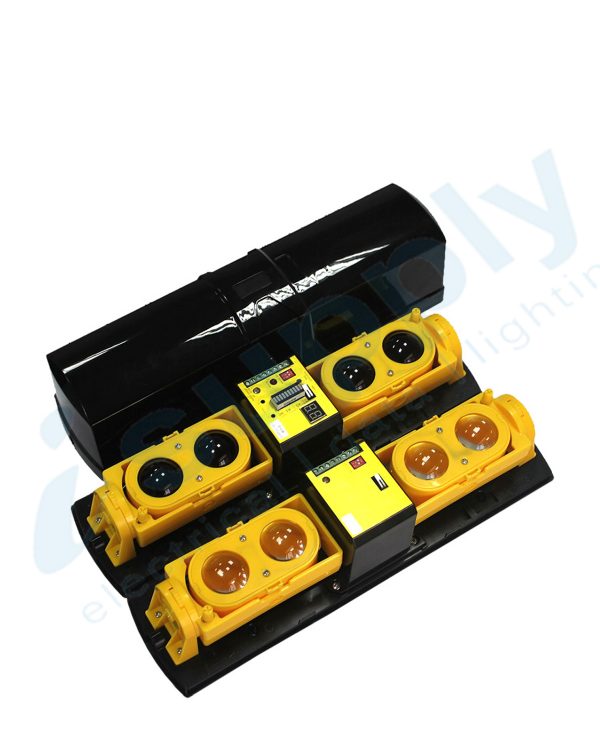

This 100m photoelectric detector uses 4 pulsed infrared beams that are designed to activate an alarm only when 4 beams are simultaneously blocked.
The robust IP55 housing of the four photoelectric detectors is designed to provide reliable perimeter security both indoors and out. The transmitters emit invisible infrared beams to the receiver with changing frequencies to protect beams from disturbance.
Product features:
• Outdoor detection range up to 100m
• Anti-electromagnetic interference capability, suitable for substations, wireless base stations.
• Adjustable induction speed and alarm trigger time 35-700msec
• Optical adjustment angle (H)180° ±90° (V) 20° ±10°
• Ingress protection: IP55
• Dimensions: 370 x 101 x 96mm
SPECIFICATIONS
Alarm Output: Relay output NC/NO optional:AC/DC 30V 0.2A max
Alarm Period: 2s
Beam: 4
Case Material: PC
Certificate: CE certificated
Contact Capacity: AC/DC 30V 0.2A max
Detection: Infrared beam, interruption alarm
Dimensions: 370 x 101 x 96mm
Interruption Time: 35-700ms (optional)
Operating temperature: -25°C~+55°C
Power: 12-24VDC
Tamper Switch: NC, opens when cover is removed
Type: Motion Sensor
Waterproof Grade: IP55
Working Current: 105mA max
Warranty (Years): 2
Shipping Weight and Dimensions
Includes product and packages
Width: 85mm
Height: 360mm
Depth: 90mm
Weight: 2.30kg
Additional information
| Manufacturer | |
|---|---|
| Weight | 2.3 |
